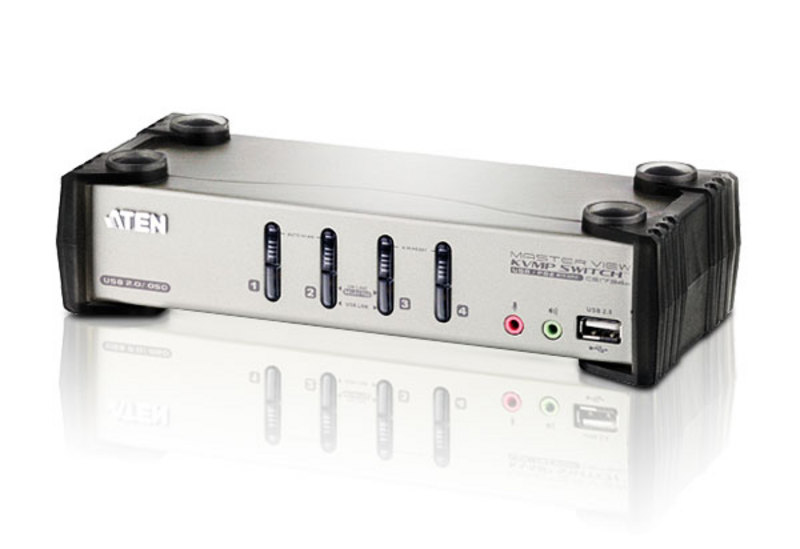

ATEN 4 PORT USB 2.0 VGA KVMP SWITCH
Networking > Network Accessories
- Brand: ATEN
- Category: Switches
- SKU: CS1734B-AT-U
- MPN: CS1734B-AT-U
−7%
Overview
The CS1734B is 4-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access four computers from a single keyboard, monitor, and mouse console. There are four methods to obtain instant access to any computer in your installation: Pushbuttons, Hotkeys, OSD, and mouse.
1x CS1734B 4-Port USB 2.0 KVMP™ Switch
2x 2L-5301U USB KVM Cables (1.2m)
2x 2L-5302U USB KVM Cables (1.8m)
2x OSD/Hotkey Stickers
1x LIN5-04A2-J13G Firmware Upgrade Cable
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
1x CS1734B 4-Port USB 2.0 KVMP™ Switch
2x 2L-5301U USB KVM Cables (1.2m)
2x 2L-5302U USB KVM Cables (1.8m)
2x OSD/Hotkey Stickers
1x LIN5-04A2-J13G Firmware Upgrade Cable
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
Key features
- Number of computers controlled: 4
- Keyboard port type: USB, PS/2
- Mouse port type: USB, PS/2
- Video port type: VGA
- VGA (D-Sub) ports quantity: 1
- Console ports: 3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub)
- Console USB ports quantity: 2
- USB hub: Yes
- USB 2.0 Type-A hub ports quantity: 2
- Audio connections: Yes
- Headphone outputs: 6
- Number of microphone inputs: 6
- HD type: QXGA
- Maximum resolution: 2048 x 1536 pixels
- Video bandwidth: 60 Hz
- Scan interval: 1,255 s
- DDC2B support: Yes
- Firmware upgradeable: Yes
- Product colour: Black, Metallic
- Housing material: Metal
- Push button: Yes
- Hot keys: Yes
- Built-in display: No
- On Screen Display (OSD): Yes
Specifications
Power
| Power source | DC |
|---|---|
| Input voltage | 5 V |
| Power consumption (typical) | 1.02 W |
Design
| Product colour | Black, Metallic |
|---|---|
| Housing material | Metal |
| Push button | Yes |
| Hot keys | Yes |
Display
| Built-in display | No |
|---|---|
| On Screen Display (OSD) | Yes |
Performance
| HD type | QXGA |
|---|---|
| Maximum resolution | 2048 x 1536 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,255 s |
| DDC2B support | Yes |
| Firmware upgradeable | Yes |
Packaging data
| Package width | 100 mm |
|---|---|
| Package depth | 283 mm |
| Package height | 173 mm |
| Package weight | 2.09 kg |
Packaging content
| Cables included | KVM, USB |
|---|
Ports & interfaces
| Number of computers controlled | 4 |
|---|---|
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 1 |
| Console ports | 3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub) |
| Console USB ports quantity | 2 |
| USB hub | Yes |
| USB 2.0 Type-A hub ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 6 |
| Number of microphone inputs | 6 |
Weight & dimensions
| Width | 88 mm |
|---|---|
| Depth | 210 mm |
| Height | 55.5 mm |
| Weight | 1.95 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
