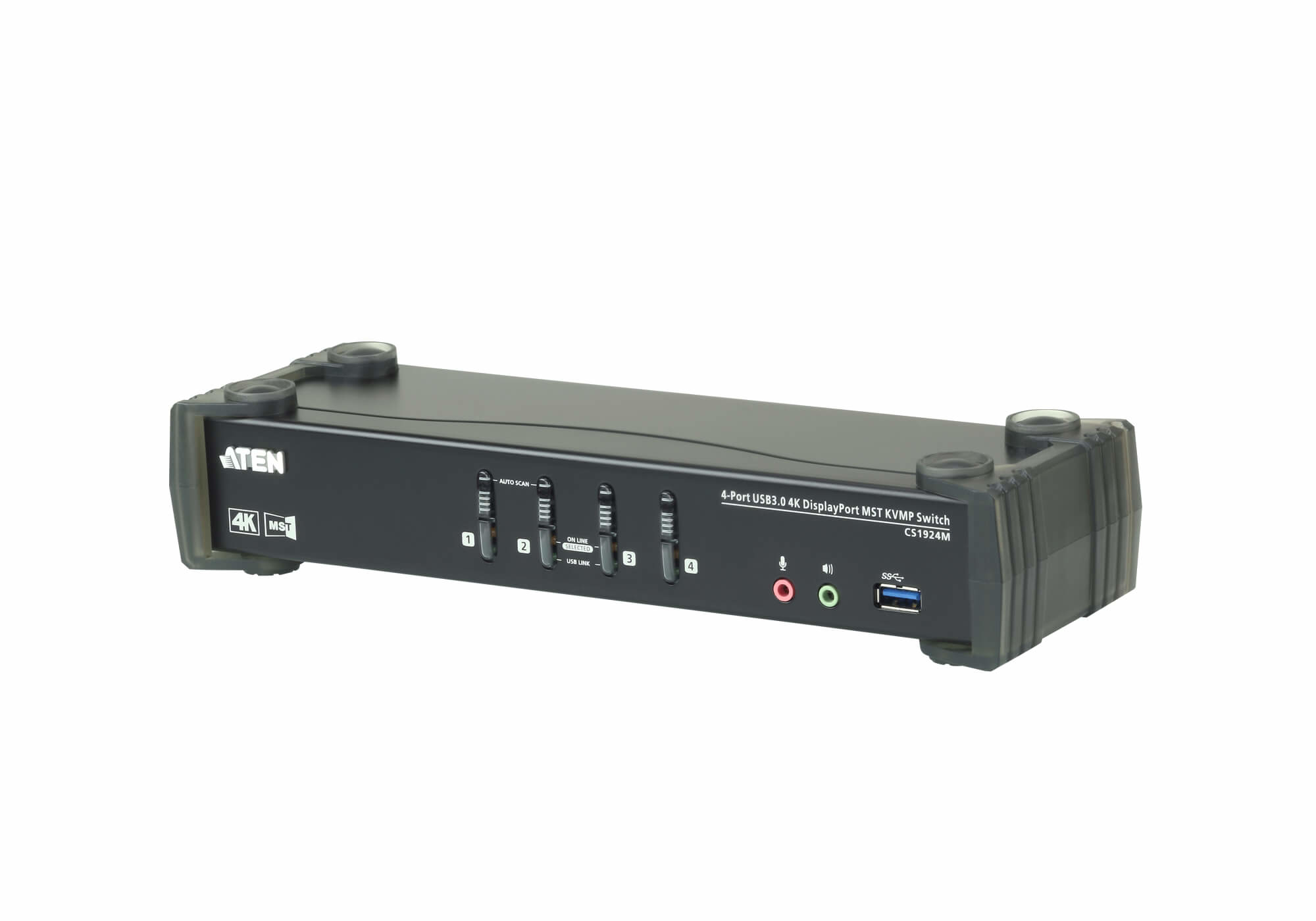

Incorporating the latest Multi-Stream Transport (MST) technology, the CS1924M 4-Port USB 3.0 4K DisplayPort MST KVMP™ Switch is the world's first DisplayPort KVM switch with a built-in MST hub. The CS1924M enables users to adopt two console displays from a single DisplayPort 1.2 video source, providing an extended desktop mode and splitter mode at resolutions up to 4K for multitasking across two displays while reducing bulky cable connections. 1x 4-Port USB 3.0 4K DisplayPort MST KVMP™ Switch 4x LIN5-20K1-K13G DisplayPort 1.2 Cables (1.5m/5ft) 4x LIN6-11C1-E12G USB Cables (USB 3.0-A to USB 3.0-B; 1.8m/6ft) 8x LIN5-0205-21DG/CD Audio Cables (1.8m/6ft) 1x LIN2-418K-E12G / 0AD8-8005-40MG Power Adapter 1x User Instructions
Key features
Number of computers controlled: 4
Keyboard port type: USB
Mouse port type: USB
Video port type: HDMI
DisplayPorts quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 2
Console ports: 3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A
Console USB ports quantity: 2
USB hub: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 2
USB connector type: USB Type-A, USB Type-B
Audio connections: Yes
Headphone outputs: 6
Number of microphone inputs: 6
DC-in jack: Yes
HD type: 4K Ultra HD
Maximum resolution: 4096 x 2160 pixels
Video bandwidth: 60 Hz
Scan interval: 1,5,99 s
Product colour: Black
Housing material: Metal, Plastic
LED indicators: Yes
Push button: Yes
Hot keys: Yes
Specifications
Power
Power source
DC
Input voltage
5 V
Power consumption (typical)
4.89 W
Design
Product colour
Black
Housing material
Metal, Plastic
LED indicators
Yes
Push button
Yes
Hot keys
Yes
Display
Built-in display
No
Performance
HD type
4K Ultra HD
Maximum resolution
4096 x 2160 pixels
Video bandwidth
60 Hz
Scan interval
1,5,99 s
Logistics data
Master (outer) case net weight
10.1 kg
Harmonized System (HS) code
85176200
Master (outer) case width
342 mm
Master (outer) case length
512 mm
Master (outer) case height
232 mm
Master (outer) case gross weight
13.7 kg
Products per master (outer) case
5 pc(s)
Packaging data
Package width
98 mm
Package depth
325 mm
Package height
210 mm
Package weight
2.56 kg
Packaging content
Quick installation guide
Yes
Manual
Yes
Ports & interfaces
Number of computers controlled
4
Keyboard port type
USB
Mouse port type
USB
Video port type
HDMI
DisplayPorts quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
2
Console ports
3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A
Console USB ports quantity
2
USB hub
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
