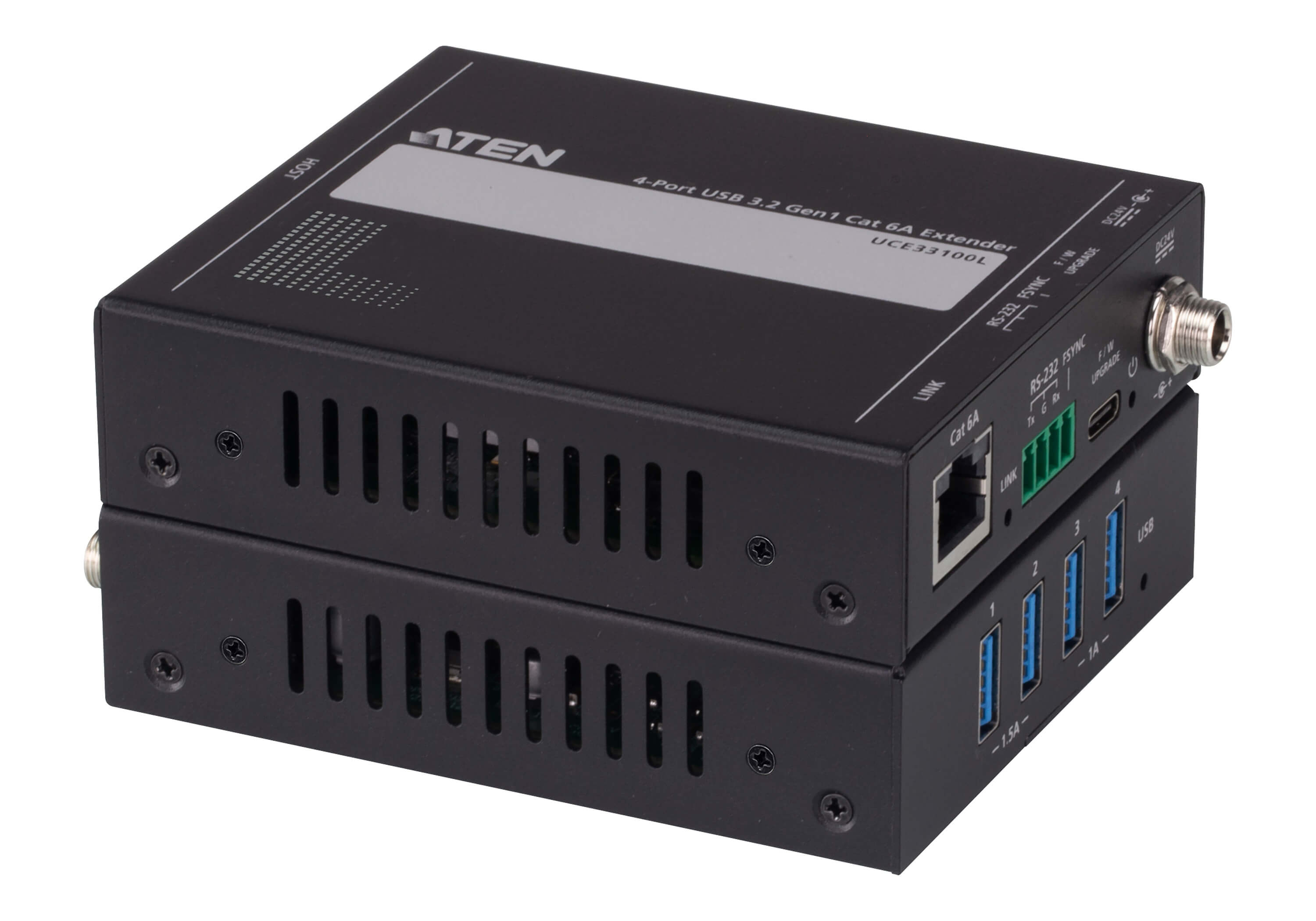

ATEN 4-PORT USB 3.2 GEN 1 CAT 6A EXTENDER (UP TO 100 M)
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: UCE33100-AT-B
- MPN: UCE33100-AT-B
−8%
Overview
As the scope of meeting rooms continually evolves, it’s critical that we keep pace and maintain fast data transmission that extends to a longer distance should the occasion arise. In such cases, the UCE33100 becomes your perfect partner as it extends your USB connectivity across a distance of up to 100 m over a Cat 6A cable to assure a smooth meeting experience and contribute toward your overall operational efficiency at the office.
5 Gbps High-Speed Data Transmission over 100 m
Transmit USB 3.2 data at an ultra-high 5 Gbps speed spanning a distance up to 100 m with a Cat 6A cable*. (Product recommendation: 2L-29330)
4 X USB Type-A Ports for Plug-n-Play Peripheral Connections
Enhance the resourcefulness of the extender by tapping into its 4 USB type-A ports and have a wide range of peripherals at your disposal.
PoC Power Supply for Ultimate Usability Convenience
Either the local or remote unit could be plugged into a power source, powered by just a Cat 6A connection cable.
Easily Mountable for Versatile Deployment
For added ease of installation and expansion, a mounting kit is provided as a resourceful accessory to facilitate easy and convenient installation.
Applications
The additional length afforded by the extender (up to 100 m) means it can be a worthwhile versatile addition to the various spacious applications below:
- Conference/Education
- Industrial Control/Healthcare
5 Gbps High-Speed Data Transmission over 100 m
Transmit USB 3.2 data at an ultra-high 5 Gbps speed spanning a distance up to 100 m with a Cat 6A cable*. (Product recommendation: 2L-29330)
4 X USB Type-A Ports for Plug-n-Play Peripheral Connections
Enhance the resourcefulness of the extender by tapping into its 4 USB type-A ports and have a wide range of peripherals at your disposal.
PoC Power Supply for Ultimate Usability Convenience
Either the local or remote unit could be plugged into a power source, powered by just a Cat 6A connection cable.
Easily Mountable for Versatile Deployment
For added ease of installation and expansion, a mounting kit is provided as a resourceful accessory to facilitate easy and convenient installation.
Applications
The additional length afforded by the extender (up to 100 m) means it can be a worthwhile versatile addition to the various spacious applications below:
- Conference/Education
- Industrial Control/Healthcare
Key features
- Type: Network transmitter & receiver
- Maximum transfer distance: 100 m
- Cable types supported: Cat6a
- Ethernet LAN (RJ-45) ports: 2
- RJ-45 ports quantity (transmitter): 1
- USB Type-C ports quantity (transmitter): 1
- USB Type-C ports quantity (receiver): 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- DC-in jack: Yes
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
- Power consumption (typical): 2.64 W
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 20 - 90%
- Width: 85 mm
- Depth: 107.5 mm
- Height: 25.5 mm
- Weight: 260 g
Specifications
Power
| Power consumption (typical) | 2.64 W |
|---|
Design
| Product colour | Black |
|---|---|
| Housing material | Metal |
| LED indicators | Yes |
Performance
| Type | Network transmitter & receiver |
|---|---|
| Maximum transfer distance | 100 m |
| Cable types supported | Cat6a |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 2 |
|---|---|
| RJ-45 ports quantity (transmitter) | 1 |
| USB Type-C ports quantity (transmitter) | 1 |
| USB Type-C ports quantity (receiver) | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| DC-in jack | Yes |
Weight & dimensions
| Width | 85 mm |
|---|---|
| Depth | 107.5 mm |
| Height | 25.5 mm |
| Weight | 260 g |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
