ATEN 4 PORT USB KVMP VGA SWITCH WITH AUDIO Networking > Network Accessories

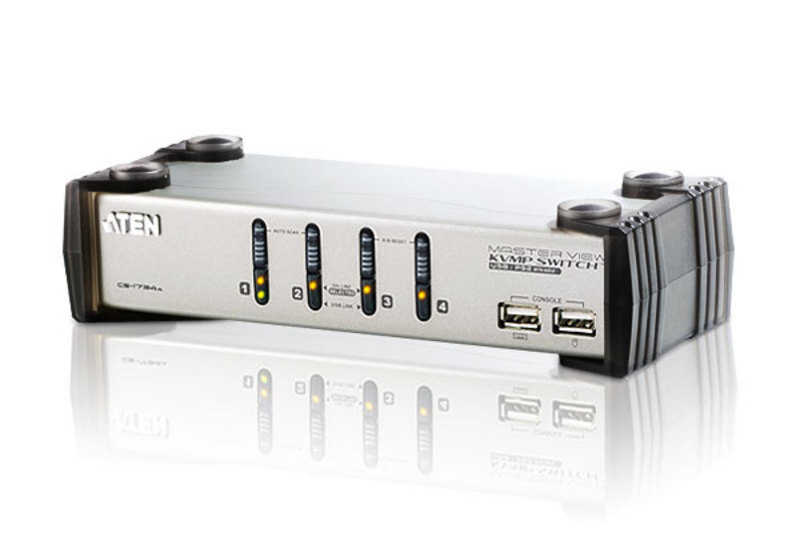

Brand: ATEN Category: Switches SKU: CS1734AC-AT MPN: CS1734AC-AT Home Switches ATEN ATEN ATEN CS1734AC-AT KVM switch Black, Silver Overview Specifications Questions Overview CS1734A KVM Switch has built-in USB on each of the front and rear panels and audio signal connectors. It allows users to control the computer and peripheral devices via a signal console at ease.
Key features Number of computers controlled: 4 Keyboard port type: USB Mouse port type: USB Video port type: VGA VGA (D-Sub) ports quantity: 5 Console ports: 3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub) Console USB ports quantity: 2 USB hub: Yes USB 2.0 Type-A hub ports quantity: 2 Audio connections: Yes Headphone outputs: 5 Number of microphone inputs: 5 DC-in jack: Yes HD type: QXGA Maximum resolution: 2048 x 1536 pixels Scan interval: 1,99 s Auto scan delay (min): 1 s Auto scan delay (max): 99 s DDC2B support: Yes Firmware upgradeable: Yes Product colour: Black, Silver Housing material: Metal LED indicators: Yes Push button: Yes At a glance Power source AC Input voltage 5 V Power consumption (typical) 1.02 W Product colour Black, Silver Housing material Metal LED indicators Yes Push button Yes Hot keys Yes
All 39 specifications Specifications Power Power source AC Input voltage 5 V Power consumption (typical) 1.02 W
Design Product colour Black, Silver Housing material Metal LED indicators Yes Push button Yes Hot keys Yes
Performance HD type QXGA Maximum resolution 2048 x 1536 pixels Scan interval 1,99 s Auto scan delay (min) 1 s Auto scan delay (max) 99 s DDC2B support Yes Firmware upgradeable Yes
Packaging content Cables included KVM Manual Yes
Ports & interfaces Number of computers controlled 4 Keyboard port type USB Mouse port type USB Video port type VGA VGA (D-Sub) ports quantity 5 Console ports 3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub) Console USB ports quantity 2 USB hub Yes USB 2.0 Type-A hub ports quantity 2 Audio connections Yes Headphone outputs 5 Number of microphone inputs 5 DC-in jack Yes
Weight & dimensions Width 210 mm Depth 88 mm Height 55.5 mm Weight 780 g
Operational conditions Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 0 - 80% Storage relative humidity (H-H) 0 - 80%
$218.49 inc GST
