ATEN 4 PORT USB VGA KVM SWITCH Networking > Network Accessories

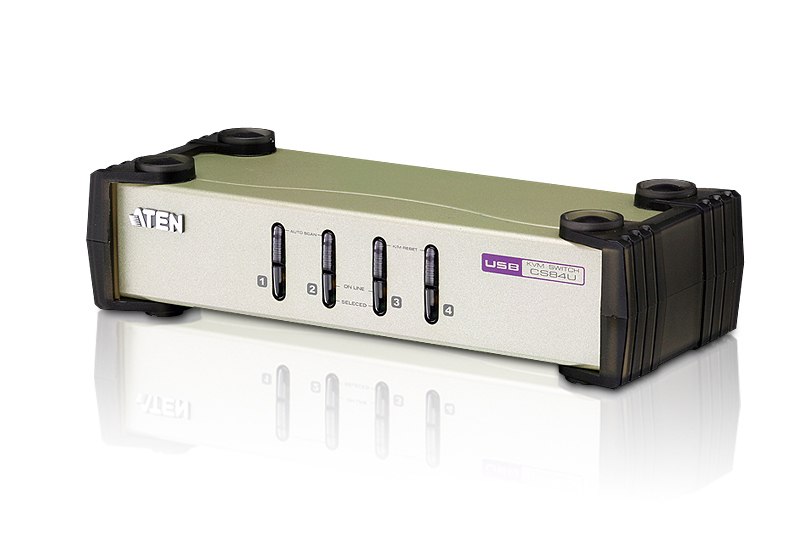

Brand: ATEN Category: Switches SKU: CS84U-AT MPN: CS84U-AT Home Switches ATEN ATEN ATEN 4-Port USB - PS/2 VGA KVM Switch (KVM Cables included) Overview Specifications Questions Overview The CS84U PS/2-USB KVM Switch is a desktop control unit that allows users to access four computers from a single KVM console (PS/2 or USB keyboard and mouse, and VGA monitor). In addition, CS84U comes with ATEN's new Video DynaSync™ technology, which eliminates boot-up display problems and optimizes resolution.
Key features Number of computers controlled: 4 Keyboard port type: USB Mouse port type: USB Video port type: VGA VGA (D-Sub) ports quantity: 4 Console ports: USB A, VGA (D-Sub) USB 2.0 Type-A hub ports quantity: 2 USB connector type: USB Type-A DC-in jack: Yes HD type: QXGA Maximum resolution: 2048 x 1536 pixels Video bandwidth: 60 Hz Scan interval: 3,5,10,20 s DDC2B support: Yes Rack mounting: No Product colour: Black, Grey Housing material: Metal LED indicators: Yes Push button: Yes Hot keys: Yes Built-in display: No Power source: DC Input voltage: 5 V Power consumption (typical): 0.45 W At a glance Power source DC Input voltage 5 V Power consumption (typical) 0.45 W Rack mounting No Product colour Black, Grey Housing material Metal LED indicators Yes Push button Yes
All 45 specifications Specifications Power Power source DC Input voltage 5 V Power consumption (typical) 0.45 W
Design Rack mounting No Product colour Black, Grey Housing material Metal LED indicators Yes Push button Yes Hot keys Yes
Performance HD type QXGA Maximum resolution 2048 x 1536 pixels Video bandwidth 60 Hz Scan interval 3,5,10,20 s DDC2B support Yes
Logistics data Master (outer) case net weight 7.57 kg Harmonized System (HS) code 85176200 Master (outer) case width 292 mm Master (outer) case length 517 mm Master (outer) case height 194 mm Master (outer) case gross weight 8.98 kg Products per master (outer) case 5 pc(s)
Packaging data Package width 100 mm Package depth 283 mm Package height 173 mm Package weight 1.69 kg
Packaging content Quick installation guide Yes Manual Yes
Ports & interfaces Number of computers controlled 4 Keyboard port type USB Mouse port type USB Video port type VGA VGA (D-Sub) ports quantity 4 Console ports USB A, VGA (D-Sub) USB 2.0 Type-A hub ports quantity 2 USB connector type USB Type-A DC-in jack Yes
Weight & dimensions Width 210 mm Depth 88 mm Height 55.5 mm Weight 1.51 kg
Operational conditions Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 0 - 80% Storage relative humidity (H-H) 0 - 80%
$248.39 inc GST
