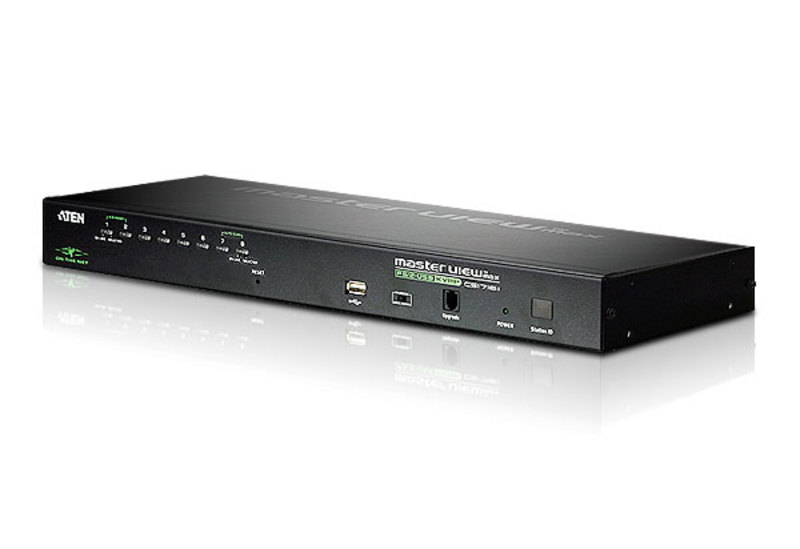

ATEN 8-Port USB - PS/2 VGA KVM Over IP Switch with USB Peripheral port

Our SKU
MPN
Barcode
Rating: No reviews yet

ATEN 8 PORT PS/2-USB 2.0 KVMP SWITCH OVER IP — ATEN

Overview

The CS1708i is an 8-port KVM switch in a 1U housing for convenient rack mounting. This device allows system administrators to access the attached servers both locally and over IP (LAN and/or WAN). CS1708i works platform independent and supports e.g. Windows, Linux, MAC, SUN

The special KVM cables and the Aten feature “Video DynaSync", makes sure that an optimal video resolution can be maintained. In addition it's easy to expand the KVM installation. By using Daisy Chain cables the number of accessible servers can be increased up to 128.
1x CS1708i KVM over IP Switch
1x 2L-5202P PS/2 KVM Cable
1x 2L-5202U USB KVM Cable
1x LIN5-27X6-U21G Console Cable
1x Firmware Upgrade Cable
1x Mounting Kit
1x Foot Pad Set (4 pcs)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions

Key features

Number of computers controlled: 128
Keyboard port type: USB, PS/2
Mouse port type: USB, PS/2
Video port type: VGA
Console ports: VGA (D-Sub)
Console USB ports quantity: 1
USB connector type: USB Type-A
DC-in jack: Yes
Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Security algorithms: 128-bit RC4, RSA, SSL/TLS
HD type: QXGA
Maximum resolution: 2048 x 1536 pixels
Scan interval: 1,255 s
DDC2B support: Yes
Hot-Plug support: Yes
Daisy chain: Yes
Number of users: 32 user(s)
Firmware upgradeable: Yes
Rack mounting: Yes
Rack capacity: 1U
Product colour: Black
Housing material: Metal
LED indicators: Yes

Specifications

Power

Power source	DC
Input voltage	5.3 V
Power consumption (typical)	9.5 W

Design

Rack mounting	Yes
Rack capacity	1U
Product colour	Black
Housing material	Metal
LED indicators	Yes
Push button	Yes
Hot keys	Yes

Display

Built-in display	No
On Screen Display (OSD)	Yes

Network

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit RC4, RSA, SSL/TLS

Performance

HD type	QXGA
Maximum resolution	2048 x 1536 pixels
Scan interval	1,255 s
DDC2B support	Yes
Hot-Plug support	Yes
Daisy chain	Yes
Number of users	32 user(s)
Firmware upgradeable	Yes

Logistics data

Master (outer) case net weight	10.3 kg
Harmonized System (HS) code	85176200
Master (outer) case width	375 mm
Master (outer) case length	565 mm
Master (outer) case height	258 mm
Master (outer) case gross weight	12.1 kg
Products per master (outer) case	3 pc(s)

Packaging data

Package width	116 mm
Package depth	540 mm
Package height	233 mm
Package weight	3.83 kg

Sustainability

Compliance certificates	RoHS

Packaging content

Cables included	DC, KVM
Quick installation guide	Yes
Manual	Yes
Software included	Yes
Rack mount kit	Yes

Ports & interfaces

Number of computers controlled	128
Keyboard port type	USB, PS/2
Mouse port type	USB, PS/2
Video port type	VGA
Console ports	VGA (D-Sub)
Console USB ports quantity	1
USB connector type	USB Type-A
DC-in jack	Yes

System requirements

Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes

Weight & dimensions

Width	437.2 mm
Depth	159.6 mm
Height	44 mm
Weight	3.42 kg

Operational conditions

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%

Questions
