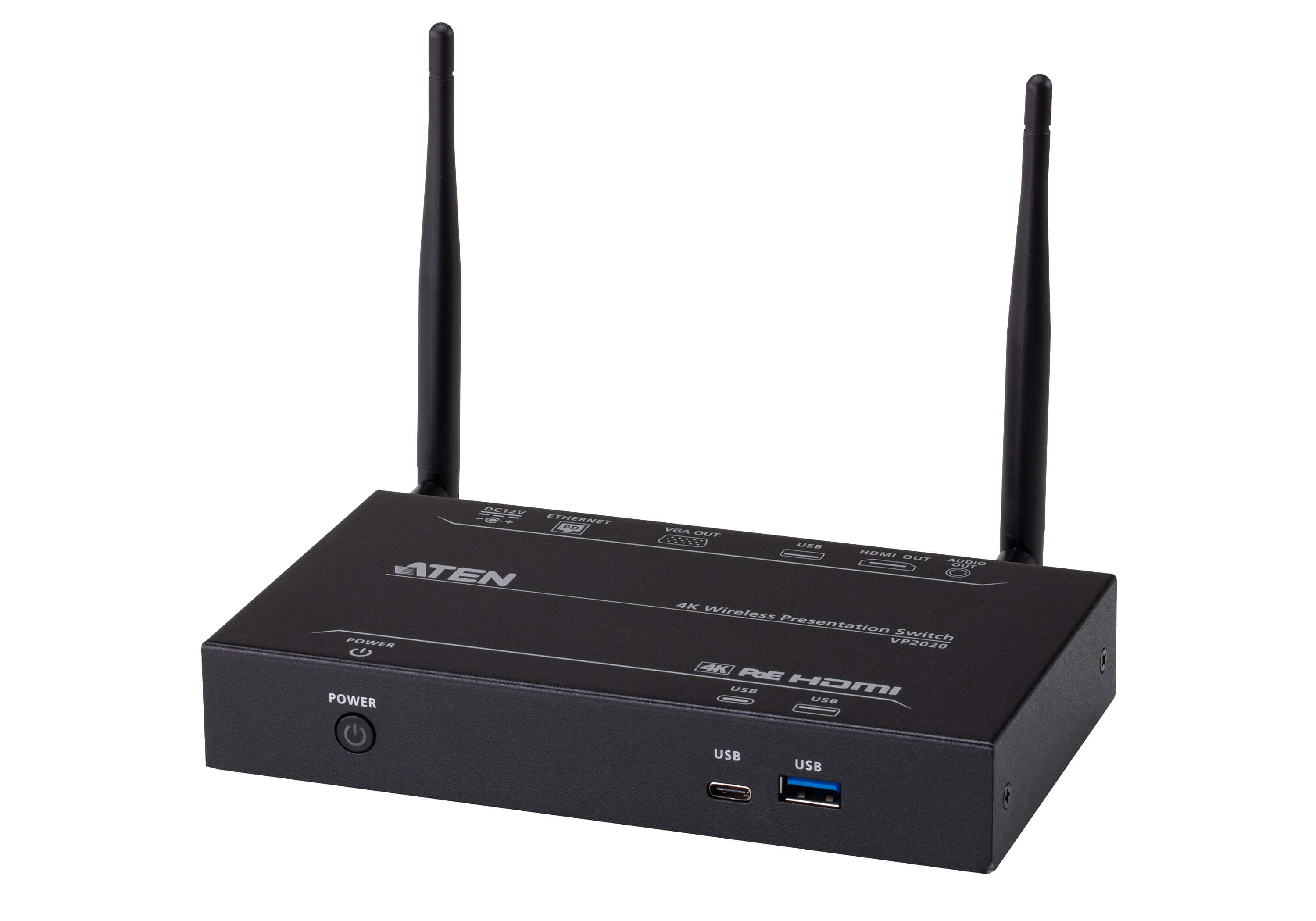

ATEN DUAL-VIEW 4K PRESENTATION SWITCH WITH POE AND USB TOUCH BACK
Networking > Network Accessories
- Brand: ATEN
- Category: Switches
- SKU: VP2020-AT-U
- MPN: VP2020-AT-U
−17%
Overview
ATEN PresentON™ VP2020 is a wireless BYOD solution that enables anyone, including visitors, to easily share content from any laptop or mobile device so that participants can actively collaborate for enhanced, efficient workflows.
The VP2020 features Multi-view and audio out, which are designed to increase content-sharing flexibility. Moreover, it is equipped with USB touch back and moderation mode functions, allowing presenters to easily control meetings. In addition, its PoE connectivity makes installation easy. It’s perfectly suited for both huddle spaces and large meeting spaces and is flexible enough for corporate or education use.
Start Multi-party Collaboration Instantly
Simultaneous display of different presentations from different sources enables teams to rapidly engage in discussions, brainstorm ideas, and increase creativity and collaboration.
BYOD Wireless Sharing without Limitations
Wirelessly share BYOD presentation content with ATEN software on PC, mobile apps, and web browsers; compatible with Airplay* and Google Cast* for unlimited sharing and collaboration.
Get Control on Your Side with USB Touch Back
USB Touch Back can control remote laptops with a mouse or touchscreen, allowing the speaker to take the lead in meetings and be more efficient without having to move about just to access devices.
Manage Shared Content with Moderation Mode
Moderation Mode allows presenters to easily control and manage the content shared by other participants, including muting, stopping all sharing, and disconnecting a participant.
Flexible & Clear: Audio Your Way
With 3.5 mm audio output to increase the flexibility of use, not only is meeting audio crystal clear, but also it can be integrated with the audio system to enhance the audio-visual experience.
Faster, Easier Setup means Less Hassel
With PoE, only one network cable is needed for power and information transmission, eliminating complicated wiring and offering flexibility in space deployment and speedy installation.
The VP2020 features Multi-view and audio out, which are designed to increase content-sharing flexibility. Moreover, it is equipped with USB touch back and moderation mode functions, allowing presenters to easily control meetings. In addition, its PoE connectivity makes installation easy. It’s perfectly suited for both huddle spaces and large meeting spaces and is flexible enough for corporate or education use.
Start Multi-party Collaboration Instantly
Simultaneous display of different presentations from different sources enables teams to rapidly engage in discussions, brainstorm ideas, and increase creativity and collaboration.
BYOD Wireless Sharing without Limitations
Wirelessly share BYOD presentation content with ATEN software on PC, mobile apps, and web browsers; compatible with Airplay* and Google Cast* for unlimited sharing and collaboration.
Get Control on Your Side with USB Touch Back
USB Touch Back can control remote laptops with a mouse or touchscreen, allowing the speaker to take the lead in meetings and be more efficient without having to move about just to access devices.
Manage Shared Content with Moderation Mode
Moderation Mode allows presenters to easily control and manage the content shared by other participants, including muting, stopping all sharing, and disconnecting a participant.
Flexible & Clear: Audio Your Way
With 3.5 mm audio output to increase the flexibility of use, not only is meeting audio crystal clear, but also it can be integrated with the audio system to enhance the audio-visual experience.
Faster, Easier Setup means Less Hassel
With PoE, only one network cable is needed for power and information transmission, eliminating complicated wiring and offering flexibility in space deployment and speedy installation.
Key features
- Form factor: Desktop
- Product colour: Black
- Housing material: Metal
- LED indicators: Power
- Maximum resolution (VGA): 1920 x 1080 pixels
- Maximum resolution (HDMI): 4096 x 2160 pixels
- Supported graphics resolutions: 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 3840 x 2160
- AirPlay mirroring: Yes
- Google Cast: Yes
- Number of simultaneously connected devices (max): 2
- Web-based management: Yes
- On/off switch: Yes
- Antenna type: External
- Antennas quantity: 2
- Wi-Fi standards: Wi-Fi 5 (802.11ac)
- Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
- Frequency band: 2.4/5 GHz
- Security algorithms: WEP, WPA, WPA2, WPA2-PSK
- Maximum operating distance: 30 m
- Interface: HDMI + VGA (D-Sub)
- Number of HDMI outputs: 1
- VGA (D-Sub) output ports: 1
- Ethernet LAN (RJ-45) ports: 1
- USB 2.0 ports quantity: 1
Specifications
Power
| Power over Ethernet (PoE) | Yes |
|---|
Design
| Form factor | Desktop |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Power |
Antenna
| Antenna type | External |
|---|---|
| Antennas quantity | 2 |
Network
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
|---|---|
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Frequency band | 2.4/5 GHz |
| Security algorithms | WEP, WPA, WPA2, WPA2-PSK |
| Maximum operating distance | 30 m |
Features
| Maximum resolution (VGA) | 1920 x 1080 pixels |
|---|---|
| Maximum resolution (HDMI) | 4096 x 2160 pixels |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 3840 x 2160 |
| AirPlay mirroring | Yes |
| Google Cast | Yes |
| Number of simultaneously connected devices (max) | 2 |
Logistics data
| Country of origin | Taiwan |
|---|
Packaging content
| AC adapter included | Yes |
|---|---|
| Quick start guide | Yes |
Ports & interfaces
| Interface | HDMI + VGA (D-Sub) |
|---|---|
| Number of HDMI outputs | 1 |
| VGA (D-Sub) output ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Headphone outputs | 1 |
| DC-in jack | Yes |
Management features
| Web-based management | Yes |
|---|---|
| On/off switch | Yes |
Weight & dimensions
| Width | 104 mm |
|---|---|
| Depth | 170 mm |
| Height | 28.3 mm |
| Weight | 470 g |
| Package weight | 1.15 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | -20 - 60% |
| Storage temperature (T-T) | 0 - 80 °C |
