ATEN DVI HDBASET EXTENDER
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: VE601-AT-U
- MPN: VE601-AT-U
ATEN

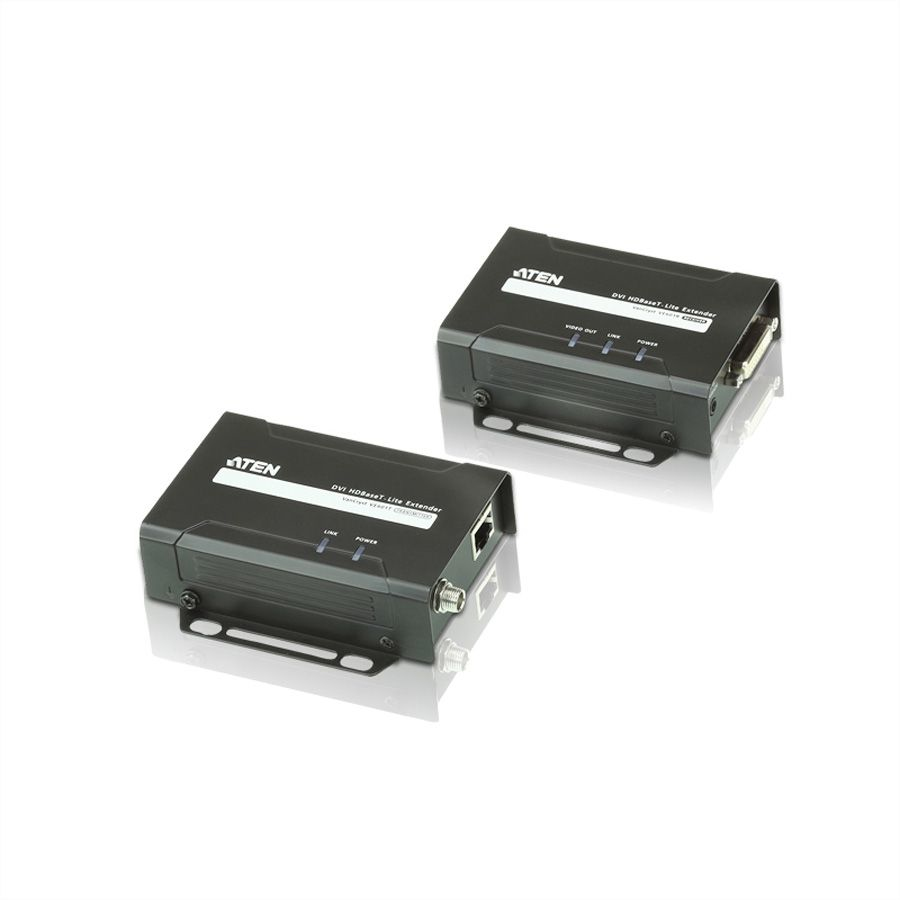

ATEN VE601-AT-U AV extender AV transmitter & receiver Black
- SKU
- CNZ-DD-044576
- MPN
- VE601-AT-U
- Rating
- No reviews yet
−13%
Overview
The VE601 DVI HDBaseT-Lite Extender is able to extend a DVI 1080p display up to 70 m using an Ethernet cable. This combination of ATEN and HDBaseT technology even supports sharing 1920 x 1200 media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.
- HDBaseT Connectivity – extends a DVI connection up to 70 meters via a single Ethernet cable
- HDBaseT Anti-Jamming – resists signal interference during video transmission using HDBaseT technology
- Rack-Mountable
- HDBaseT Connectivity – extends a DVI connection up to 70 meters via a single Ethernet cable
- HDBaseT Anti-Jamming – resists signal interference during video transmission using HDBaseT technology
- Rack-Mountable
Key features
- Type: AV transmitter & receiver
- Maximum resolution: 1920 x 1200 pixels
- Cable types supported: Cat5e, Cat6, Cat6a
- Maximum transfer distance: 70 m
- Supported graphics resolutions: 1920 x 1200 (WUXGA)
- Bandwidth: 340 MHz
- HDCP: Yes
- Material: Metal
- Impedance: 100 Ω
- Product colour: Black
- Connectivity technology: Wired
- DVI input ports: 1
- DVI output ports: 1
- DC-in jack: Yes
- AC input frequency: 60 Hz
- Operating voltage: 5 V
- Power consumption (transmitter) (max): 1.85 W
- Power consumption (receiver) (max): 4.23 W
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Receiver dimensions (WxDxH): 87 x 103 x 30 mm
- Receiver weight: 250 g
- Transmitter dimensions (WxDxH): 87 x 103 x 30 mm
Specifications
Power
| AC input frequency | 60 Hz |
|---|---|
| Operating voltage | 5 V |
| Power consumption (transmitter) (max) | 1.85 W |
| Power consumption (receiver) (max) | 4.23 W |
Features
| Type | AV transmitter & receiver |
|---|---|
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Maximum transfer distance | 70 m |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| Bandwidth | 340 MHz |
| HDCP | Yes |
| Material | Metal |
| Impedance | 100 Ω |
| Product colour | Black |
Packaging data
| Quantity per pack | 2 pc(s) |
|---|
Packaging content
| Manual | Yes |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| DVI input ports | 1 |
| DVI output ports | 1 |
| DC-in jack | Yes |
Weight & dimensions
| Receiver dimensions (WxDxH) | 87 x 103 x 30 mm |
|---|---|
| Receiver weight | 250 g |
| Transmitter dimensions (WxDxH) | 87 x 103 x 30 mm |
| Transmitter weight | 250 g |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Questions
$474.94inc GST
