ATEN HDMI HDBASET EXTENDER WITH DUAL 4K OUTPUT
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: VE814A-ATA-U
- MPN: VE814A-ATA-U
−11%
Overview

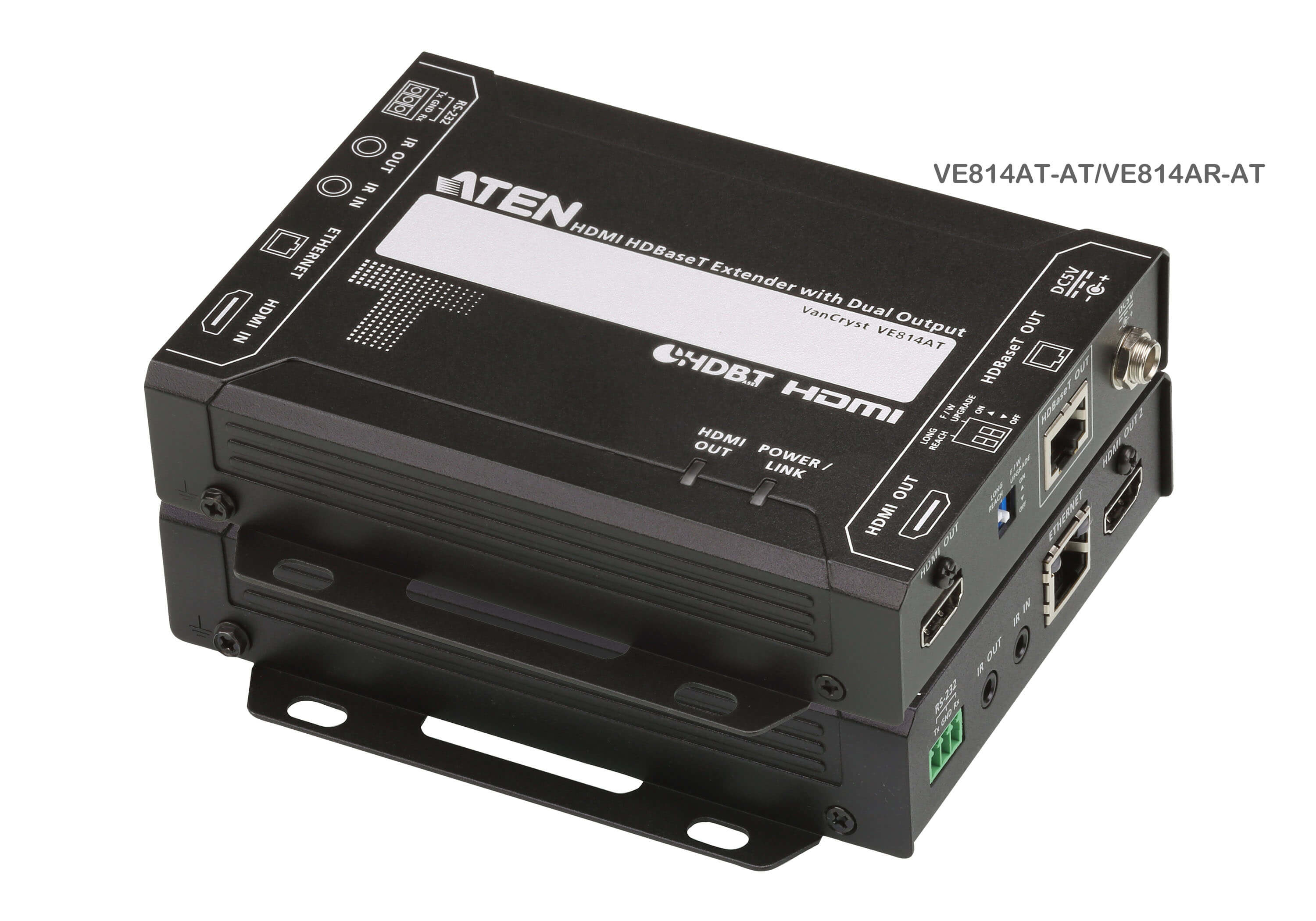

ATEN VE814A is an HDBaseT Video Extender that is capable of sending HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring dual synchronous outputs, the VE814A can transmit video signal to two remote displays and one at the local side. This HDCP 2.2-compliant extender meets the HDMI Specification, including 3D, Deep Color, the maximum data rate of (10.2 Gbps), and 4K video quality up to 100 m.
The VE814A supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE814AT). In addition, it supports Long Reach Mode that extends HDMI signals up to 150 m, 1080p, via a single Cat 5e/6 cable.
The VE814A is a powerful solution for where digital signage is required, such as bars, educational spaces, and public transportation stations, allowing display of identical contents at different spots.
The VE814A supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE814AT). In addition, it supports Long Reach Mode that extends HDMI signals up to 150 m, 1080p, via a single Cat 5e/6 cable.
The VE814A is a powerful solution for where digital signage is required, such as bars, educational spaces, and public transportation stations, allowing display of identical contents at different spots.
Key features
- Type: AV transmitter & receiver
- Maximum resolution: 4096 x 2160 pixels
- Cable types supported: Cat5e, Cat6, Cat6a
- Maximum transfer distance: 150 m
- Maximum refresh rate: 60 Hz
- Extended display identification data (EDID): Yes
- Electrostatic Discharge (ESD) protection: Yes
- Electrostatic Discharge (ESD) protection: 15 kV
- Infrared (IR) frequency range: 30 - 56 kHz
- Supported graphics resolutions: 1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160
- Bandwidth: 10.2 Gbit/s
- Bandwidth: 340 MHz
- HDCP: Yes
- Material: Metal
- 3D: Yes
- Rack mounting: Yes
- Plug and Play: Yes
- HDCP version: 2.2
- Product colour: Black
- Connectivity technology: Wired
- RJ-45 input ports: 1
- RJ-45 output ports: 1
- HDBaseT port: Yes
- HDMI in: 1
Specifications
Features
| Type | AV transmitter & receiver |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Maximum transfer distance | 150 m |
| Maximum refresh rate | 60 Hz |
| Extended display identification data (EDID) | Yes |
| Electrostatic Discharge (ESD) protection | 15 kV |
| Infrared (IR) frequency range | 30 - 56 kHz |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160 |
| Bandwidth | 340 MHz |
| HDCP | Yes |
| Material | Metal |
| 3D | Yes |
| Rack mounting | Yes |
| Plug and Play | Yes |
| HDCP version | 2.2 |
| Product colour | Black |
Packaging data
| Quantity per pack | 1 pc(s) |
|---|
Packaging content
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
| IR blaster included | Yes |
| IR receiver included | Yes |
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDBaseT port | Yes |
| HDMI in | 1 |
| Number of HDMI outputs | 3 |
| Remote (IR) input | 2 |
| Remote (IR) output | 2 |
| DC-in jack | Yes |
Weight & dimensions
| Receiver dimensions (WxDxH) | 123 x 140.2 x 30 mm |
|---|---|
| Receiver weight | 470 g |
| Transmitter dimensions (WxDxH) | 123 x 140.2 x 30 mm |
| Transmitter weight | 450 g |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
