ATEN HDMI HDBASET RECEIVER WITH DUAL 4K OUTPUT

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: VE814AR-ATA-U
  • MPN: VE814AR-ATA-U
ATEN

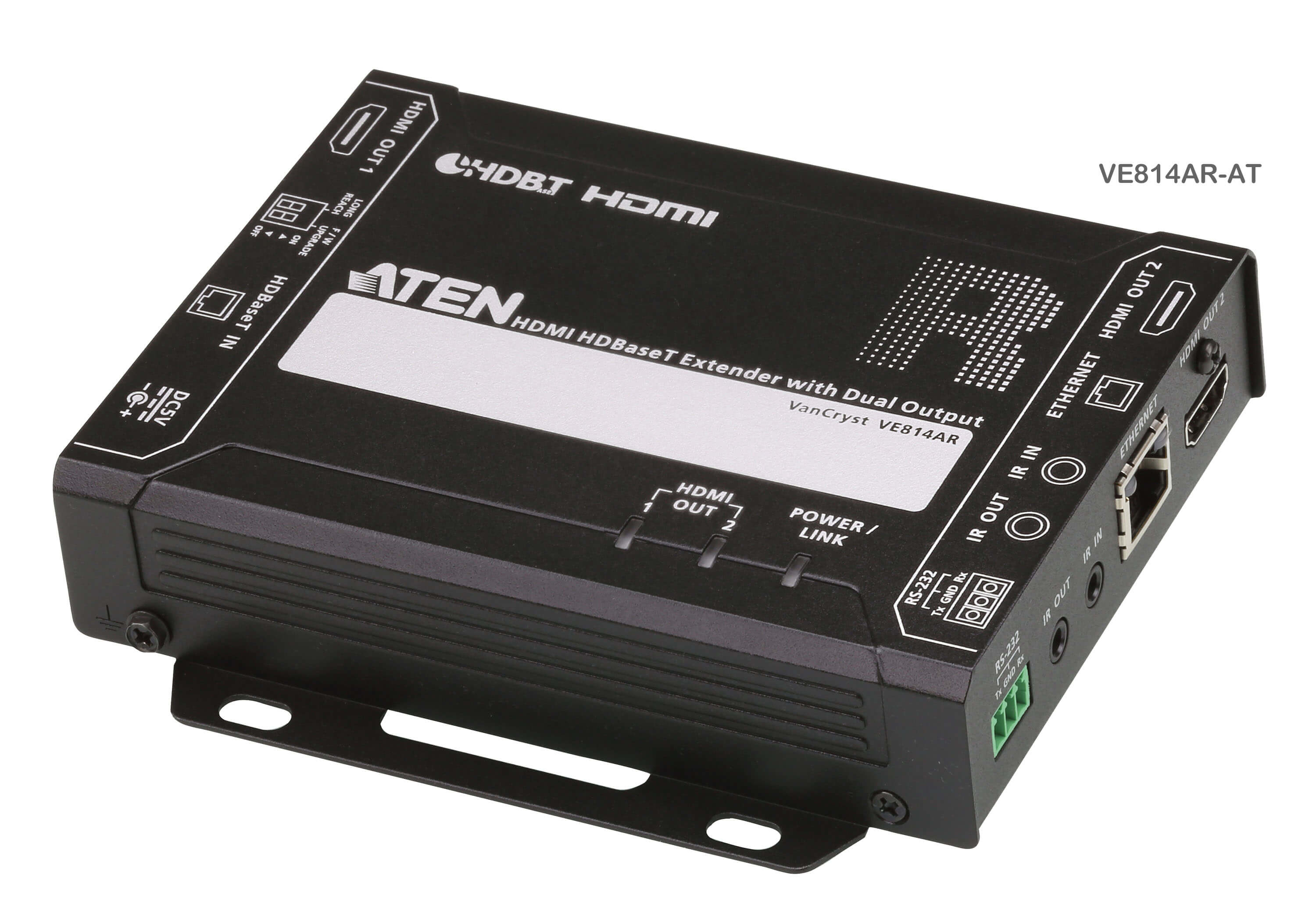

ATEN VE814AR-ATA-U AV extender AV receiver Black

Our SKU
MPN

Overview

ATEN VE814AR is an HDBaseT Video Receiver that is capable of receiving HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable.This HDCP 2.2-compliant receiver meets the HDMI Specification, including 3D, Deep Color, the maximum data rate of (10.2 Gbps), and 4K video quality up to 100 m.

The VE814AR supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE814AT). In addition, it supports Long Reach Mode that extends HDMI signals up to 150 m, 1080p, via a single Cat 5e/6 cable.

The VE814AR is a powerful solution for where digital signage is required, such as bars, educational spaces, and public transportation stations, allowing display of identical contents at different spots.

Key features

  • Type: AV receiver
  • Maximum resolution: 4096 x 2160 pixels
  • Cable types supported: Cat5e, Cat6, Cat6a
  • Maximum transfer distance: 150 m
  • Maximum refresh rate: 60 Hz
  • Electrostatic Discharge (ESD) protection: Yes
  • Electrostatic Discharge (ESD) protection: 15 kV
  • Infrared (IR) frequency range: 30 - 56 kHz
  • Supported graphics resolutions: 1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160
  • Bandwidth: 10.2 Gbit/s
  • Bandwidth: 340 MHz
  • HDCP: Yes
  • Material: Metal
  • 3D: Yes
  • Rack mounting: Yes
  • Plug and Play: Yes
  • HDCP version: 2.2
  • Product colour: Black
  • Connectivity technology: Wired
  • Ethernet LAN: Yes
  • RJ-45 input ports: 1
  • HDBaseT port: Yes
  • Number of HDMI outputs: 2
  • Remote (IR) input: 1

Specifications

Power

Operating voltage5 V
Power consumption (typical)7.9 W

Features

TypeAV receiver
Maximum resolution4096 x 2160 pixels
Cable types supportedCat5e, Cat6, Cat6a
Maximum transfer distance150 m
Maximum refresh rate60 Hz
Electrostatic Discharge (ESD) protection15 kV
Infrared (IR) frequency range30 - 56 kHz
Supported graphics resolutions1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160
Bandwidth340 MHz
HDCPYes
MaterialMetal
3DYes
Rack mountingYes
Plug and PlayYes
HDCP version2.2
Product colourBlack

Packaging data

Quantity per pack1 pc(s)

Packaging content

AC adapter includedYes
ManualYes
IR blaster includedYes
IR receiver includedYes

Ports & interfaces

Connectivity technologyWired
Ethernet LANYes
RJ-45 input ports1
HDBaseT portYes
Number of HDMI outputs2
Remote (IR) input1
Remote (IR) output1
DC-in jackYes

Weight & dimensions

Receiver dimensions (WxDxH)123 x 140.2 x 30 mm
Receiver weight470 g

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%

Questions

$652.04inc GST
