ATEN HDMI OVER 2 CAT 5 EXTENDER WITH MK WALL PLATE Networking > Network Accessories

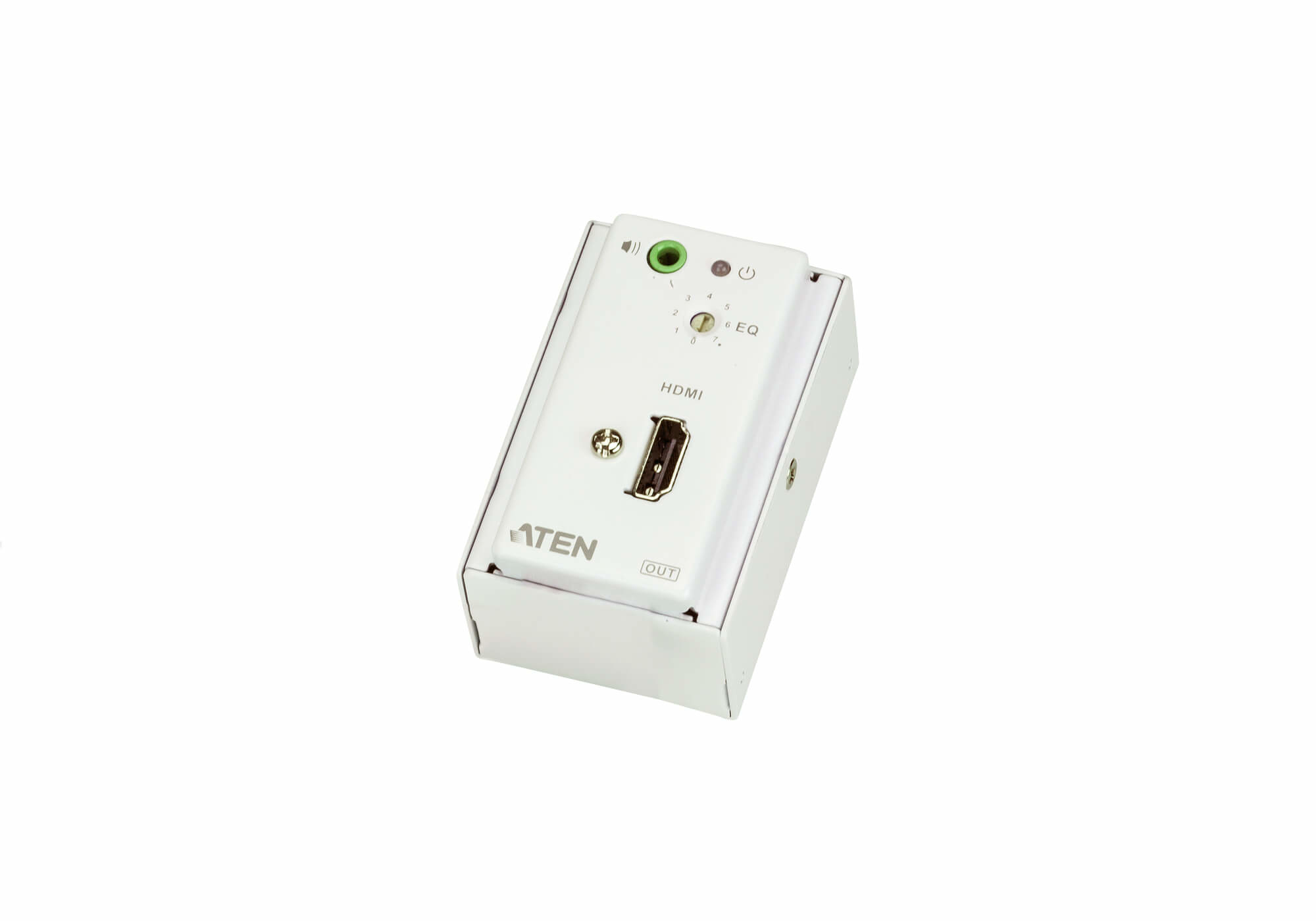

Brand: ATEN Category: Networking SKU: VE807-AT-U MPN: VE807-AT-U Home Networking ATEN ATEN ATEN VE807-AT-U AV extender AV transmitter & receiver White Overview Specifications Questions Overview The VE807 HDMI/Audio Cat 5 Extender with MK Wall Plate is designed to be conveniently mounted in a one- gang junction box for the UK, Singapore, Hong Kong and other markets that apply MK type junction boxes. It extends HDMI and audio signals up to 60 meters over a Cat 5e/6 cable and supports widescreen formats ensuring excellent video quality. The VE807 can be easily powered at either the transmitter or receiver side using a second Cat 5e/6 cable. The VE807’s compact wall plate design does away with bulky cables allowing a neat and convenient installation. Therefore, it is a perfect solution for function rooms, museums and any setting that requires equipment or cabling to be kept from the public’s view.
Key features Type: AV transmitter & receiver Maximum resolution: 1920 x 1200 pixels Cable types supported: Cat5, Cat6 Maximum transfer distance: 60 m Audio system: stereo Electrostatic Discharge (ESD) protection: 15 kV LED indicators: Yes Supported video modes: 1080i, 1080p Bandwidth: 6.75 Gbit/s Bandwidth: 225 MHz HDCP: Yes Material: Metal 3D: Yes Plug and Play: Yes Impedance: 100 Ω Product colour: White Connectivity technology: Wired RJ-45 input ports: 2 RJ-45 output ports: 2 HDMI in: 1 Number of HDMI outputs: 1 Video in: 1 Video out: 1 Audio input: 1 At a glance Operating voltage (transmitter) 9 V Operating voltage (receiver) 9 V Power consumption (transmitter) (max) 2.9 W Power consumption (receiver) (max) 2.9 W External power adapter Yes Type AV transmitter & receiver Maximum resolution 1920 x 1200 pixels Cable types supported Cat5, Cat6
All 41 specifications Specifications Power Operating voltage (transmitter) 9 V Operating voltage (receiver) 9 V Power consumption (transmitter) (max) 2.9 W Power consumption (receiver) (max) 2.9 W External power adapter Yes
Features Type AV transmitter & receiver Maximum resolution 1920 x 1200 pixels Cable types supported Cat5, Cat6 Maximum transfer distance 60 m Audio system stereo Electrostatic Discharge (ESD) protection 15 kV LED indicators Yes Supported video modes 1080i, 1080p Bandwidth 225 MHz HDCP Yes Material Metal 3D Yes Plug and Play Yes Impedance 100 Ω Product colour White
Packaging content AC adapter included Yes Manual Yes
Technical details Compliance certificates RoHS
Ports & interfaces Connectivity technology Wired RJ-45 input ports 2 RJ-45 output ports 2 HDMI in 1 Number of HDMI outputs 1 Video in 1 Video out 1 Audio input 1 Audio output 1 DC-in jack Yes
Weight & dimensions Receiver dimensions (WxDxH) 68.6 x 49.8 x 26.9 mm Receiver weight 180 g Transmitter dimensions (WxDxH) 68.6 x 49.8 x 26.9 mm Transmitter weight 180 g
Operational conditions Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 0 - 80%
$343.84 inc GST
