ATEN HDMI TRUE 4K BOOSTER
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: VB800-AT-U
- MPN: VB800-AT-U
ATEN
ATEN True 4K HDMI Booster with 4K2K @60Hz (4;4;4), up to 40m (Cascade)
- Our SKU
- MPN
- Rating
- No reviews yet
−10%
Overview

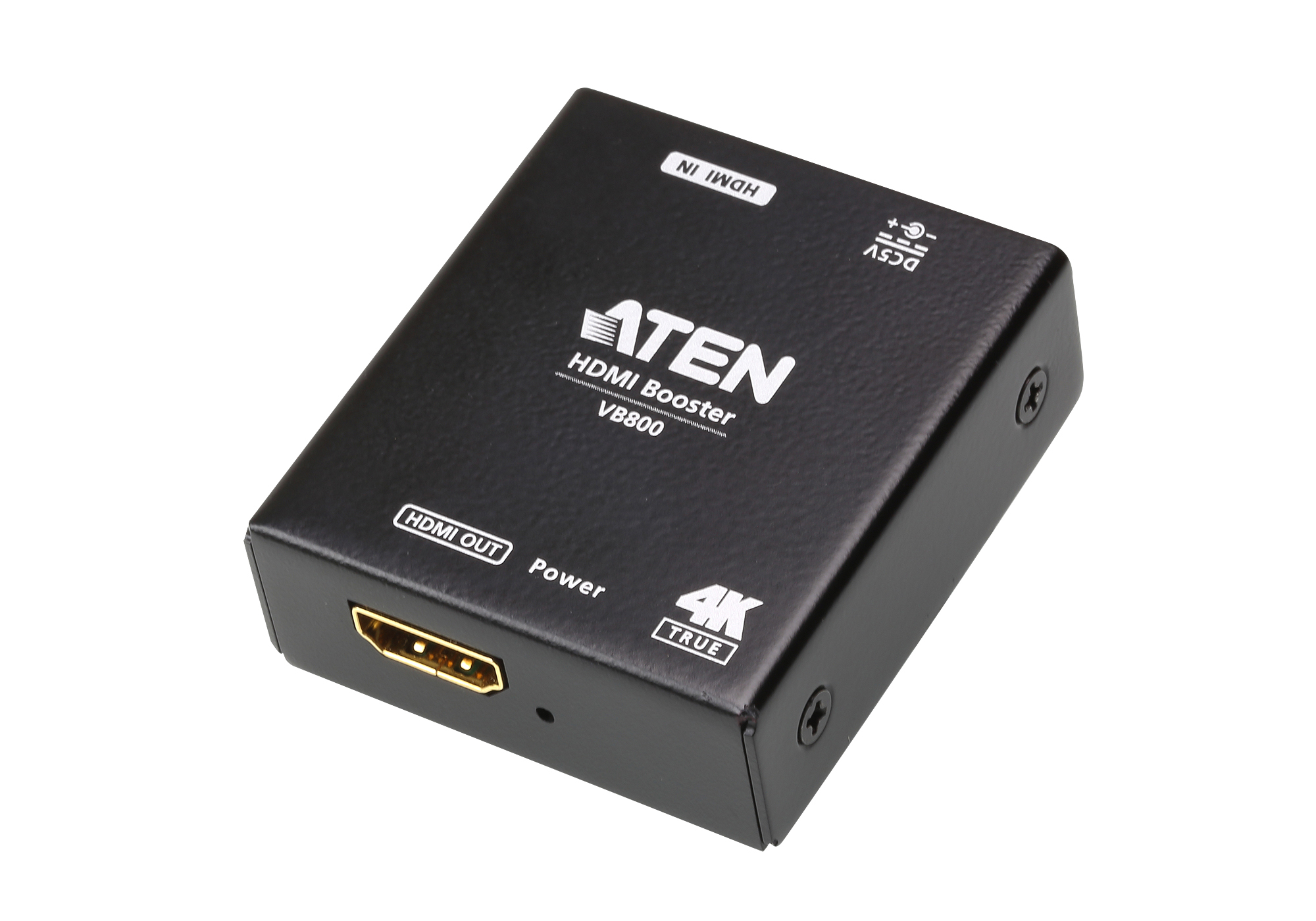

The VB800 is a true 4K HDMI booster providing a solution for long distance transmission. The HDMI booster reliably extends true 4K signals and can be cascaded up to 10 levels, guaranteeing ultimate color and image quality. The VB800 is HDMI 2.0 compliant and supports all HDMI enabled devices. The booster can be rack mounted, offering excellent flexibility for managing both work and home settings.
1x VB800 True 4k HDMI Booster
1x 0AD6-1F05-26EG Power Adapter
1x Rack Mount Kit
1x User Instructions
1x VB800 True 4k HDMI Booster
1x 0AD6-1F05-26EG Power Adapter
1x Rack Mount Kit
1x User Instructions
Key features
- Type: AV transmitter & receiver
- Maximum transfer distance: 20 m
- Supported graphics resolutions: 1920 x 1080 (HD 1080)
- Bandwidth: 18 Gbit/s
- Bandwidth: 600 MHz
- HDCP: Yes
- Material: Metal
- Plug and Play: Yes
- Product colour: Black
- Connectivity technology: Wired
- HDMI in: 1
- Number of HDMI outputs: 1
- DC-in jack: Yes
- Power consumption (typical): 0.99 W
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Width: 56 mm
- Depth: 49 mm
- Height: 17 mm
- Weight: 290 g
- Package width: 59 mm
- Package depth: 119 mm
- Package height: 160 mm
Specifications
Power
| Power consumption (typical) | 0.99 W |
|---|
Features
| Type | AV transmitter & receiver |
|---|---|
| Maximum transfer distance | 20 m |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Bandwidth | 600 MHz |
| HDCP | Yes |
| Material | Metal |
| Plug and Play | Yes |
| Product colour | Black |
Logistics data
| Master (outer) case width | 250 mm |
|---|---|
| Master (outer) case length | 325 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 3.56 kg |
| Master (outer) case net weight | 2.9 kg |
| Products per master (outer) case | 10 pc(s) |
Packaging data
| Package width | 59 mm |
|---|---|
| Package depth | 119 mm |
| Package height | 160 mm |
| Package weight | 300 g |
Packaging content
| Cables included | AC |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| DC-in jack | Yes |
Weight & dimensions
| Width | 56 mm |
|---|---|
| Depth | 49 mm |
| Height | 17 mm |
| Weight | 290 g |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
