ATEN MMF 10G SFP+ TRANSCEIVER MODULE, 300M, OM3 ,LC Networking > Network Accessories
Brand: ATEN Category: Network Accessories SKU: 2A-141G MPN: 2A-141G Home Network Accessories ATEN ATEN ATEN 10G Multi-Mode/300M Fiber SFP+ Module
SKU CNZ-DD-004490

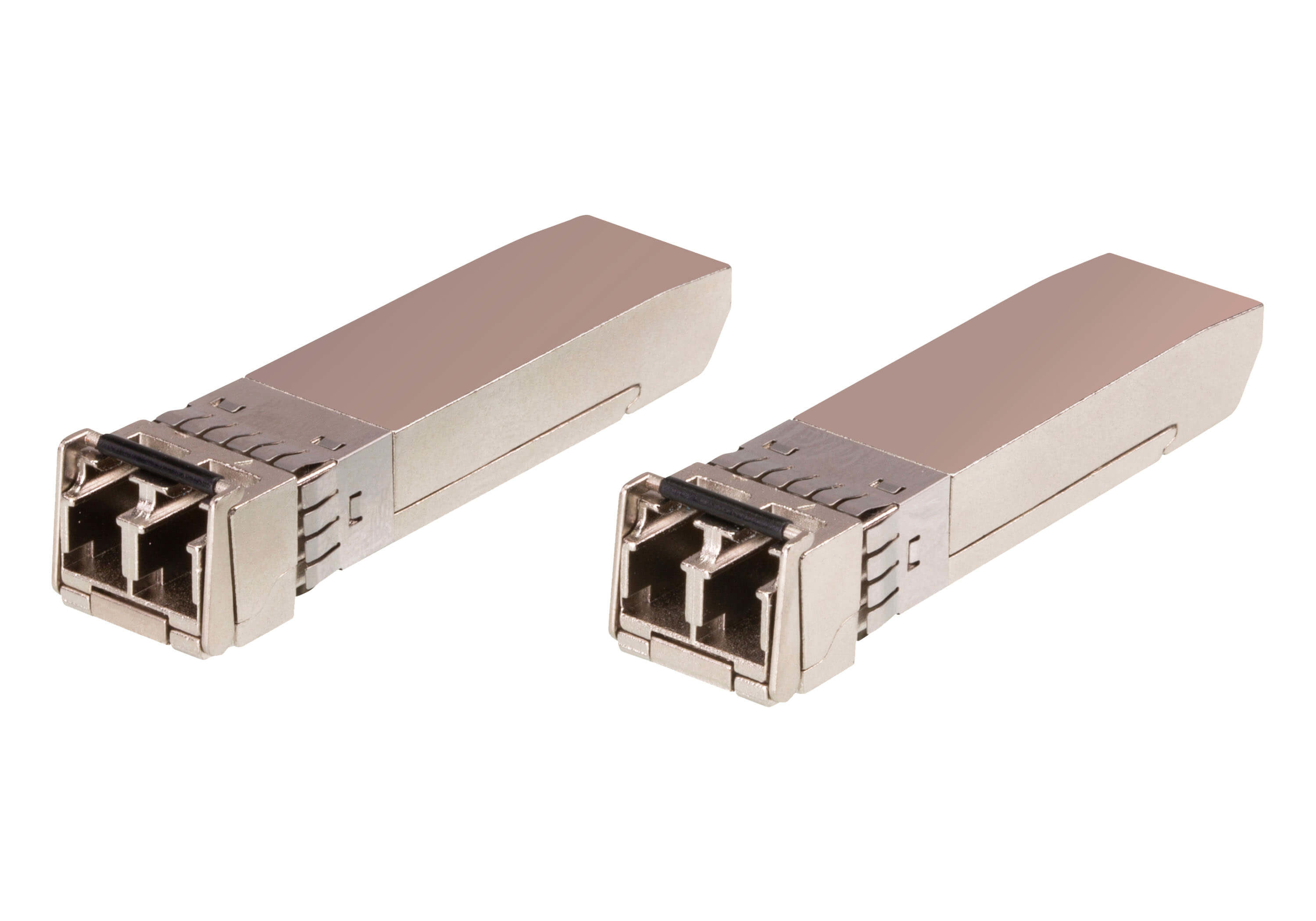

MPN 2A-141G Overview Specifications Questions Overview The 2A-141G 10G Multi-Mode/300M Fiber SFP+ Module is designed for use in 10GbE Ethernet environment that allows you to connect a multi-mode Gigabit Ethernet network cable to a network switch’s SFP+ port. The 2A-141G provides 10GbE connectivity at distances up to 300 meters. As a hotpluggable module with a standard duplex connector for fiber communications, the 2A-141G works with multi-mode-fiber (MMF) connections and operates at a nominal wavelength of 850 nm. This makes the module a cost-effective and highperformance transceiver to substantially increase the span of a compatible network switch.
Key features SFP transceiver type: Fiber optic Maximum data transfer rate: 10000 Mbit/s Interface type: SFP+ Multi-mode fiber (MMF) supported: Yes Maximum transfer distance: 300 m Wavelength: 850 nm Networking standards: IEEE 802.3ae Digital Diagnostics Monitoring (DDM): Yes Product colour: Stainless steel Hot-Plug support: Yes Compliance certificates: RoHS Operating temperature (T-T): 0 - 70 °C Storage temperature (T-T): -40 - 85 °C Width: 14.6 mm Depth: 55.9 mm Height: 13 mm Weight: 44 g Quantity per pack: 2 pc(s) Package width: 42 mm Package depth: 124 mm Package height: 129 mm Package weight: 85 g Master (outer) case net weight: 440 g Master (outer) case width: 237 mm At a glance Product colour Stainless steel Hot-Plug support Yes SFP transceiver type Fiber optic Maximum data transfer rate 10000 Mbit/s Interface type SFP+ Multi-mode fiber (MMF) supported Yes Maximum transfer distance 300 m Wavelength 850 nm
All 29 specifications Specifications Features Product colour Stainless steel Hot-Plug support Yes
Performance SFP transceiver type Fiber optic Maximum data transfer rate 10000 Mbit/s Interface type SFP+ Multi-mode fiber (MMF) supported Yes Maximum transfer distance 300 m Wavelength 850 nm Networking standards IEEE 802.3ae Digital Diagnostics Monitoring (DDM) Yes
Certificates Compliance certificates RoHS
Logistics data Master (outer) case net weight 440 g Master (outer) case width 237 mm Master (outer) case length 288 mm Harmonized System (HS) code 85369010 Master (outer) case height 157 mm Master (outer) case gross weight 1.27 kg Products per master (outer) case 10 pc(s)
Packaging data Package width 42 mm Package depth 124 mm Package height 129 mm Package weight 85 g
Weight & dimensions Width 14.6 mm Depth 55.9 mm Height 13 mm Weight 44 g
Operational conditions Operating temperature (T-T) 0 - 70 °C Storage temperature (T-T) -40 - 85 °C
$382.94 inc GST
