ATEN TRUE 4K HDMI HDBASET-LITE EXTENDER

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: VE1830-AT-U
  • MPN: VE1830-AT-U
ATEN

ATEN VE1830 AV extender AV transmitter & receiver Black

Our SKU
MPN
Barcode

Overview

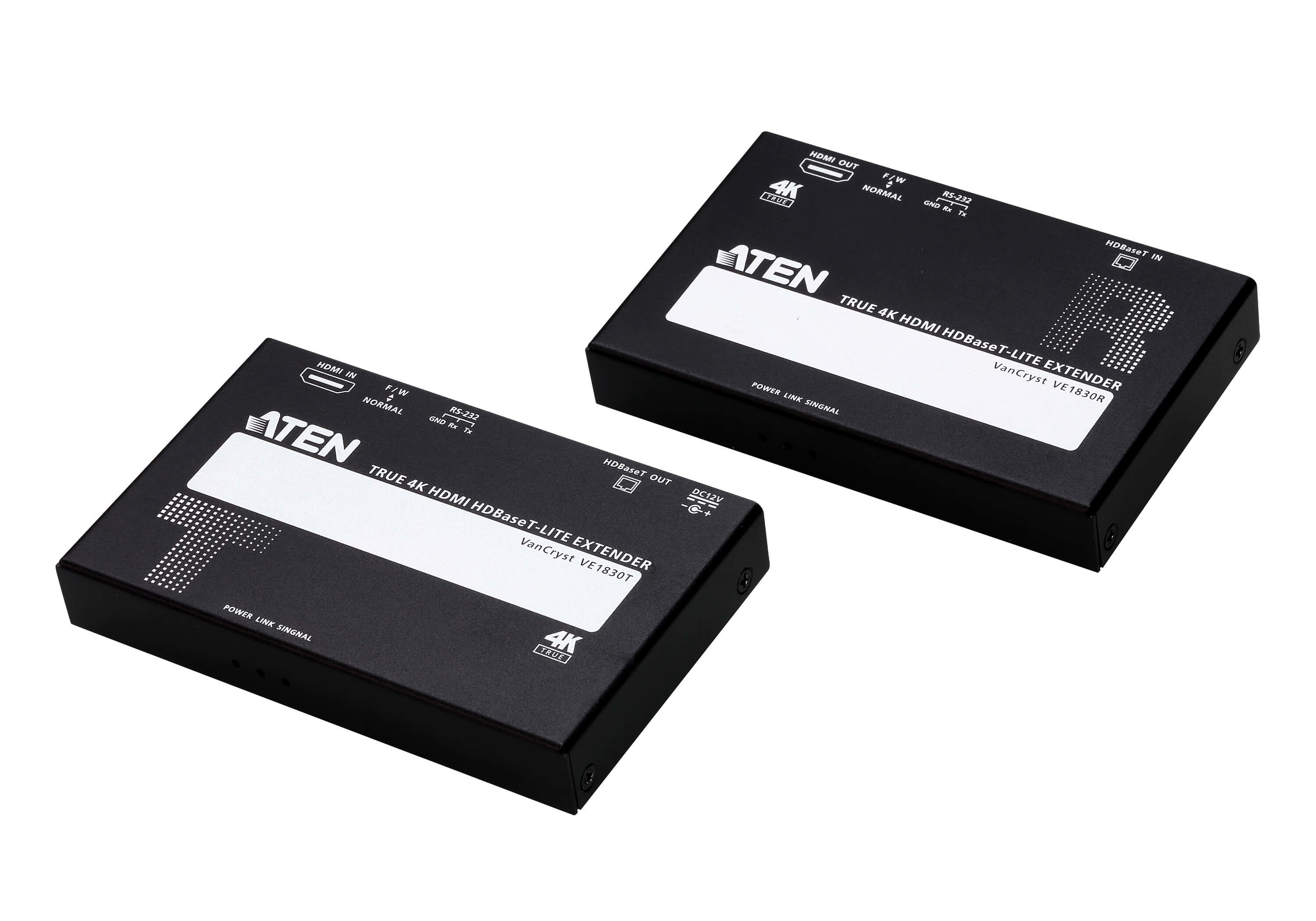

The VE1830 True 4K HDMI HDBaseT-Lite Extender provides great flexibility in professional A/V installation with its high-quality transmitter VE1830T and receiver VE1830R. Powered by HDBaseT™ technology, the VE1830 transmits True 4K HDMI signals up to 35m using a single Cat 5e/6 cable. This HDBaseT-Lite Extender supports HDCP 2.2 and meets the HDMI 2.0a specifications (3D, Deep Color, 4k) to ensure visually lossless high quality video and image. In addition, it features PoC (Power over Cable) which can power the receiver unit from the transmitter side with power supply. The VE1830 offers an easy-to-use and cost-effective solution for professional A/V installations that require superior HDMI video quality, such as in digital classrooms, video conference rooms and home theater.

Key features

  • Type: AV transmitter & receiver
  • Maximum resolution: 3840 x 2160 pixels
  • Cable types supported: Cat5e, Cat6
  • Maximum transfer distance: 5 m
  • Maximum refresh rate: 60 Hz
  • Bandwidth: 10.2 Gbit/s
  • Bandwidth: 340 MHz
  • HDCP: Yes
  • Material: Metal
  • 3D: Yes
  • Rack mounting: Yes
  • Consumer Electronics Control (CEC) support: Yes
  • Plug and Play: Yes
  • Impedance: 100 Ω
  • HDCP version: 2.2
  • Product colour: Black
  • Connectivity technology: Wired
  • RJ-45 input ports: 1
  • RJ-45 output ports: 1
  • HDMI in: 1
  • Number of HDMI outputs: 1
  • HDMI version: 2.0a
  • DC-in jack: Yes
  • Operating voltage: 12 V

Specifications

Power

Operating voltage12 V
Power consumption (typical)24 W

Features

TypeAV transmitter & receiver
Maximum resolution3840 x 2160 pixels
Cable types supportedCat5e, Cat6
Maximum transfer distance5 m
Maximum refresh rate60 Hz
Bandwidth340 MHz
HDCPYes
MaterialMetal
3DYes
Rack mountingYes
Consumer Electronics Control (CEC) supportYes
Plug and PlayYes
Impedance100 Ω
HDCP version2.2
Product colourBlack

Packaging content

AC adapter includedYes
ManualYes
Mounting kitYes

Ports & interfaces

Connectivity technologyWired
RJ-45 input ports1
RJ-45 output ports1
HDMI in1
Number of HDMI outputs1
HDMI version2.0a
DC-in jackYes

Weight & dimensions

Receiver dimensions (WxDxH)118.6 x 71.9 x 16.8 mm
Receiver weight120 g
Transmitter dimensions (WxDxH)118.6 x 71.9 x 16.8 mm
Transmitter weight150 g

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%

Questions
