ATEN VGA CAT 5 EXTENDER (1280 X 1024@150M)
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: VE150A-AT-U
- MPN: VE150A-AT-U
−13%
Overview

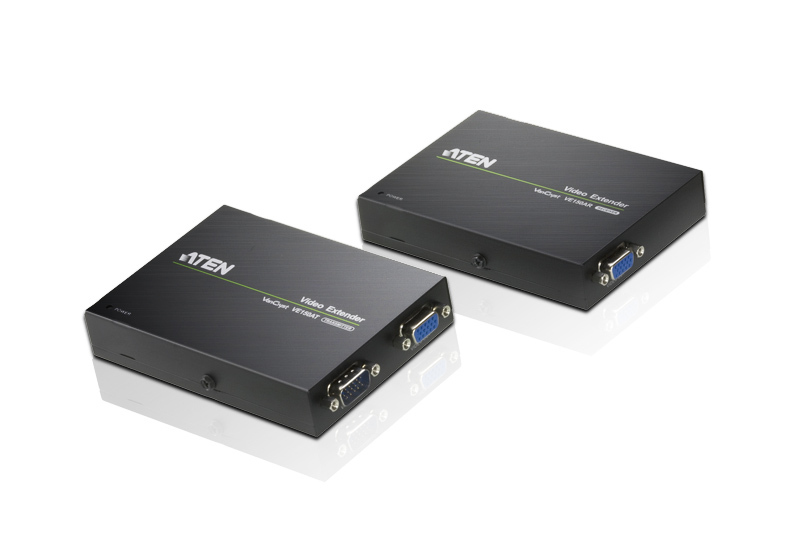

VE150A video extender comprises a local transmitting unit and a remote receiving unit which are connected by standard Cat 5e cables. The distance of both units can be extended up to 150m. It is ideal for factories and construction sites, or any location where the display may need to expose in a risky setting, but you want the system to be kept in a safe location.
1x VE150AT Video Extender (Local unit)
1x VE150AR Video Extender (Remote unit)
2x Power Adapters
1x VGA Cable
1x Mounting Kit
1x User Instructions
1x VE150AT Video Extender (Local unit)
1x VE150AR Video Extender (Remote unit)
2x Power Adapters
1x VGA Cable
1x Mounting Kit
1x User Instructions
Key features
- Type: AV transmitter & receiver
- Maximum resolution: 1920 x 1200 pixels
- Cable types supported: Cat5
- Maximum transfer distance: 150 m
- Supported graphics resolutions: 1280 x 1024 (SXGA), 1920 x 1200 (WUXGA)
- Material: Metal
- Rack mounting: Yes
- Plug and Play: Yes
- Impedance: 75 Ω
- Product colour: Black
- Connectivity technology: Wired
- HDBaseT port: Yes
- VGA (D-Sub) input ports: 1
- Video in: 1 x HDB-15
- Video out: 1 x HDB-15
- Power consumption (transmitter) (max): 1 W
- Power consumption (receiver) (max): 1.2 W
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Weight: 970 g
- Receiver dimensions (WxDxH): 127.7 x 90.4 x 22.6 mm
- Receiver weight: 240 g
- Transmitter dimensions (WxDxH): 127.7 x 90.4 x 22.6 mm
Specifications
Power
| Power consumption (transmitter) (max) | 1 W |
|---|---|
| Power consumption (receiver) (max) | 1.2 W |
Features
| Type | AV transmitter & receiver |
|---|---|
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5 |
| Maximum transfer distance | 150 m |
| Supported graphics resolutions | 1280 x 1024 (SXGA), 1920 x 1200 (WUXGA) |
| Material | Metal |
| Rack mounting | Yes |
| Plug and Play | Yes |
| Impedance | 75 Ω |
| Product colour | Black |
Logistics data
| Master (outer) case width | 300 mm |
|---|---|
| Master (outer) case length | 336 mm |
| Master (outer) case height | 194 mm |
| Master (outer) case gross weight | 5.92 kg |
| Master (outer) case net weight | 4.85 kg |
| Products per master (outer) case | 5 pc(s) |
Packaging data
| Quantity per pack | 2 pc(s) |
|---|---|
| Package width | 62 mm |
| Package depth | 283 mm |
| Package height | 173 mm |
| Package weight | 1.11 kg |
Packaging content
| AC adapter included | Yes |
|---|---|
| Cables included | VGA |
| Manual | Yes |
| Mounting kit | Yes |
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| HDBaseT port | Yes |
| VGA (D-Sub) input ports | 1 |
| Video in | 1 x HDB-15 |
| Video out | 1 x HDB-15 |
Weight & dimensions
| Weight | 970 g |
|---|---|
| Receiver dimensions (WxDxH) | 127.7 x 90.4 x 22.6 mm |
| Receiver weight | 240 g |
| Transmitter dimensions (WxDxH) | 127.7 x 90.4 x 22.6 mm |
| Transmitter weight | 240 g |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
