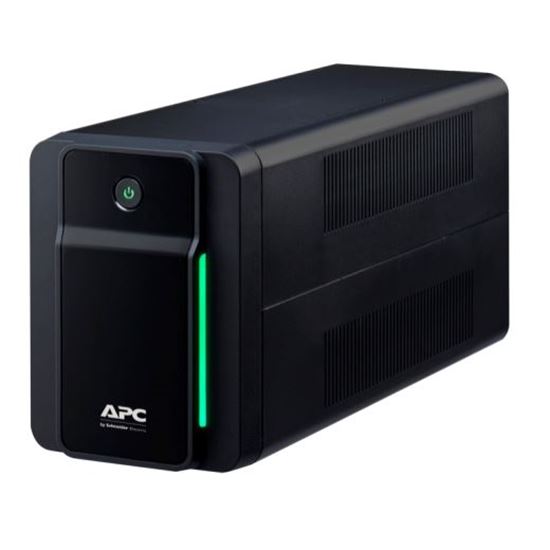

APC Back-UPS BX Series 1200VA (650W) Line Interactive with AVR,
- Brand: APC
- Category: Uninterruptible Power Supplies (upss)
- SKU: BX1200MI-AZ
- MPN: BX1200MI-AZ
APC
APC BX1200MI-AZ uninterruptible power supply (UPS) Line-Interactive…
- SKU
- CNZ-CD-004491
- MPN
- BX1200MI-AZ
- Rating
- No reviews yet
−7%
Overview
APC Back-UPS BX Series 1200VA (650W) Line Interactive with AVR, 230V Input/Output. 4x ANZ Sockets. IEC C14 Plug. 1.2m Power Cord. With Battery Backup & Surge Protector.
Key features
- UPS topology: Line-Interactive
- Output power capacity: 1.2 kVA
- Output power: 650 W
- Waveform: Sine
- Input operation voltage (min): 140 V
- Input operation voltage (max): 300 V
- Input frequency: 50/60 Hz
- Output operation voltage (min): 230 V
- Output frequency: 50/60 Hz
- Surge energy rating: 273 J
- Response time: 6 ms
- Input power factor: 0.54
- Noise level: 40 dB
- Surge protection: Yes
- Audible alarm(s): Yes
- Audible alarm modes: Alarm when on battery
- AC outlet types: C14 coupler
- Ethernet LAN (RJ-45) ports: 2
- Battery technology: Sealed Lead Acid (VRLA)
- Battery capacity: 108 Ah
- Battery life (max): 5 year(s)
- Battery recharge time: 8 h
- Battery weight: 8.6 kg
- Form factor: Compact
Specifications
Spec
| Spec | Output |
|---|
Colour
| Colour | Black |
|---|
Topology
| Topology | Line-interactive |
|---|
Approvals
| Approvals | CB , CE, EN/IEC 62040-1, EN/IEC 62040-2 |
|---|
SCC Codes
| SCC Codes | 10731304410765 |
|---|
Net Weight
| Net Weight | 7.6KG |
|---|
Cord Length
| Cord Length | 1.2 meters |
|---|
Battery type
| Battery type | Lead-acid battery |
|---|
Audible Alarm
| Audible Alarm | Alarm when on battery: distinctive low battery alarm |
|---|
Audible noise
| Audible noise | at 1 meter from surface of 40.0dBA unit |
|---|
Control panel
| Control panel | LED Status display with online: on battery |
|---|
Maximum Depth
| Maximum Depth | 390MM, 39.0CM |
|---|
Maximum Width
| Maximum Width | 140MM, 14.0CM |
|---|
Transfer Time
| Transfer Time | 6 ms typical10ms maximum |
|---|
Waveform type
| Waveform type | Stepped approximation to a sinewave |
|---|
Maximum Height
| Maximum Height | 190MM, 19.0CM |
|---|
SCC Codes (40)
| SCC Codes (40) | Environmental |
|---|
Shipping Depth
| Shipping Depth | 495MM, 49.5CM |
|---|
Shipping Width
| Shipping Width | 235MM, 23.5CM |
|---|
Input frequency
| Input frequency | 50/60Hz +/- 5Hz Auto-sensing |
|---|
Shipping Height
| Shipping Height | 297MM, 29.7CM |
|---|
Shipping weight
| Shipping weight | 8.6KG |
|---|
Protection Class
| Protection Class | IP20 |
|---|
Input Connections
| Input Connections | IEC 60320 C14 |
|---|
Storage Elevation
| Storage Elevation | 0~3000meters |
|---|
Transfer Time (9)
| Transfer Time (9) | Input |
|---|
Audible Alarm (26)
| Audible Alarm (26) | Surge Protection and Filtering |
|---|
Output Connections
| Output Connections | (4) Australian |
|---|
Operating Elevation
| Operating Elevation | 0~3000meters |
|---|
Storage Temperature
| Storage Temperature | -15°C~40°C |
|---|
Surge energy rating
| Surge energy rating | 273 Joules |
|---|
Data Line Protection
| Data Line Protection | RJ45 10/100/1000 Base-T Ethernet protection |
|---|
Nominal Input Voltage
| Nominal Input Voltage | 230V |
|---|
Number of Power Cords
| Number of Power Cords | 1 |
|---|
Operating Temperature
| Operating Temperature | 0°C~40°C |
|---|
Output power capacity
| Output power capacity | 650 Watts/1.2kVA |
|---|
Protection Class (49)
| Protection Class (49) | Conformance |
|---|
Typical recharge time
| Typical recharge time | 8 hour(s) |
|---|
Nominal Output Voltage
| Nominal Output Voltage | 230V |
|---|
Storage Elevation (46)
| Storage Elevation (46) | Environmental |
|---|
Data Line Protection (29)
| Data Line Protection (29) | Physical |
|---|
Operating Relative Humidity
| Operating Relative Humidity | 0%~95% (Non-condensing) |
|---|
Expected Battery Life (years)
| Expected Battery Life (years) | 1 - 2 |
|---|
Battery Volt-Amp-Hour Capacity
| Battery Volt-Amp-Hour Capacity | 108 |
|---|
Input Power Factor at Full Load
| Input Power Factor at Full Load | 0.54 |
|---|
Max Configurable Power (Watts)
| Max Configurable Power (Watts) | 650 Watts/1.2kVA |
|---|
Output Frequency (sync to mains)
| Output Frequency (sync to mains) | 50/60Hz +/-1Hz Sync to mains |
|---|
Expected Battery Life (years) (21)
| Expected Battery Life (years) (21) | Batteries & Runtime |
|---|
Battery Volt-Amp-Hour Capacity (23)
| Battery Volt-Amp-Hour Capacity (23) | Communications & Management |
|---|
Input Power Factor at Full Load (17)
| Input Power Factor at Full Load (17) | Batteries & Runtime |
|---|
Input voltage range for main operations
| Input voltage range for main operations | 140V~300V |
|---|
