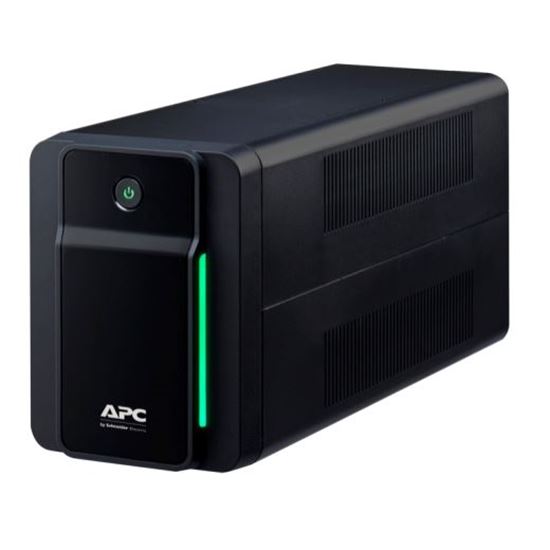

APC Back-UPS BX Series 750VA (410W) Line Interactive with AVR, 230V
- Brand: APC
- Category: Uninterruptible Power Supplies (upss)
- SKU: BX750MI-AZ
- MPN: BX750MI-AZ
APC
APC BX750MI-AZ uninterruptible power supply (UPS) Line-Interactive…
- SKU
- CNZ-CD-004493
- MPN
- BX750MI-AZ
- Rating
- No reviews yet
−7%
Overview
APC Back-UPS BX Series 750VA (410W) Line Interactive with AVR, 230V Input/Output. 3x ANZ Sockets. IEC C14 Plug. 1.2m Power Cord. With Battery Backup & Surge Protector.
Key features
- UPS topology: Line-Interactive
- Output power capacity: 0.75 kVA
- Output power: 410 W
- Waveform: Sine
- Input operation voltage (min): 140 V
- Input operation voltage (max): 300 V
- Input frequency: 50/60 Hz
- Output frequency: 50/60 Hz
- Response time: 6 ms
- Input power factor: 0.63
- Noise level: 40 dB
- Surge protection: Yes
- Audible alarm(s): Yes
- Audible alarm modes: Alarm when on battery
- AC outlet types: C14 coupler
- AC outlets quantity: 3 AC outlet(s)
- Ethernet LAN (RJ-45) ports: 2
- Battery technology: Sealed Lead Acid (VRLA)
- Battery life (max): 5 year(s)
- Battery recharge time: 8 h
- Form factor: Compact
- Product colour: Black
- LED indicators: Yes
- International Protection (IP) code: IP20
Specifications
Spec
| Spec | Output |
|---|
Colour
| Colour | Black |
|---|
Topology
| Topology | Line-interactive |
|---|
Approvals
| Approvals | CE, EN/IEC 62040-1, EN/IEC 62040-2 |
|---|
SCC Codes
| SCC Codes | 10731304410741 |
|---|
Net Weight
| Net Weight | 5.4KG |
|---|
Cord Length
| Cord Length | 1.2 meters |
|---|
Battery type
| Battery type | Lead-acid battery |
|---|
Audible Alarm
| Audible Alarm | Alarm when on battery: distinctive low battery alarm |
|---|
Control panel
| Control panel | LED Status display with online: on battery |
|---|
Maximum Depth
| Maximum Depth | 355MM, 35.5CM |
|---|
Maximum Width
| Maximum Width | 120MM, 12.0CM |
|---|
Transfer Time
| Transfer Time | 6ms typical10ms maximum |
|---|
Waveform type
| Waveform type | Stepped approximation to a sinewave |
|---|
Maximum Height
| Maximum Height | 160MM, 16.0CM |
|---|
SCC Codes (40)
| SCC Codes (40) | Environmental |
|---|
Shipping Depth
| Shipping Depth | 430MM, 43.0CM |
|---|
Shipping Width
| Shipping Width | 197MM, 19.7CM |
|---|
Input frequency
| Input frequency | 50/60 Hz +/-5Hz Auto-sensing |
|---|
Shipping Height
| Shipping Height | 250MM, 25.0CM |
|---|
Shipping weight
| Shipping weight | 5.9KG |
|---|
Protection Class
| Protection Class | IP20 |
|---|
Input Connections
| Input Connections | IEC 60320 C14 |
|---|
Standard warranty
| Standard warranty | 2 years repair or replace |
|---|
Storage Elevation
| Storage Elevation | 0~3000 meters |
|---|
Transfer Time (9)
| Transfer Time (9) | Input |
|---|
Audible Alarm (26)
| Audible Alarm (26) | Surge Protection and Filtering |
|---|
Output Connections
| Output Connections | (3) Australian |
|---|
Operating Elevation
| Operating Elevation | 0~3000 meters |
|---|
Storage Temperature
| Storage Temperature | -15°C~40°C |
|---|
Surge energy rating
| Surge energy rating | 273 Joules |
|---|
Data Line Protection
| Data Line Protection | RJ45 10/100/1000 Base-T Ethernet protection |
|---|
Nominal Input Voltage
| Nominal Input Voltage | 230V |
|---|
Number of Power Cords
| Number of Power Cords | 1 |
|---|
Operating Temperature
| Operating Temperature | 0°C~40°C |
|---|
Output power capacity
| Output power capacity | 410 Watts/750VA |
|---|
Protection Class (49)
| Protection Class (49) | Conformance |
|---|
Typical recharge time
| Typical recharge time | 8 hour(s) |
|---|
Nominal Output Voltage
| Nominal Output Voltage | 230V |
|---|
Storage Elevation (46)
| Storage Elevation (46) | Environmental |
|---|
Storage Elevation (47)
| Storage Elevation (47) | Audible noise at 1 meter from surface of 40.0dBA unit |
|---|
Data Line Protection (29)
| Data Line Protection (29) | Physical |
|---|
Equipment protection policy
| Equipment protection policy | Lifetime: 50000 euros |
|---|
Operating Relative Humidity
| Operating Relative Humidity | 0%~95% (Non-condensing) |
|---|
Expected Battery Life (years)
| Expected Battery Life (years) | 1 - 2 |
|---|
Battery Volt-Amp-Hour Capacity
| Battery Volt-Amp-Hour Capacity | 108 |
|---|
Input Power Factor at Full Load
| Input Power Factor at Full Load | 0.63 |
|---|
Max Configurable Power (Watts)
| Max Configurable Power (Watts) | 410 Watts/750VA |
|---|
Output Frequency (sync to mains)
| Output Frequency (sync to mains) | 50/60Hz +/- 1Hz Sync to mains |
|---|
Expected Battery Life (years) (21)
| Expected Battery Life (years) (21) | Batteries & Runtime |
|---|
Battery Volt-Amp-Hour Capacity (23)
| Battery Volt-Amp-Hour Capacity (23) | Communications & Management |
|---|
Input Power Factor at Full Load (17)
| Input Power Factor at Full Load (17) | Batteries & Runtime |
|---|
Input voltage range for main operations
| Input voltage range for main operations | 140V~300V |
|---|
