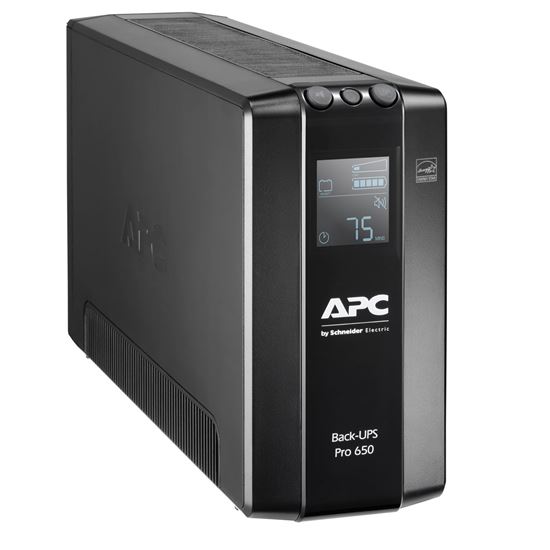

APC Back-UPS PRO Line Interactive 650VA (390W) with AVR, 230V
- Brand: APC
- Category: Uninterruptible Power Supplies (upss)
- SKU: BR650MI
- MPN: BR650MI
APC
APC BR650MI uninterruptible power supply (UPS) Line-Interactive 0.65…
- SKU
- CNZ-CD-004489
- MPN
- BR650MI
- Rating
- No reviews yet
−7%
Overview
APC Back-UPS PRO Line Interactive 650VA (390W) with AVR, 230V Input/Output. 6x IEC C14 Outlets. With Battery Backup & Surge Protect. LCD Display.
Key features
- UPS topology: Line-Interactive
- Output power capacity: 0.65 kVA
- Output power: 390 W
- Waveform: Sine
- Input operation voltage (min): 176 V
- Input operation voltage (max): 294 V
- Input frequency: 50/60 Hz
- Output frequency: 50/60 Hz
- Automatic Voltage Regulation (AVR): Yes
- Maximum current: 10 A
- Response time: 12 ms
- ECO mode: Yes
- Noise level: 45 dB
- Surge protection: Yes
- Surge protection features: Network
- Audible alarm(s): Yes
- Audible alarm modes: Alarm when on battery, Low battery alarm, Overload alarm
- AC outlet types: C13 coupler
- Power plug: C14 coupler
- AC outlets quantity: 6 AC outlet(s)
- USB port: Yes
- USB 2.0 ports quantity: 1
- Ethernet LAN (RJ-45) ports: 2
- Cabling technology: 10/100/1000Base-T(X)
Specifications
Spec
| Spec | Output |
|---|
Colour
| Colour | Black |
|---|
Topology
| Topology | Line interactive |
|---|
Approvals
| Approvals | A-Tick, C-Tick, CE, EAC, GS Mark, RCM, TISI |
|---|
Filtering
| Filtering | Full time multi-pole noise filtering: 10% of IEEE surge let-through: zero clamping response time: instantaneous |
|---|
Net Weight
| Net Weight | 6.4KG |
|---|
Colour (33)
| Colour (33) | Environmental |
|---|
Battery type
| Battery type | Lead-acid battery |
|---|
RBC Quantity
| RBC Quantity | 1 |
|---|
Audible Alarm
| Audible Alarm | Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm |
|---|
Control panel
| Control panel | Multifunction LCD status and control console |
|---|
Maximum Depth
| Maximum Depth | 310MM, 31.0CM |
|---|
Maximum Width
| Maximum Width | 91MM, 9.1CM |
|---|
Transfer Time
| Transfer Time | 10 ms typical: 12 ms maximum |
|---|
Waveform type
| Waveform type | Stepped approximation to a sinewave |
|---|
Filtering (23)
| Filtering (23) | Physical |
|---|
Maximum Height
| Maximum Height | 190MM, 19.0CM |
|---|
Shipping Depth
| Shipping Depth | 143MM, 14.3CM |
|---|
Shipping Width
| Shipping Width | 440MM, 44.0CM |
|---|
Input frequency
| Input frequency | 50/60 Hz +/- 3Hz Auto-sensing |
|---|
Shipping Height
| Shipping Height | 255MM, 25.5CM |
|---|
Shipping weight
| Shipping weight | 7.4KG |
|---|
Interface Port(s)
| Interface Port(s) | USB |
|---|
RBC Quantity (16)
| RBC Quantity (16) | Communications & Management |
|---|
Standard warranty
| Standard warranty | 2 years repair or replace |
|---|
Storage Elevation
| Storage Elevation | 0~15240m |
|---|
Transfer Time (7)
| Transfer Time (7) | Input |
|---|
Audible Alarm (20)
| Audible Alarm (20) | Surge Protection and Filtering |
|---|
Operating Elevation
| Operating Elevation | 0~3048m |
|---|
Storage Temperature
| Storage Temperature | -215°C~545°C |
|---|
Data Line Protection
| Data Line Protection | RJ45 network line - 10/100/1000 Base-T Ethernet |
|---|
Operating Temperature
| Operating Temperature | 0°C~40°C |
|---|
Other Output Voltages
| Other Output Voltages | 220, 240 |
|---|
Typical recharge time
| Typical recharge time | 12 hour(s) |
|---|
Online thermal dissipation
| Online thermal dissipation | 13.0BTU/hr |
|---|
Equipment protection policy
| Equipment protection policy | Lifetime : 150000 euros, Lifetime : 200000 AUD, Lifetime : 75000 GBP |
|---|
Operating Relative Humidity
| Operating Relative Humidity | 0%~95% (Non-condensing) |
|---|
Battery Charge Power (Watts)
| Battery Charge Power (Watts) | 6W |
|---|
Expected Battery Life (years)
| Expected Battery Life (years) | 3 - 5 |
|---|
Max Configurable Power (Watts)
| Max Configurable Power (Watts) | 390 Watts / 650VA |
|---|
Online thermal dissipation (41)
| Online thermal dissipation (41) | Conformance |
|---|
Output Frequency (sync to mains)
| Output Frequency (sync to mains) | 50/60Hz +/- 1Hz Sync to main |
|---|
Input voltage range for main operations
| Input voltage range for main operations | 176 - 294V |
|---|
Input voltage range for main operations (10)
| Input voltage range for main operations (10) | Batteries & Runtime |
|---|
Audible noise at 1 meter from surface of the unit
| Audible noise at 1 meter from surface of the unit | 45.0dBA |
|---|
