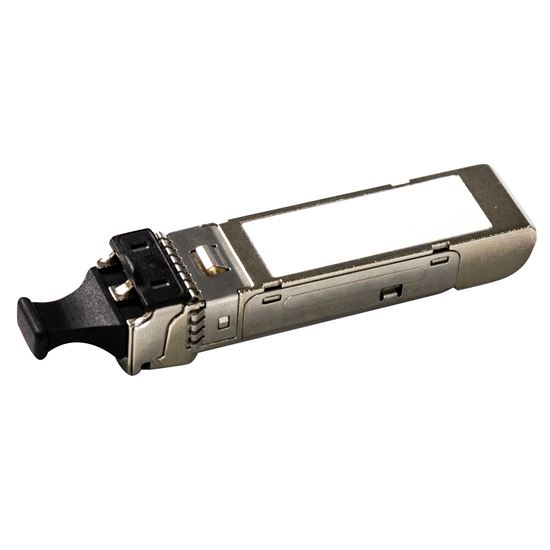

CARELINK 100Mb LC Multimode SFP Module. 2km. RoHS Compliant. 1310
100Mb LC Multimode SFP Module 2km. RoHS Compliant. 1310 nm Multi-mode Transceiver 2K
- Brand: Carelink
- Category: Network Accessories
- SKU: SFP-FEMM
- MPN: SFP-FEMM
CarelinkCARELINK 100Mb LC Multimode SFP Module. 2km. RoHS Compliant. 1310
Overview
CARELINK 100Mb LC Multimode SFP Module. 2km. RoHS Compliant. 1310 nm Multi-mode Transceiver (2km). 15Mbps. Fast Ethernet. Operation Range -10C~+70C. CISCO & Generic Compatible
Specifications
Spec
| Spec | Absolute Maximum Ratings |
|---|
Data Rate - B
| Data Rate - B | 10 155 200 Mb/s |
|---|
Supply Current
| Supply Current | Transmitter Electro-optical Characteristics |
|---|
Operating Current
| Operating Current | Recommended Operating Conditions |
|---|
Data Rate - B (27)
| Data Rate - B (27) | 10 155 200 Mb/s |
|---|
PARAMETER - SYMBOL
| PARAMETER - SYMBOL | MIN MAX UNITS NOTE |
|---|
Input Voltage - VIN
| Input Voltage - VIN | -0.5 Vcc V |
|---|
Supply Current (14)
| Supply Current (14) | Vcc = 3.1 V to 3.5 V, TC = 0 ºC to 70 ºC (-40 °C to 85 °C) |
|---|
Supply Voltage - Vcc
| Supply Voltage - Vcc | -0.5 4.0 V |
|---|
Extinction Ratio - ER
| Extinction Ratio - ER | 10 dB Average |
|---|
PARAMETER - SYMBOL (8)
| PARAMETER - SYMBOL (8) | MIN MAX UNITS NOTE |
|---|
Center Wavelength - λc
| Center Wavelength - λc | 1270 1310 1380 nm |
|---|
Operating Current - IOP
| Operating Current - IOP | 400 mA |
|---|
PARAMETER - SYMBOL (15)
| PARAMETER - SYMBOL (15) | MIN TYP. MAX UNITS NOTE |
|---|
PARAMETER - SYMBOL (26)
| PARAMETER - SYMBOL (26) | MIN TYP. MAX UNITS NOTE |
|---|
Storage Temperature - TS
| Storage Temperature - TS | -40 85 ºC |
|---|
Differential Input Volta0
| Differential Input Volta0 | Receiver Electro-optical Characteristics |
|---|
Supply Voltage - Vcc (11)
| Supply Voltage - Vcc (11) | 3.1 3.5 V |
|---|
Spectral Width (RMS) - Δλ
| Spectral Width (RMS) - Δλ | nm |
|---|
Supply Current - ITX + IRX
| Supply Current - ITX + IRX | 300 mA |
|---|
Loss of Signal-Asserted - P A
| Loss of Signal-Asserted - P A | -32 dBm Average |
|---|
Differential Input Volta0 (25)
| Differential Input Volta0 (25) | Vcc = 3.1 V to 3.5 V, TA = 10 ºC to 70 ºC (-20 ºC to 85 °C) |
|---|
Case Operating Temperature - Tc
| Case Operating Temperature - Tc | -10 70 ºC CL-SFP-31-2/155 |
|---|
Loss of Signal-Deasserted - P D
| Loss of Signal-Deasserted - P D | -47 dBm Average |
|---|
Case Operating Temperature - -40
| Case Operating Temperature - -40 | 85 ºC CL-SFP-31-2/155I |
|---|
Rise/Fall Time, (10-90%) - Tℵf
| Rise/Fall Time, (10-90%) - Tℵf | 3 ps |
|---|
Loss of Signal-Hysteresis - PA-PD
| Loss of Signal-Hysteresis - PA-PD | 1.0 dB |
|---|
Operating Center Wavelength - λc
| Operating Center Wavelength - λc | 1260 1600 nm |
|---|
Differential Input Volta0 - V DIFF
| Differential Input Volta0 - V DIFF | 0.4 2.0 v |
|---|
Optical Input Power-maximum - P IN
| Optical Input Power-maximum - P IN | -8 dBm Note 1 |
|---|
Differential Output Voltage - V Diff
| Differential Output Voltage - V Diff | 0.5 1.8 V |
|---|
Data Output Rise, Fall Time (10−90%) - Tnf
| Data Output Rise, Fall Time (10−90%) - Tnf | 1 2 ns |
|---|
Optical Input Power-minimum (Sensitivity) - P IN
| Optical Input Power-minimum (Sensitivity) - P IN | -31 dBm Note 1 |
|---|
Receiver Loss of Signal Output Voltage-Low - RX_LOSL
| Receiver Loss of Signal Output Voltage-Low - RX_LOSL | 0 0.5 V |
|---|
Output Optical Power50/125pm fiber, NA=0.20) - P out
| Output Optical Power50/125pm fiber, NA=0.20) - P out | -23.5 -14 dBm Average |
|---|
Receiver Loss of Signal Output Voltage-High - RX_LOSH
| Receiver Loss of Signal Output Voltage-High - RX_LOSH | 2.4 Vcc V |
|---|
Data Rate Output Optical Power62.5/125pm fiber, NA=0.275 - P out
| Data Rate Output Optical Power62.5/125pm fiber, NA=0.275 - P out | -20 -14 dBm Average |
|---|
$62.09inc GST
