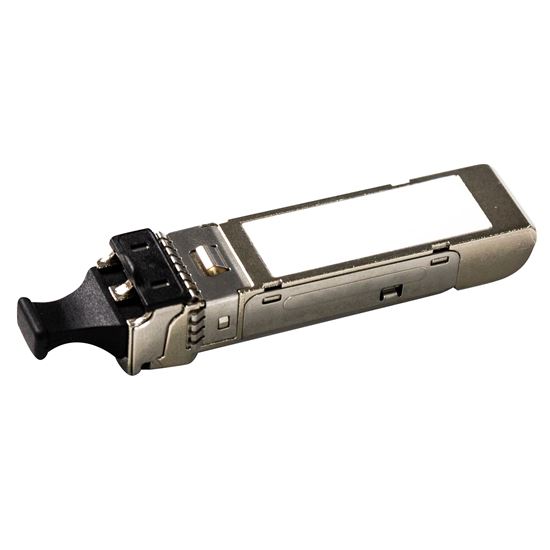

CARELINK 10G LC Duplex Single-mode SFP+ Module.
10G LC Duplex Single-mode SFP+ Module. 40km w/ DOM Function. HP
- Brand: Carelink
- Category: Network Accessories
- SKU: SFP-10G-ERHP
- MPN: SFP-10G-ERHP
CarelinkCARELINK 10G LC Duplex Single-mode SFP+ Module.
- SKU
- CNZ-CD-003365
- MPN
- SFP-10G-ERHP
Overview
CARELINK 10G LC Duplex Single-mode SFP+ Module. 40km with DOM Function. HP & Generic Brand Compatible. Wavelength:1550nm. 0C~+70C.
Specifications
Spec
| Spec | Absolute Maximum Ratings |
|---|
Output Eye
| Output Eye | Compliant with IEEE802.3z |
|---|
Supply Current
| Supply Current | Transmitter Electro-optical Characteristics |
|---|
Operating Current
| Operating Current | Recommended Operating Conditions |
|---|
PARAMETER - SYMBOL
| PARAMETER - SYMBOL | MIN MAX UNITS NOTE |
|---|
Input Voltage - VIN
| Input Voltage - VIN | -0.5 Vcc V |
|---|
Supply Current (13)
| Supply Current (13) | Vcc = 3.1 V to 3.5 V, TC = 0 ºC to 70 ºC |
|---|
Supply Voltage - Vcc
| Supply Voltage - Vcc | -0.5 4.0 V |
|---|
Extinction Ratio - ER
| Extinction Ratio - ER | 3.5 dB |
|---|
PARAMETER - SYMBOL (8)
| PARAMETER - SYMBOL (8) | MIN MAX UNITS NOTE |
|---|
Center Wavelength - λc
| Center Wavelength - λc | 1510 1550 1570 nm |
|---|
Operating Current - IOP
| Operating Current - IOP | 400 mA |
|---|
PARAMETER - SYMBOL (14)
| PARAMETER - SYMBOL (14) | MIN TYP. MAX UNITS NOTE |
|---|
PARAMETER - SYMBOL (28)
| PARAMETER - SYMBOL (28) | MIN TYP. MAX UNITS NOTE |
|---|
Storage Temperature - TS
| Storage Temperature - TS | -40 85 ºC |
|---|
Coupled Power Ratio - CPR
| Coupled Power Ratio - CPR | 9 dB |
|---|
Differential Input Volta0
| Differential Input Volta0 | Receiver Electro-optical Characteristics |
|---|
Optical Return Loss - ORL
| Optical Return Loss - ORL | 12 db |
|---|
Spectral Width (RMS) - Δλ
| Spectral Width (RMS) - Δλ | 1 nm |
|---|
Supply Current - ITX + IRX
| Supply Current - ITX + IRX | 250 mA |
|---|
Loss of Signal-Asserted - P A
| Loss of Signal-Asserted - P A | -12 dBm |
|---|
Differential Input Volta0 (27)
| Differential Input Volta0 (27) | Vcc = 3.1 V to 3.5 V, TA = 0 ºC to 70 ºC (-20 ºC to 85 °C) |
|---|
Relative Intensity Noise - RIN
| Relative Intensity Noise - RIN | -128 dB/Hz |
|---|
Case Operating Temperature - Tc
| Case Operating Temperature - Tc | 0 70 ºC CL-SFP+ ER 40 |
|---|
Loss of Signal-Deasserted - P D
| Loss of Signal-Deasserted - P D | -20 dBm |
|---|
Rise/Fall Time, (20-80%) - Tℵf
| Rise/Fall Time, (20-80%) - Tℵf | ps |
|---|
Operating Center Wavelength - λc
| Operating Center Wavelength - λc | 1510 1565 nm |
|---|
Differential Input Volta0 - V DIFF
| Differential Input Volta0 - V DIFF | 0.4 2.0 v |
|---|
Optical Input Power-maximum - P IN
| Optical Input Power-maximum - P IN | +0.5 dBm BER < 10-12 |
|---|
Differential Output Voltage - V Diff
| Differential Output Voltage - V Diff | 0.5 1.2 V |
|---|
Max. Pout TX-DISABLE Asserted - P OFF
| Max. Pout TX-DISABLE Asserted - P OFF | -45 dBm |
|---|
Case Operating Temperature - Supply Voltage
| Case Operating Temperature - Supply Voltage | Vcc 3.1 85 V |
|---|
Data Output Rise, Fall Time (20-80%) - T rf
| Data Output Rise, Fall Time (20-80%) - T rf | 0.35 ns |
|---|
Optical Input Power-minimum (Sensitivity) - P IN
| Optical Input Power-minimum (Sensitivity) - P IN | -18 dBm BER < 10-12 |
|---|
Receiver Loss of Signal Output Voltage-Low - RX_LOSL
| Receiver Loss of Signal Output Voltage-Low - RX_LOSL | 0 0.5 V |
|---|
Receiver Loss of Signal Output Voltage-High - RX_LOSH
| Receiver Loss of Signal Output Voltage-High - RX_LOSH | 2.4 Vcc V |
|---|
Output Optical Power(50/125µm fiber, NA=0.20)(62.5/125µm fiber, NA=0.275) - P ou
| Output Optical Power(50/125µm fiber, NA=0.20)(62.5/125µm fiber, NA=0.275) - P ou | -6 -0.5 dBm Average |
|---|
$530.14inc GST
