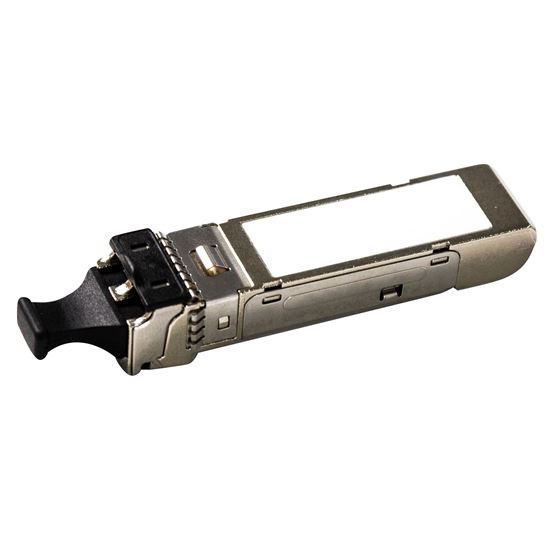

CARELINK 1.25G LC Duplex Multimode SFP Module. 550m with DOM Function.
1.25G LC Duplex Multimode SFP Module. 550m DOM Function HP & Generic Br& Compatible.
- Brand: Carelink
- Category: Network Accessories
- SKU: SFP-SX550HP-D
- MPN: SFP-SX550HP-D
CarelinkCARELINK 1.25G LC Duplex Multimode SFP Module. 550m with DOM Function.
- SKU
- CNZ-CD-003355
- MPN
- SFP-SX550HP-D
Overview
CARELINK 1.25G LC Duplex Multimode SFP Module. 550m with DOM Function. HP & Generic Brand Compatible. Wavelength: 850nm. 0C~+70C.
Specifications
Spec
| Spec | Absolute Maximum Ratings |
|---|
Output Eye
| Output Eye | Compliant with IEEE802.3z |
|---|
Supply Current
| Supply Current | Transmitter Electro-optical Characteristics |
|---|
Operating Current
| Operating Current | Recommended Operating Conditions |
|---|
PARAMETER - SYMBOL
| PARAMETER - SYMBOL | MIN MAX UNITS NOTE |
|---|
Input Voltage - VIN
| Input Voltage - VIN | -0.5 Vcc V |
|---|
Supply Current (14)
| Supply Current (14) | Vcc = 3.1 V to 3.5 V, TC = 0 ºC to 70 ºC (-20 °C to 85 °C) |
|---|
Supply Voltage - Vcc
| Supply Voltage - Vcc | -0.5 4 V |
|---|
Extinction Ratio - ER
| Extinction Ratio - ER | 9 dB |
|---|
PARAMETER - SYMBOL (8)
| PARAMETER - SYMBOL (8) | MIN MAX UNITS NOTE |
|---|
Center Wavelength - λc
| Center Wavelength - λc | 830 850 860 nm |
|---|
Operating Current - IOP
| Operating Current - IOP | 400 mA |
|---|
PARAMETER - SYMBOL (15)
| PARAMETER - SYMBOL (15) | MIN TYP. MAX UNITS NOTE |
|---|
PARAMETER - SYMBOL (29)
| PARAMETER - SYMBOL (29) | MIN TYP. MAX UNITS NOTE |
|---|
Storage Temperature - TS
| Storage Temperature - TS | -40 85 ºC |
|---|
Coupled Power Ratio - CPR
| Coupled Power Ratio - CPR | 9 dB |
|---|
Differential Input Volta0
| Differential Input Volta0 | Receiver Electro-optical Characteristics |
|---|
Optical Return Loss - ORL
| Optical Return Loss - ORL | 12 db |
|---|
Supply Voltage - Vcc (11)
| Supply Voltage - Vcc (11) | 3.1 85 |
|---|
Spectral Width (RMS) - Δλ
| Spectral Width (RMS) - Δλ | 0.85 nm |
|---|
Supply Current - ITX + IRX
| Supply Current - ITX + IRX | 250 mA |
|---|
Loss of Signal-Asserted - P A
| Loss of Signal-Asserted - P A | -18 dBm |
|---|
Differential Input Volta0 (28)
| Differential Input Volta0 (28) | Vcc = 3.1 V to 3.5 V, TA = 0 ºC to 70 ºC (-20 ºC to 85 °C) |
|---|
Relative Intensity Noise - RIN
| Relative Intensity Noise - RIN | -117 dB/Hz |
|---|
Case Operating Temperature - Tc
| Case Operating Temperature - Tc | 0 70 ºC CL-SFP SX 550 |
|---|
Loss of Signal-Deasserted - P D
| Loss of Signal-Deasserted - P D | -35 dBm |
|---|
Case Operating Temperature - -20
| Case Operating Temperature - -20 | 85 ºC CL-SFP SX 550I |
|---|
Rise/Fall Time, (20-80%) - Tℵf
| Rise/Fall Time, (20-80%) - Tℵf | 260 ps |
|---|
Operating Center Wavelength - λc
| Operating Center Wavelength - λc | 770 860 nm |
|---|
Differential Input Volta0 - V DIFF
| Differential Input Volta0 - V DIFF | 0.4 20 v |
|---|
Optical Input Power-maximum - P IN
| Optical Input Power-maximum - P IN | 0 dBm BER < 10-12 |
|---|
Differential Output Voltage - V Diff
| Differential Output Voltage - V Diff | 0.5 1.2 V |
|---|
Max. Pout TX-DISABLE Asserted - P OFF
| Max. Pout TX-DISABLE Asserted - P OFF | -45 dBm |
|---|
Data Output Rise, Fall Time (20-80%) - T rf
| Data Output Rise, Fall Time (20-80%) - T rf | 0.35 ns |
|---|
Optical Input Power-minimum (Sensitivity) - P IN
| Optical Input Power-minimum (Sensitivity) - P IN | -18 dBm BER < 10-12 |
|---|
Receiver Loss of Signal Output Voltage-Low - RX_LOSL
| Receiver Loss of Signal Output Voltage-Low - RX_LOSL | 0 0.5 V |
|---|
Receiver Loss of Signal Output Voltage-High - RX_LOSH
| Receiver Loss of Signal Output Voltage-High - RX_LOSH | 2.4 Vcc V |
|---|
Output Optical Power(50/125pm fiber, NA=0.20)(62.5/125pm fiber, NA=0.275) - Pout
| Output Optical Power(50/125pm fiber, NA=0.20)(62.5/125pm fiber, NA=0.275) - Pout | -9.5 -4 dBm |
|---|
$56.34inc GST
