CARELINK 1.25G Single-mode WDM SFP LC Modules. Distance: 3km.

1.25G Single-mode WDM SFP LC Modules. Distance: 3km. HP & Generic Br& Compatible.

  • Brand: Carelink
  • Category: Networking
  • SKU: SFP-WDM-3HP
  • MPN: SFP-WDM-3HP
Carelink

CARELINK 1.25G Single-mode WDM SFP LC Modules. Distance: 3km.

SKU
CNZ-CD-003349
MPN
SFP-WDM-3HP
CARELINK 1.25G Single-mode WDM SFP LC Modules. Distance: 3km. — Carelink

Overview

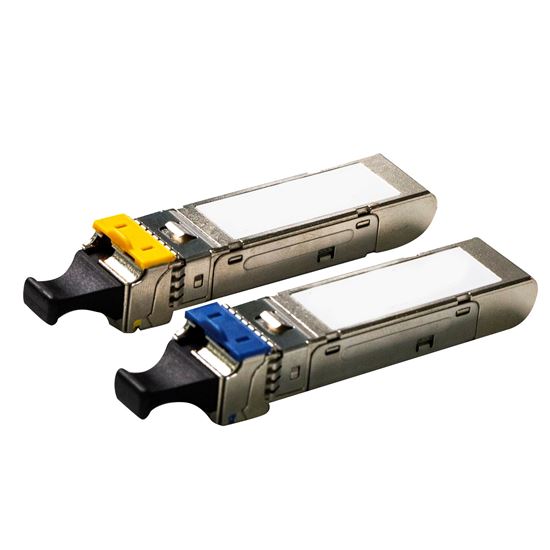

CARELINK 1.25G Single-mode WDM SFP LC Modules. Distance: 3km. HP & Generic Brand Compatible. Wavelength: 1310/1550nm. 0C~+70C. ** SOLD AS A PAIR TX & RX Modules.

Specifications

Spec

SpecAbsolute Maximum Ratings

Output Eye

Output EyeCompliant with IEEE802.3z

Supply Current

Supply CurrentTransmitter Electro-optical Characteristics

Operating Current

Operating CurrentRecommended Operating Conditions

Total Jitter - TJ

Total Jitter - TJ227 ps

PARAMETER - SYMBOL

PARAMETER - SYMBOLMIN MAX UNITS NOTE

Input Voltage - VIN

Input Voltage - VIN-0.5 Vcc V

Output Current - Io

Output Current - Io50 mA

Supply Current (14)

Supply Current (14)Vcc = 3.1 V to 3.5 V, TC = 0 ºC to 70 ºC (-40 °C to 85 °C)

Supply Voltage - Vcc

Supply Voltage - Vcc-0.5 4.0 V

Extinction Ratio - ER

Extinction Ratio - ER9 dB

PARAMETER - SYMBOL (8)

PARAMETER - SYMBOL (8)MIN MAX UNITS NOTE

Center Wavelength - λc

Center Wavelength - λc1270 1310 1355 nm

Operating Current - IOP

Operating Current - IOP400 mA

Optical isolation - ISO

Optical isolation - ISO-40 db λ=1480~1580nm

PARAMETER - SYMBOL (15)

PARAMETER - SYMBOL (15)MIN TYP. MAX UNITS NOTE

PARAMETER - SYMBOL (28)

PARAMETER - SYMBOL (28)MIN TYP. MAX UNITS NOTE

Storage Temperature - TS

Storage Temperature - TS-40 85 ºC

Differential Input Volta0

Differential Input Volta0Receiver Electro-optical Characteristics

Optical Return Loss - ORL

Optical Return Loss - ORL14 db

Supply Voltage - Vcc (11)

Supply Voltage - Vcc (11)3.1 3.5 V

Spectral Width (RMS) - Δλ

Spectral Width (RMS) - Δλ2.5 nm

Supply Current - ITX + IRX

Supply Current - ITX + IRX300 mA

Loss of Signal-Asserted - P A

Loss of Signal-Asserted - P A-21 dBm λ=1480~1580nm

Differential Input Volta0 (27)

Differential Input Volta0 (27)Vcc = 3.1 V to 3.5 V, TA = 0 ºC to 70 ºC (-20 ºC to 85 °C)

Relative Intensity Noise - RIN

Relative Intensity Noise - RIN-120 dB/Hz

Case Operating Temperature - Tc

Case Operating Temperature - Tc0 70 ºC CL-SFP-WDM-10-31

Loss of Signal-Deasserted - P D

Loss of Signal-Deasserted - P D-35 dBm

Case Operating Temperature - -40

Case Operating Temperature - -4085 ºC CL-SFP-WDM-10-31DD

Rise/Fall Time, (20-80%) - Tℵf

Rise/Fall Time, (20-80%) - Tℵf260 ps

Operating Center Wavelength - λc

Operating Center Wavelength - λc1480 1580 nm

Differential Input Volta0 - V DIFF

Differential Input Volta0 - V DIFF0.4 2.0 v

Optical Input Power-maximum - P IN

Optical Input Power-maximum - P IN-1 dBm BER < 10-12

Differential Output Voltage - V Diff

Differential Output Voltage - V Diff0.5 1.2 V

Max. Pout TX-DISABLE Asserted - P OFF

Max. Pout TX-DISABLE Asserted - P OFF-45 dBm

Data Output Rise, Fall Time (20-80%) - T rf

Data Output Rise, Fall Time (20-80%) - T rf0.35 ns

Optical Input Power-minimum (Sensitivity) - P IN

Optical Input Power-minimum (Sensitivity) - P IN-21 dBm BER < 10-12

Receiver Loss of Signal Output Voltage-Low - RX_LOSL

Receiver Loss of Signal Output Voltage-Low - RX_LOSL0 0.5 V

Receiver Loss of Signal Output Voltage-High - RX_LOSH

Receiver Loss of Signal Output Voltage-High - RX_LOSH2.4 Vcc V

Output Optical Power(50/125pm fiber, NA=0.20)(62.5/125pm fiber, NA=0.275) - P ou

Output Optical Power(50/125pm fiber, NA=0.20)(62.5/125pm fiber, NA=0.275) - P ou-9 -3 dBm Average

Questions

$113.84inc GST
