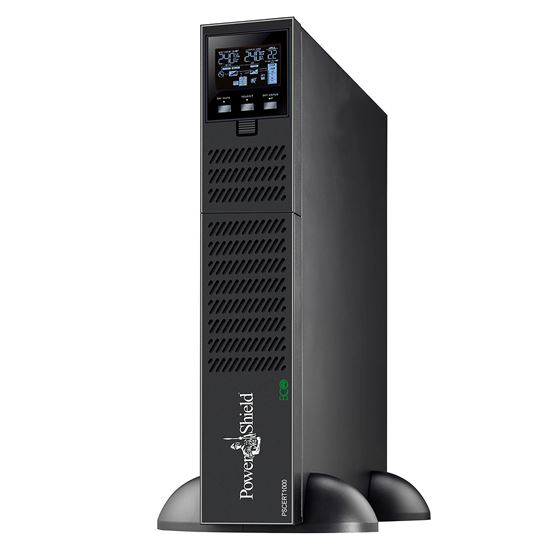

POWERSHIELD Centurion RT 1000VA Long Run Online UPS. No Internal
- Brand: Powershield
- Category: Batteries
- SKU: PSCERT1000L
- MPN: PSCERT1000L
Powershield
POWERSHIELD Centurion RT 1000VA Long Run Online UPS. No Internal
- Our SKU
- MPN
- Rating
- No reviews yet
−28%
Overview
POWERSHIELD Centurion RT 1000VA Long Run Online UPS. No Internal Batteries, PSRTBB6 or External battery bank must be used. 8A Internal Charger.
Specifications
Phase
| Phase | Single phase with ground |
|---|
Weight
| Weight | OPERATING ENVIRONMENT |
|---|
Capacity
| Capacity | 1000VA/900W |
|---|
Humidity
| Humidity | 20% ~ 90% (RH Non-condensing) |
|---|
Software
| Software | PowerShield® NetGuard® software - supports Windows-based operating systems, Linux, Unix and Mac |
|---|
Topology
| Topology | True online double- conversion, Pure Sine Wave |
|---|
Transfer
| Transfer | EFFICIENCY |
|---|
Interface
| Interface | USB or RS232 as standard, Intelligent slot for PSSNMP, PSModbus or PSAS400 dry contact |
|---|
PSCERT1000L
| PSCERT1000L | RT BATTERY BANKS: PSRTBB12 |
|---|
Temperature
| Temperature | 0°C ~ 40°C |
|---|
Battery Mode
| Battery Mode | 86% |
|---|
Topology (3)
| Topology (3) | INPUT |
|---|
Audible Alarm
| Audible Alarm | Battery Mode, Bypass Mode, Low Battery (Batt. Mode), Fault, Overload |
|---|
Humidity (40)
| Humidity (40) | COMPLIANCE |
|---|
Weight - 8.4kg
| Weight - 8.4kg | 22kg |
|---|
Frequency Range
| Frequency Range | 40Hz ~ 70Hz |
|---|
Full Protection
| Full Protection | Overload, discharge, thermal, short circuit and overcharge protection |
|---|
Safety/EMC/RoHS
| Safety/EMC/RoHS | EN62040-1-1 2003, IEC60950-1-1/EN62040-2 2006/Directive 2011/65/EU |
|---|
Surge Protection
| Surge Protection | 984 Joules/22000A |
|---|
Battery Mode (22)
| Battery Mode (22) | BATTERY |
|---|
LCD Display/Alarm
| LCD Display/Alarm | UPS Status, Load & Battery Level, Input/Output Voltage, Batt. Time Remaining and Fault Indicators |
|---|
Audible Alarm (34)
| Audible Alarm (34) | PHYSICAL |
|---|
Current Crest Ratio
| Current Crest Ratio | 3:1 (max.) |
|---|
ECO Mode (Advanced)
| ECO Mode (Advanced) | 96% |
|---|
Output Power Factor
| Output Power Factor | 0.9 |
|---|
Surge Protection (29)
| Surge Protection (29) | COMMUNICATIONS AND MANAGEMENT |
|---|
Typical Recharge Time
| Typical Recharge Time | 4 hours recover to 90% capacity (for the standard model only) |
|---|
Charging Current (max.)
| Charging Current (max.) | Standard Models - 1.5Amp. Long Run Models - 1Amp/2Amp/4Amp/6Amp selectable (factory default is 6Amp) |
|---|
Power Factor Correction
| Power Factor Correction | ≥0.99 @ nominal voltage (100% load) |
|---|
Battery Number (12Vx9AH)
| Battery Number (12Vx9AH) | x 3 |
|---|
Output Voltage (AC Mode)
| Output Voltage (AC Mode) | 240V AC (Selectable 200/208/220/230/240V AC) |
|---|
Charging Current (max.) (26)
| Charging Current (max.) (26) | PROTECTION |
|---|
Frequency Range (Batt. Mode)
| Frequency Range (Batt. Mode) | 50Hz or 60Hz ±1Hz |
|---|
Power Factor Correction (11)
| Power Factor Correction (11) | OUTPUT |
|---|
Transfer - Inverter to Bypass
| Transfer - Inverter to Bypass | Pure Sine Wave |
|---|
Voltage Regulation (Batt. Mode)
| Voltage Regulation (Batt. Mode) | ± 1% |
|---|
Transfer - AC Mode to Batt. Mode
| Transfer - AC Mode to Batt. Mode | 4ms (Typical) |
|---|
Voltage Range - Low Line Comeback
| Voltage Range - Low Line Comeback | 175V/155V/135V/25V AC ±5% |
|---|
Voltage Range - Low Line Transfer
| Voltage Range - Low Line Transfer | 160V/140V/120V/110V AC ±5% (based on load percentage 100%-80%/80%-70%/70%-60%/60%-0) |
|---|
Voltage Range - High Line Comeback
| Voltage Range - High Line Comeback | 290V AC ±5% |
|---|
Voltage Range - High Line Transfer
| Voltage Range - High Line Transfer | 300V AC ±5% |
|---|
Dimension, (D x W x H) - 380 x 438 x 88mm
| Dimension, (D x W x H) - 380 x 438 x 88mm | 480 x 438 x 88mm |
|---|
Questions
$1,451.29inc GST
