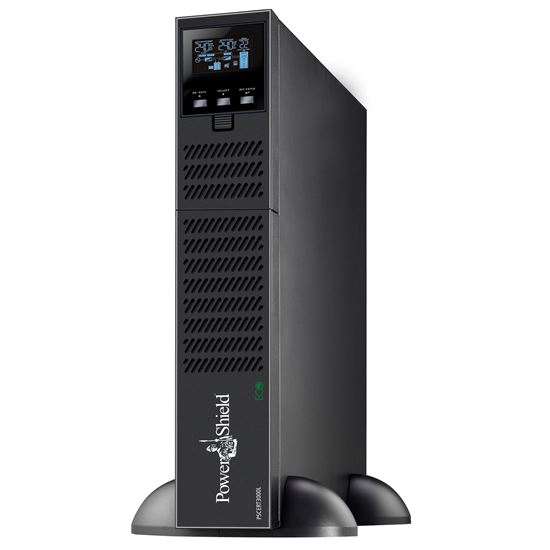

POWERSHIELD Centurion RT 3000VA/ Long Run Online UPS. NO INTERNAL
- Brand: Powershield
- Category: Batteries
- SKU: PSCERT3000L
- MPN: PSCERT3000L
Powershield
POWERSHIELD Centurion RT 3000VA/ Long Run Online UPS. NO INTERNAL
- SKU
- CNZ-CD-004556
- MPN
- PSCERT3000L
- Rating
- No reviews yet
−28%
Overview
POWERSHIELD Centurion RT 3000VA/ Long Run Online UPS. NO INTERNAL Batteries, PSRTBB12 or External battery bank must be used.
Specifications
Phase
| Phase | Single phase with ground |
|---|
Capacity
| Capacity | 3000VA/2700W |
|---|
Humidity
| Humidity | 20 - 90% (RH Non-condensing) |
|---|
Software
| Software | PowerShield® NetGuard® software - supports Windows, Linux, Unix and Mac based operating systems |
|---|
Topology
| Topology | True online double- conversion,Pure Sine Wave |
|---|
Interface
| Interface | USB or RS232 as standard, Intelligent slot for PSSNMP, PSModbus or PSAS400 dry contact |
|---|
Noise Level
| Noise Level | < 50dBA @ 1 Meter |
|---|
Temperature
| Temperature | 0 - 40°C |
|---|
Weight (kg)
| Weight (kg) | 26.8 & 11.6 |
|---|
Battery Mode
| Battery Mode | 87% |
|---|
Topology (2)
| Topology (2) | INPUT |
|---|
Audible Alarm
| Audible Alarm | Battery Mode, Bypass Mode, Low Battery (Batt. Mode), Fault, Overload |
|---|
Frequency Range
| Frequency Range | 40Hz - 70Hz |
|---|
Full Protection
| Full Protection | Overload, discharge, thermal, short circuit and overcharge protection |
|---|
Noise Level (41)
| Noise Level (41) | COMPLIANCE |
|---|
Surge Protection
| Surge Protection | 984 Joules / 22000 Amps |
|---|
Weight (kg) (37)
| Weight (kg) (37) | OPERATING ENVIRONMENT |
|---|
Battery Mode (22)
| Battery Mode (22) | BATTERY |
|---|
LCD Display/Alarm
| LCD Display/Alarm | UPS Status, Load & Battery Level, Input/Output Voltage, Batt. Time Remaining and Fault Indicators |
|---|
Audible Alarm (34)
| Audible Alarm (34) | PHYSICAL |
|---|
Current Crest Ratio
| Current Crest Ratio | 3:1 (max.) |
|---|
ECO Mode (Advanced)
| ECO Mode (Advanced) | 97% |
|---|
Output Power Factor
| Output Power Factor | 0.9 |
|---|
Safety / EMC / RoHS
| Safety / EMC / RoHS | EN62040-1-1 2003, IEC60950-1-1 / EN62040-2 2006 / Directive 2011/65/EU |
|---|
Surge Protection (29)
| Surge Protection (29) | COMMUNICATIONS AND MANAGMENT |
|---|
Typical Recharge Time
| Typical Recharge Time | 4 hours recover to 90% capacity (for standard model only) |
|---|
Waveform (Batt. Mode)
| Waveform (Batt. Mode) | Pure Sine Wave |
|---|
Charging Current (max.)
| Charging Current (max.) | Standard Models - 1.5Amp. Long Run Models - 1Amp / 2Amp / 4Amp / 6Amp selectable (factory default is 6Amp) |
|---|
Power Factor Correction
| Power Factor Correction | >0.99 @ nominal voltage (100% load) |
|---|
Output Voltage (AC Mode)
| Output Voltage (AC Mode) | 240Vac (Selectable 200/208/220/230/240Vac) |
|---|
Battery Number (12 V*9AH)
| Battery Number (12 V*9AH) | x 6 |
|---|
Dimension, (D x W x H) mm
| Dimension, (D x W x H) mm | 600 x 438 x 88 |
|---|
Waveform (Batt. Mode) (19)
| Waveform (Batt. Mode) (19) | EFFICIENCY |
|---|
Charging Current (max.) (26)
| Charging Current (max.) (26) | PROTECTION |
|---|
Frequency Range (Batt. Mode)
| Frequency Range (Batt. Mode) | 50Hz or 60Hz ±1Hz |
|---|
Power Factor Correction (10)
| Power Factor Correction (10) | OUTPUT |
|---|
Transfer - Inverter to Bypass
| Transfer - Inverter to Bypass | 4ms (Typical) |
|---|
Voltage Regulation (Batt. Mode)
| Voltage Regulation (Batt. Mode) | ± 1% |
|---|
Transfer - AC Mode to Batt. Mode
| Transfer - AC Mode to Batt. Mode | Zero |
|---|
Voltage Range - Low Line Comeback
| Voltage Range - Low Line Comeback | 175Vac / 155Vac / 135Vac / 125Vac ± 5 % |
|---|
Voltage Range - Low Line Transfer
| Voltage Range - Low Line Transfer | 160Vac / 140Vac / 120 / 110Vac ± 5 % (based on load percentage 100%-80% / 80%-70% / 70%-60% / 60%-0) |
|---|
Voltage Range - High Line Comeback
| Voltage Range - High Line Comeback | 290Vac ± 5 % |
|---|
Voltage Range - High Line Transfer
| Voltage Range - High Line Transfer | 300Vac ± 5 % |
|---|
Questions
$2,455.24inc GST
