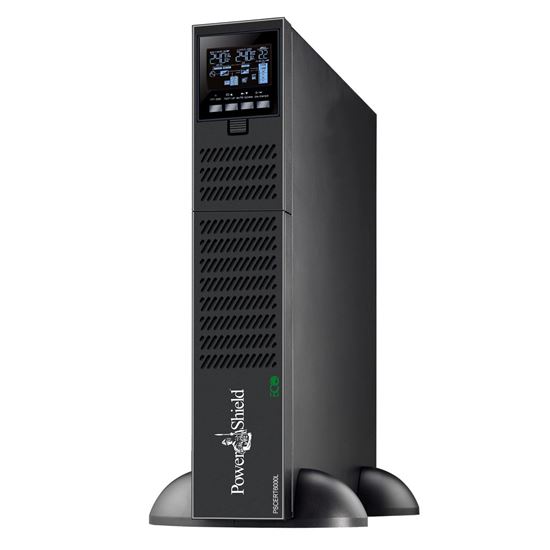

POWERSHIELD Centurion RT 6000VA Long run model True On-line double
- Brand: Powershield
- SKU: PSCERT6000L
- MPN: PSCERT6000L
Powershield
POWERSHIELD Centurion RT 6000VA Long run model True On-line double
- SKU
- CNZ-CD-004557
- MPN
- PSCERT6000L
- Rating
- No reviews yet
−28%
Overview
POWERSHIELD Centurion RT 6000VA Long run model True On-line double conversion Rack/Tower UPS. Needs PSRTBB16. Includes large internal charger. Requires a Dedicated 40Amp Hard Wired Circuit
Specifications
Spec
| Spec | INPUT |
|---|
Phase
| Phase | Single phase with ground |
|---|
OUTPUT
| OUTPUT | Output Power Factor: 0.9 |
|---|
Altitude
| Altitude | <1000m |
|---|
Humidity
| Humidity | 95% (RH Non-condensing) |
|---|
Optional
| Optional | Intelligent slot for PSSNMPV4, PSModbus or PSAS400 dry contact |
|---|
Overload
| Overload | AC Mode: 100%~110%: 10min; 110%~130%: 1min; >130%: 1secBattery Mode: 100%~110%: 30sec; 110%~130%: 10sec; >130%: 1sec |
|---|
Software
| Software | PowerShield® NetGuard® software - supports Windows, Linux, Unix and Mac based operating systems |
|---|
Interface
| Interface | USB and RS232 as standard |
|---|
Noise Level
| Noise Level | Less than 55dB@1m |
|---|
Temperature
| Temperature | 0°C~40°C |
|---|
Battery Mode
| Battery Mode | <93% |
|---|
Optional (27)
| Optional (27) | PHYSICAL |
|---|
Transfer Time
| Transfer Time | Line to Battery: 0msInverter to Bypass: 0msInverter to Eco: < 10ms |
|---|
Battery Number
| Battery Number | Optional strings of 16 or 20 batteries |
|---|
Output Voltage
| Output Voltage | 208/220/230/240V AC Selectable |
|---|
Frequency Range
| Frequency Range | 46Hz~54Hz@50Hz system; 56Hz~64Hz@60Hz system |
|---|
Battery Mode (19)
| Battery Mode (19) | BATTERY |
|---|
Transfer Time (16)
| Transfer Time (16) | EFFICIENCY |
|---|
Current Crest Ratio
| Current Crest Ratio | 3:1 (max.) |
|---|
ECO Mode (Advanced)
| ECO Mode (Advanced) | <94% |
|---|
Harmonic Distortion
| Harmonic Distortion | ≤1% @ 100% Linear Load; ≤4% @100% Non-linear Load |
|---|
AC Voltage Regulation
| AC Voltage Regulation | ±1% |
|---|
Typical Recharge Time
| Typical Recharge Time | According to an external battery pack |
|---|
Dimensions (D x W x H)
| Dimensions (D x W x H) | UPS Unit: 600x438x88mm [2U] (weight: 17kg)PSRTBB16 (16 batteries): 688x438x88mm [2U] (weight: 48kg)PSRTBB20 (20 batteries): 607x438x133mm [3U] (weight: 60kg) |
|---|
Charging Current (max.)
| Charging Current (max.) | 4A ± 10% |
|---|
Power Factor Correction
| Power Factor Correction | ≤0.99@nominal voltage (100% load) |
|---|
Voltage Range - Line Loss
| Voltage Range - Line Loss | 110V~300V AC@(0~60%) Load; 140V~300V @(60~80%) Load; 176V~300V AC@(80~100%) Load |
|---|
Dimensions (D x W x H) (29)
| Dimensions (D x W x H) (29) | OPERATING ENVIRONMENT |
|---|
Charging Current (max.) (23)
| Charging Current (max.) (23) | COMMUNICATIONS & MANAGEMENT |
|---|
Frequency Range (Batt. Mode)
| Frequency Range (Batt. Mode) | 50Hz±0.1Hz or 60Hz±0.1Hz |
|---|
Voltage Range - Low Line Comeback
| Voltage Range - Low Line Comeback | Low Line Loss Voltage +10V |
|---|
Voltage Range - High Line Comeback
| Voltage Range - High Line Comeback | High Line Loss Voltage -10V |
|---|
Frequency Range (Synchronized Range)
| Frequency Range (Synchronized Range) | 46Hz~54Hz@50Hz system56Hz~64Hz@60Hz system |
|---|
Questions
$4,920.84inc GST
