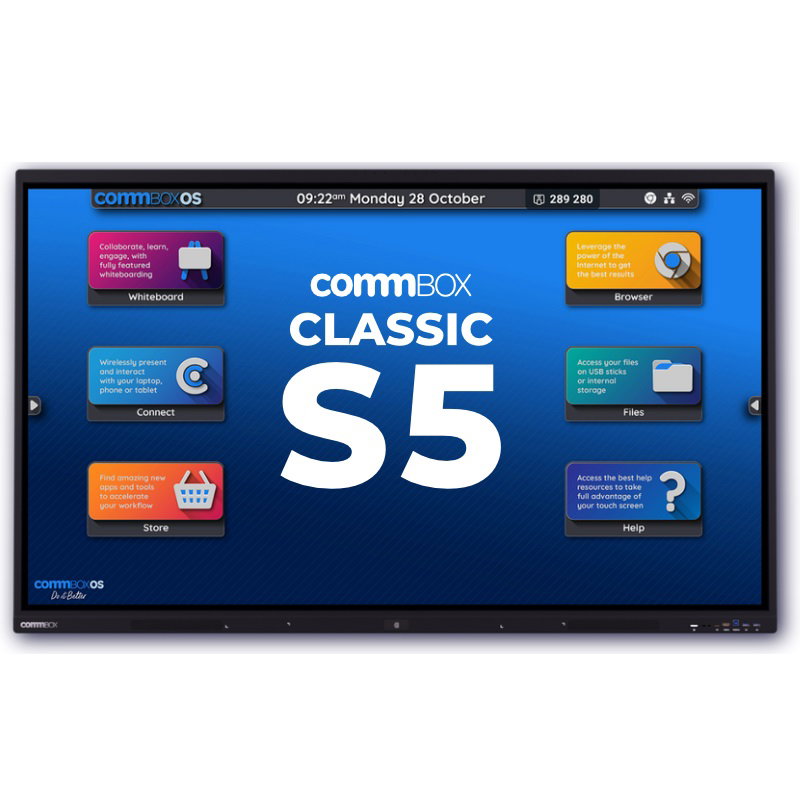

COMMBOX 65" 4K UHD INTERACTIVE CLASSIC DISPLAY (S5), 40-PT TOUCH, ANDROID

SKU: CNZ-DD-011125
MPN: CBIC65S5
Rating: No reviews yet

COMMBOX 65" 4K UHD INTERACTIVE CLASSIC DISPLAY (S5), 40-PT TOUCH, ANDROID — COMMBOX

Overview

Audio & Video > Large Format Displays

At a glance

RAM	8GB
ROM	128GB
Back	HDMI In x2, HDMI Out x1, USB-A 2.0 x1, USB-A 3.0 x2, USB-B Touch x1, VGA In x1, Audio In x1 - 3.5mm, S/PDIF Out x1, USB Type-C x1 - 15W charging, Display Port x1, RS-232 x1, LAN (RJ45) x2- 10/100M/1000 Mbps, OPS Slot (for Slot-In-PC or Android Box) x1, SD Card port x1, NFC Built in
VESA	600 x 400
Front	HDMI In x1, USB-A 3.0 x2, USB-B Touch x1, USB Type-C x1 - Data, 65W charging, Ethernet
MacOS	Dual Gestures
Weight	34.75kg
Speaker	2 x 25W

All 72 specifications

Specifications

RAM

RAM	8GB

ROM

ROM	128GB

Back

Back	HDMI In x2, HDMI Out x1, USB-A 2.0 x1, USB-A 3.0 x2, USB-B Touch x1, VGA In x1, Audio In x1 - 3.5mm, S/PDIF Out x1, USB Type-C x1 - 15W charging, Display Port x1, RS-232 x1, LAN (RJ45) x2- 10/100M/1000 Mbps, OPS Slot (for Slot-In-PC or Android Box) x1, SD Card port x1, NFC Built in

VESA

VESA	600 x 400

Front

Front	HDMI In x1, USB-A 3.0 x2, USB-B Touch x1, USB Type-C x1 - Data, 65W charging, Ethernet

MacOS

MacOS	Dual Gestures

Weight

Weight	34.75kg

Speaker

Speaker	2 x 25W

Altitude

Altitude	Below 5000 m

LCD Size

LCD Size	65 Inch

Pen Type

Pen Type	2 x Dual Tip Stylus

Stand by

Stand by	< 0.5W

Brightness

Brightness	400 cd/m2

IP Control

IP Control	Yes

Touch Tool

Touch Tool	Finger, Passive Stylus, Palm

Touch Type

Touch Type	Infrared Recognition

Orientation

Orientation	Landscape

Pen Holders

Pen Holders	Integrated magnetic holders

Screen Type

Screen Type	LCD

Wake on Lan

Wake on Lan	Yes

Architecture

Architecture	2 x Quad Core Processor

Aspect Ratio

Aspect Ratio	16:9

Bezel Colour

Bezel Colour	Black

Colour Gamat

Colour Gamat	72%

Product Size

Product Size	1488×908×86mm

Speaker Type

Speaker Type	Dual front facing

Touch Points

Touch Points	50

WIFI Chipset

WIFI Chipset	Removable WIFI 6 Module

Bezel Buttons

Bezel Buttons	Anti-microbial coating

Dynamic Ratio

Dynamic Ratio	5000:1

RS232 Control

RS232 Control	Yes

Response Time

Response Time	6.5ms

Sound channel

Sound channel	2

Viewing Angle

Viewing Angle	178°

WIFI Standard

WIFI Standard	802.11 b/g/n/a/ac/ax

Backlight Type

Backlight Type	D-LED

Life of Screen

Life of Screen	50,000 Hrs

Palm Rejection

Palm Rejection	Yes

System Version

System Version	CommBox OS Experience + Google EDLA

Touch Accuracy

Touch Accuracy	1mm

Chromium, Linux

Chromium, Linux	Single-touch

Glass Protection

Glass Protection	H6 Glass Low friction, Anti-Glare

Housing Material

Housing Material	Aluminium Plate

LCD Refresh Rate

LCD Refresh Rate	60 Hz

Operating System

Operating System	Android 14

Pen Tip Diameter

Pen Tip Diameter	3mm/7mm

Pressure Sensing

Pressure Sensing	Yes

Storage Humidity

Storage Humidity	10% - 90% Rh

Touch Resolution

Touch Resolution	32768 x 32768

Bluetooth Version

Bluetooth Version	5.3

Power Consumption

Power Consumption	135W

Shape Recognition

Shape Recognition	Yes

View Area (H)/(V)

View Area (H)/(V)	1428.48 x 803.52 mm

Android Resolution

Android Resolution	4k

Instant Annotation

Instant Annotation	Yes

Operation Humidity

Operation Humidity	10% - 90% RH

Power Requirements

Power Requirements	240V

Resolution (H)/(V)

Resolution (H)/(V)	3840 x 2160

Storage Temperature

Storage Temperature	-20 - 60 °C

Operation Temperature

Operation Temperature	0 - 40°C

Display Colours (10bit)

Display Colours (10bit)	1.07B

Power Consumption w'OPS

Power Consumption w'OPS	320W

WIFI Operating Distance

WIFI Operating Distance	0-10m

Wall-hanging screw spec

Wall-hanging screw spec	M8 x 25mm

Glass Type and Thickness

Glass Type and Thickness	3.2mm tempered glass- Mohs Level 7

Remote Device Management

Remote Device Management	Yes - CommBox Manage

WIFI Operating Frequency

WIFI Operating Frequency	2.4GHz/5GHz/6Ghz

Pen & Touch Differentiation

Pen & Touch Differentiation	Yes

Bluetooth Operating Distance

Bluetooth Operating Distance	0-10m

Bluetooth Operating Frequence

Bluetooth Operating Frequence	2.4GHz

Thickness of Machine & Wall Mount

Thickness of Machine & Wall Mount	116mm

Windows with Microsoft Ink Support

Windows with Microsoft Ink Support	Yes - Multi touch

Questions

$4,677.04inc GST
