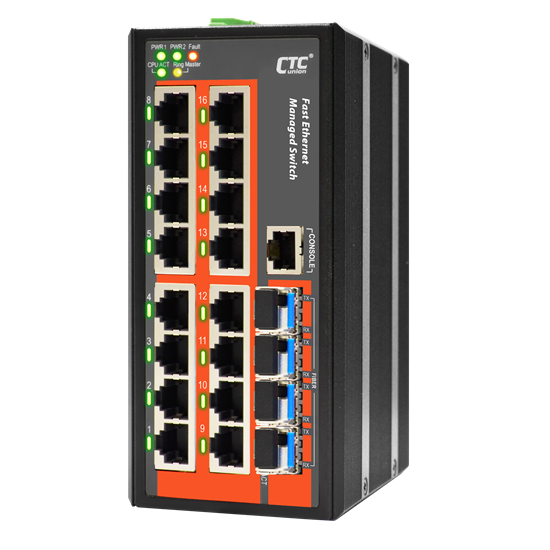

CTC UNION 16 Port Fast Ethernet Managed Switch.-10~60C. 16x 10/100Base-T(X), + 4x 100/1000 Base-X SFP (Total 20x ports). Power consumption V DC/W:12/10.8,24/10.6, & 48/12.5. Dinmount kit incl.
Specifications
EMC
EMC
CE
LED
LED
Per unit: Power 1 (Green), Power 2 (Green), Fault (Amber), CPU Act (Green), Ring Master (Yellow)
MTBF
MTBF
145,967hrs (MIL-HDBK-217)
Spec
Spec
Specifications
Shock
Shock
IEC 60068-2-27
Safety
Safety
UL60950-1
Weight
Weight
0.82kg
Console
Console
RS-232 (RJ-45)
Housing
Housing
Rugged Metal, IP30 Protection, Fanless
VLAN ID
VLAN ID
4094 IEEE802.1Q VLAN VID
Freefall
Freefall
IEC 60068-2-32
LED (33)
LED (33)
Per RJ-45 port: 10/100 Link/Active (Green)
LED (34)
LED (34)
SFP Fiber Per port: Link/Active (Green)
Warranty
Warranty
5 Years
Protocols
Protocols
CSMA/CD
Vibration
Vibration
IEC 60068-2-6
Dimensions
Dimensions
106 x 72 x152 mm (D x W x H)
IEEE802.3ac
IEEE802.3ac
Max frame size extended to 1522Bytes (allow Q-tag in packet)
Jumbo Frame
Jumbo Frame
9.6KB
Flow Control
Flow Control
IEEE 802.3x for full duplex mode Back pressure for half duplex mode
Power Supply
Power Supply
Redundant Dual DC 12/24/48V (9.6~60VDC) Input power (Removable Terminal Block )
CPU Watch Dog
CPU Watch Dog
Present
Memory Buffer
Memory Buffer
512K Bytes for Packet Buffer
Network Cable
Network Cable
UTP/STP above Cat. 5e cable
Warranty (51)
Warranty (51)
Certification
Data Processing
Data Processing
Store and Forward
Railway Traffic
Railway Traffic
EN50121-4
Warning Message
Warning Message
System Syslog, SMTP/ e-mail event message, alarm relay
MAC Address Table
MAC Address Table
8K
Network Connector
Network Connector
16x 10/100Base-TX RJ-45 + 4x 100/1000Base-X SFP connectorRJ-45 UTP port support Auto-negotiation speed, Auto MDI/MDI-X function, SFP port support dual speed with DDMI
Power Consumption
Power Consumption
Input Voltage 12VDC: 10.8WInput Voltage 24VDC: 10.6WInput Voltage 48VDC: 12.5W
Power Supply (30)
Power Supply (30)
Provide DC Power JACK adapter cable for external power supply
Network Cable (24)
Network Cable (24)
EIA/TIA-568 100-ohm (100m)
Operating Humidity
Operating Humidity
5% to 95% (Non-condensing)
Alarm Relay Contact
Alarm Relay Contact
Relay outputs with current carrying capacity of 1 A @24VDC
Storage Temperature
Storage Temperature
-40 ~ 85°C
Switch Architecture
Switch Architecture
Back-plane (Switch Fabric): 11.2Gbps Full Wire-Speed
Installation Mounting
Installation Mounting
DIN Rail mounting or wall mounting
Operating Temperature
Operating Temperature
-10 ~ 60°C
Standard - IEEE 802.3
Standard - IEEE 802.3
10Base-T 10Mbit/s Ethernet
Standard - IEEE 802.1Q
Standard - IEEE 802.1Q
Virtual LANs (VLAN)
Standard - IEEE 802.1X
Standard - IEEE 802.1X
Port-based and MAC based Network Access Control, Authentication
Standard - IEEE 802.1d
Standard - IEEE 802.1d
STP (Spanning Tree Protocol)
Standard - IEEE 802.1p
Standard - IEEE 802.1p
LAN Layer 2 QoS/CoS Protocol for Traffic Prioritization
Standard - IEEE 802.1s
Standard - IEEE 802.1s
MSTP (Multiple Spanning Tree Protocol)
Standard - IEEE 802.1w
Standard - IEEE 802.1w
RSTP (Rapid Spanning Tree Protocol)
Standard - IEEE 802.3u
Standard - IEEE 802.3u
100Base-TX, 100Base-FX, Fast Ethernet
Standard - IEEE 802.3x
Standard - IEEE 802.3x
Flow control for Full Duplex
Standard - IEEE 802.3z
Standard - IEEE 802.3z
1000Base-X Gbit/s Ethernet over Fiber-Optic
Standard - IEEE802.3ac
Standard - IEEE802.3ac
Max frame size extended to 1522Bytes
Standard - IEEE 802.1ab
Standard - IEEE 802.1ab
Link Layer Discovery Protocol (LLDP)
Standard - IEEE 802.1ad
Standard - IEEE 802.1ad
Stacked VLANs, Q-in-Q
Standard - IEEE 802.3ad
Standard - IEEE 802.3ad
Link aggregation for parallel links with LACP(Link Aggregation Control Protocol)
Standard - IEEE 802.3az
Standard - IEEE 802.3az
EEE (Energy Efficient Ethernet)
Removable Terminal Block
Removable Terminal Block
Provide 2 redundant power, alarm relay contact, 6 Pin
