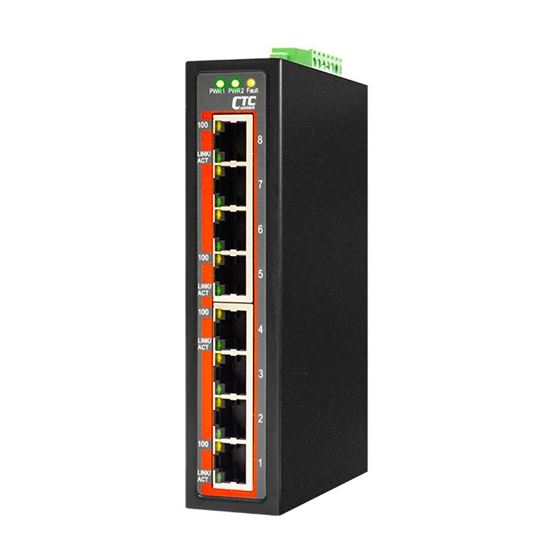

CTC UNION 8 Port Fast Ethernet Unmanaged Switch.-10C~60C.
8 Port Fast Ethernet Unmanaged Switch.-10C 60C. 8x 10/100BaseT(X). Power
- Brand: CTCunion
- Category: Switches
- SKU: IFS-800
- MPN: IFS-800
CTCunionCTCunion CTC UNION 8 Port Fast Ethernet Unmanaged Switch.-10C~60C.
- SKU
- CNZ-CD-002095
- MPN
- IFS-800
Overview
CTC UNION 8 Port Fast Ethernet Unmanaged Switch.-10C~60C. 8x 10/100BaseT(X). Power consumption 12/24/48V DC/3.9W. Din-kit incl.
Specifications
EMS
| EMS | EN61000-4-2 (ESD) Level 3, Criteria B |
|---|
LED
| LED | Per unit: Power (Green) |
|---|
Housing
| Housing | Rugged Metal, IP30 Protection and Fanless |
|---|
EMS (47)
| EMS (47) | EN61000-4-3 (RS) Level 3, Criteria A |
|---|
EMS (48)
| EMS (48) | EN61000-4-4 (Burst) Level 3, Criteria A |
|---|
EMS (49)
| EMS (49) | EN61000-4-5 (Surge) Level 3, Criteria B |
|---|
EMS (50)
| EMS (50) | EN61000-4-6 (CS) Level 3, Criteria A |
|---|
EMS (51)
| EMS (51) | EN61000-4-8 (PFMF, Magnetic Field) Field Strength: 300A/m, Criteria A |
|---|
LED (20)
| LED (20) | RJ-45 Per port: Link/Active (Green), Speed 100 (Yellow) |
|---|
Dimensions
| Dimensions | 70 x 30 x 103 mm (D x W x H) |
|---|
RJ-45 Port:
| RJ-45 Port: | Auto MDI/MDI-X function, 10/100Base-TX auto negotiation speed, Full/Half duplex |
|---|
Flow Control
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
|---|
Power Supply
| Power Supply | DC 12/24/48V (9.6~60VDC) or AC 24V (18~36VAC) input power (Removable Terminal Block) |
|---|
IEEE Standard
| IEEE Standard | IEEE 802.3 10Base-T Ethernet |
|---|
Network Cable
| Network Cable | 10Base-T: 2-pair UTP/STP Cat. 5 cable |
|---|
Transfer Rate
| Transfer Rate | 14,880pps for Ethernet port |
|---|
Warranty (40)
| Warranty (40) | Certification |
|---|
Data Processing
| Data Processing | Store and Forward |
|---|
Flow Control (9)
| Flow Control (9) | Provides Broadcast Storm Protection |
|---|
IEEE Standard (1)
| IEEE Standard (1) | IEEE 802.3u 100Base-TX and 100Base-FX Fast Ethernet |
|---|
IEEE Standard (2)
| IEEE Standard (2) | IEEE 802.3x Flow Control and Back Pressure |
|---|
Network Connector
| Network Connector | 5x RJ-45 |
|---|
Transfer Rate (7)
| Transfer Rate (7) | 148,800pps for Fast Ethernet port |
|---|
Network Cable (15)
| Network Cable (15) | EIA/TIA-568 100-ohm (100m) |
|---|
Network Cable (16)
| Network Cable (16) | 100Base-TX: 2-pair UTP/STP Cat. 5 cable |
|---|
Network Cable (17)
| Network Cable (17) | EIA/TIA-568 100-ohm (100m) |
|---|
Operating Humidity
| Operating Humidity | 5% to 95% (Non-condensing) |
|---|
Packet Buffer Size
| Packet Buffer Size | 448Kbits |
|---|
Storage Temperature
| Storage Temperature | -40 ~ 85°C |
|---|
Switch Architecture
| Switch Architecture | Back-plane (Switching Fabric) : 1.0 Gbps |
|---|
Installation Mounting
| Installation Mounting | DIN Rail mounting, or wall mounting (optional) |
|---|
Operating Temperature
| Operating Temperature | -10 ~ 60°C (IFS-500C) |
|---|
Switch Architecture (4)
| Switch Architecture (4) | Full wire-speed |
|---|
Removable Terminal Block
| Removable Terminal Block | Provides for input power (2 Pin) |
|---|
Operating Temperature (30)
| Operating Temperature (30) | -40 ~ 75°C (IFS-500C-E) |
|---|
Overload Current Protection
| Overload Current Protection | Present |
|---|
Reverse Polarity Protection
| Reverse Polarity Protection | For DC input power protection |
|---|
Power Consumption - Input Voltage
| Power Consumption - Input Voltage | Power Consumption(Watt) |
|---|
EMI (Electromagnetic Interference)
| EMI (Electromagnetic Interference) | FCC Part 15 Subpart B Class A,CE EN55022 Class A |
|---|
Emission for Heavy Industrial Environment
| Emission for Heavy Industrial Environment | EN61000-6-4 |
|---|
Immunity for Heavy Industrial Environment
| Immunity for Heavy Industrial Environment | EN61000-6-2 |
|---|
$244.94inc GST
