D-Link 18-Port Managed Switch

  • Brand: D-Link
  • Category: Network Accessories
  • SKU: DLDGS110018PV2
  • MPN: DGS-1100-18PV2
D-Link

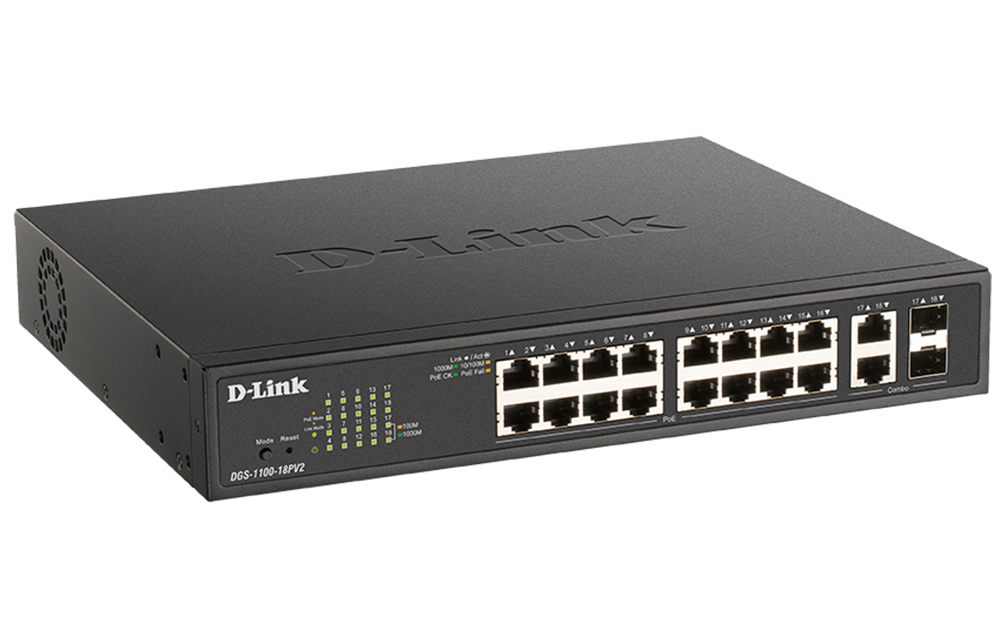

D-Link DGS-1100-18PV2 network switch Managed L2 Gigabit Ethernet…

SKU
CNZ-DS-001250
MPN
DGS-1100-18PV2

Overview

Powerful Switching for your Business
The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.

Easy to Use & Easy to Install
D-Link Network Assistant Utility (DNA) can quickly discover and do initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.

VLANs: Stronger Security & Better Traffic Management
Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, keeping them safe from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.

Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.

PD Alive Actively Mitigates Downtime
Round-the-clock surveillance footage is vital. If you have Cameras attached to your network,
you may have thought technical difficulties were a given. However, the PD-Alive feature actively mitigates device downtime. If a device is not working as expected, the Switch can automatically reset them and get them back online. No need to turn them on and off again in the middle
of the night.

Key features

  • Switch type: Managed
  • Switch layer: L2
  • Quality of Service (QoS) support: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 16
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Combo SFP ports quantity: 2
  • Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
  • 10G support: No
  • Copper ethernet cabling technology: 1000BASE-T
  • Full duplex: Yes
  • Half duplex: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Auto MDI/MDI-X: Yes
  • Spanning tree protocol: Yes
  • Ethernet LAN data rates: 10,100,1000 Mbit/s
  • Auto-negotiation: Yes
  • VLAN support: Yes
  • Number of VLANs: 4094
  • Switching capacity: 36 Gbit/s
  • Forwarding rate: 26.78 Mpps
  • Jumbo frames support: Yes
  • Jumbo frames: 9216
  • IGMP snooping: Yes

Specifications

Power

Power sourceDC/PoE
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Design

Rack mountingYes
Form factor1U
Product colourBlack
Number of fans1 fan(s)
Electromagnetic compatibilityFCC Class A, CE Class A, VCCI Class A, C-Tick, BSMI

Network

Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology1000BASE-T
Full duplexYes
Half duplexYes
Flow control supportYes
Link aggregationYes
Auto MDI/MDI-XYes
Spanning tree protocolYes
Ethernet LAN data rates10,100,1000 Mbit/s
Auto-negotiationYes
VLAN supportYes
Number of VLANs4094

Security

IGMP snoopingYes

Performance

Noise level45.8 dB
Mean time between failures (MTBF)343695 h

Certificates

Compliance certificatesRoHS
CertificationcUL, UL, LVD, CB, BSMI

Data transmission

Switching capacity36 Gbit/s
Forwarding rate26.78 Mpps
Jumbo frames supportYes
Jumbo frames9216

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Combo SFP ports quantity2

Management features

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes

Weight & dimensions

Width280 mm
Depth230 mm
Height44 mm
Weight2.1 kg

Operational conditions

Operating temperature (T-T)-5 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Heat dissipation125.2 BTU/h

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity16
Total Power over Ethernet (PoE) budget130 W

Questions

$695.74inc GST
