D-LINK DAP-3712 Bridge 2 Pack

  • Brand: D-Link
  • Category: Network Accessories
  • SKU: DLDAP37122PK
  • MPN: DAP-3712-2PK
D-Link

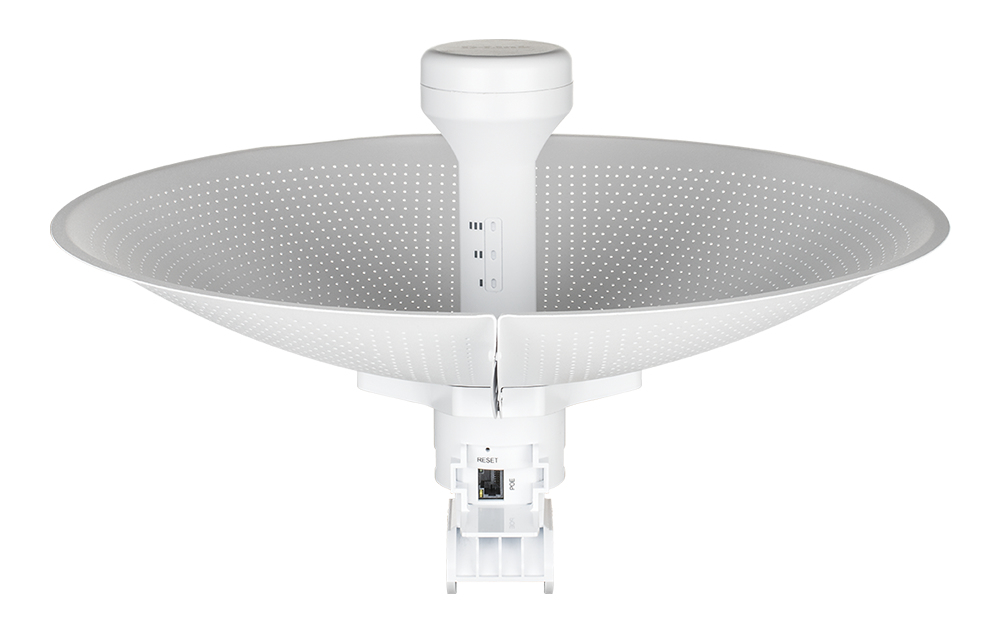

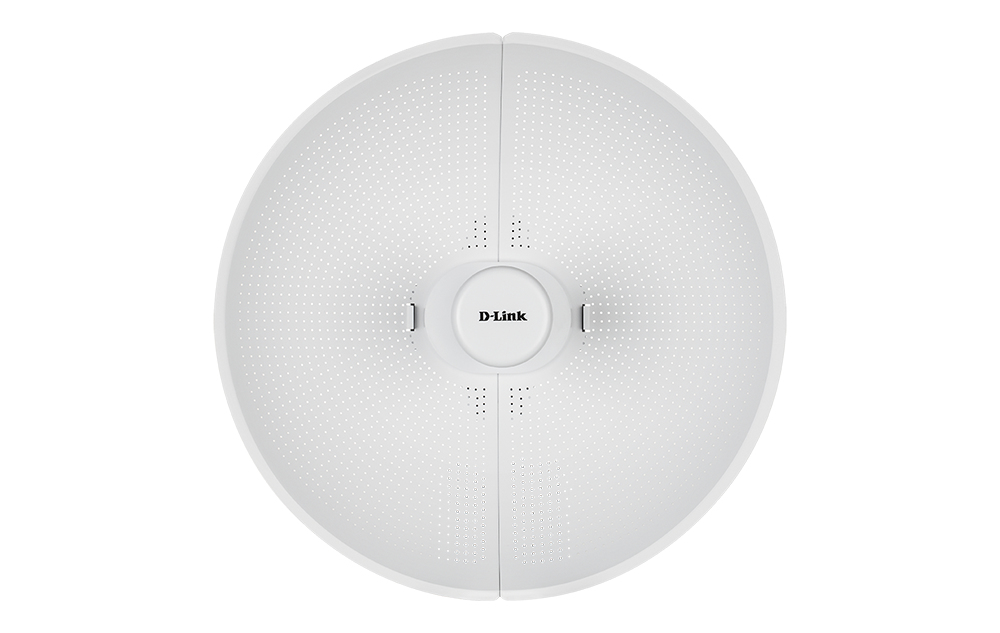

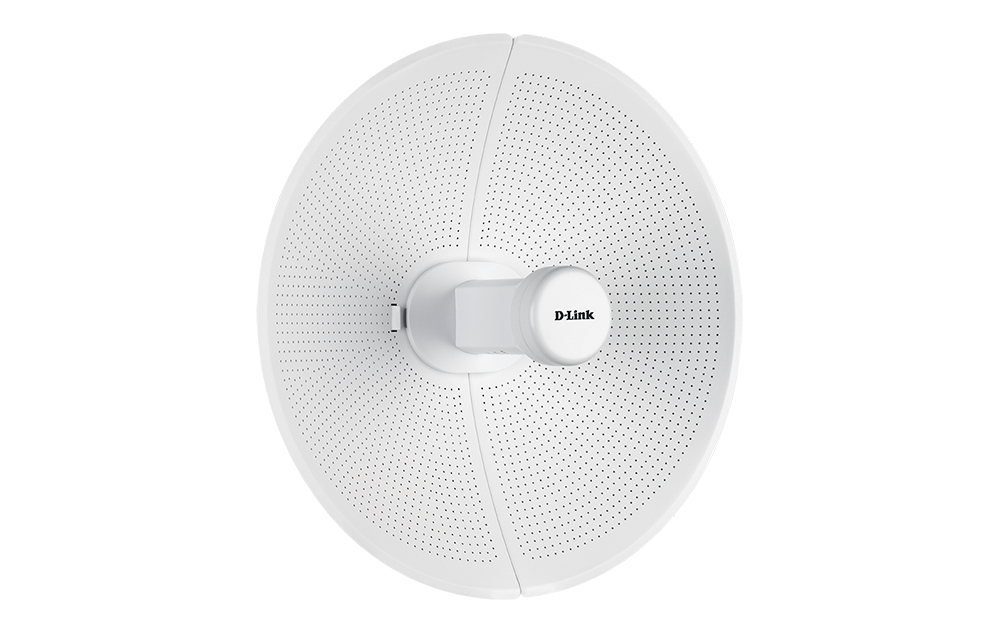

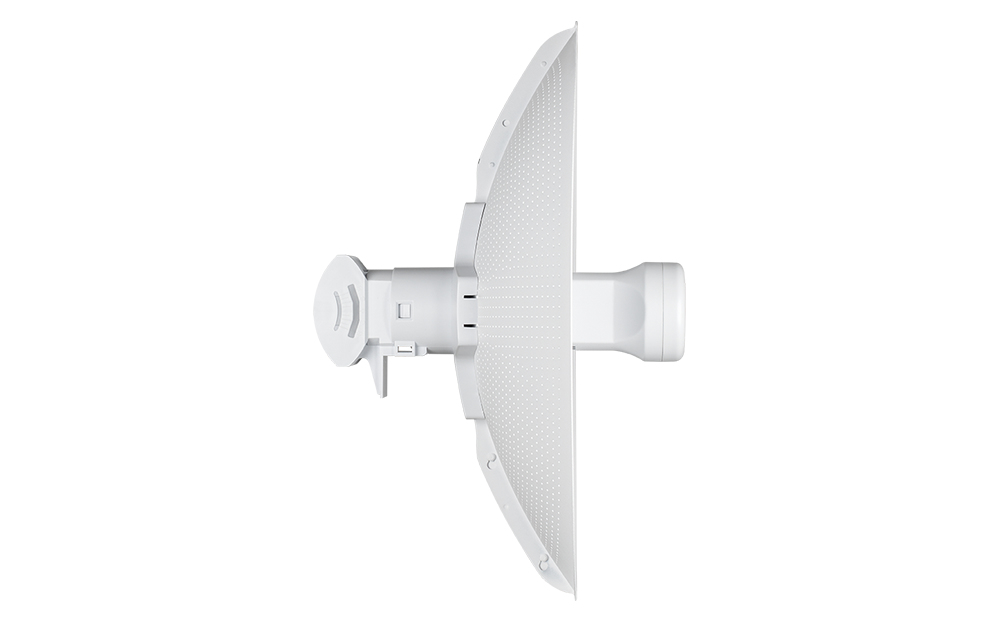

D-Link DAP-3712 867 Mbit/s White Power over Ethernet (PoE)

SKU
CNZ-DS-001196
MPN
DAP-3712-2PK

Overview

Highlights
The DAP-3712 provides reliable, long-distance connectivity between multiple sites such as office branches, construction sites or transportation hubs,
in both rural or busy city areas. Using proven Wi-Fi 5 technology with speeds of up to 867Mbps and it’s easy to install design, the DAP-3712 Long Range Wireless Bridge
from D-Link’s Business Solutions range offers a compelling connectivity solution versus expensive Fibre-based offerings.

Bring Connectivity To Areas With Limited Or No Access To Fixed Internet.
The DAP-3712 features state-of-the-art hardware, including a high-gain 23 dBi directional antennas. This powerful antenna effortlessly extends high-speed coverage to distances of up to 20km away.

Consistent Coverage That Filters Out Interference
The DAP-3712 transmission capability is augmented thanks to its integrated Time Division Multiple Access (TDMA). Everything works more efficiently on a schedule, and the DAP-3712 is no different: TDMA creates a schedule for multiple connected clients to work to. Senders and receivers get their own time slot for transmissions. This eliminates hidden node data collisions, in turn maximising airtime efficiency, significantly cutting down interference and making for a highly scalable solution.

The Power to Withstand Tough Weather
The DAP-3712 Wireless Bridge not only is designed to perform across long ranges, but is designed to perform long-term, braving the elements with an IP66-rated housing, providing both water and dust resistance, along with 8kV surge protection to protect the unit itself from lightning strikes and power surges.

Simple Installation with Built-in
Signal Strength and Alignment LED's

The DAP-3712 Long Range Wireless Bridge also has you covered with built-in Signal Strength and Alignment LED’s that allow you to easily align the antenna with another over long distances, saving you specialised installation service costs.

Key features

  • 2.4 GHz: No
  • 5 GHz: Yes
  • 6 GHz: No
  • Maximum data transfer rate: 867 Mbit/s
  • Maximum data transfer rate (5 GHz): 867 Mbit/s
  • Ethernet LAN data rates: 100,1000 Mbit/s
  • Frequency band: 5.745 - 5.825 GHz
  • Channels quantity: 2 channels
  • Fit AP mode features: Wireless distribution system (WDS)
  • VLAN support: Yes
  • Maximum outdoor range: 20000 m
  • Transmitting power (CE): 27 dBm
  • Security algorithms: 128-bit AES
  • MAC address filtering: Yes
  • IP address filtering: Yes
  • Service Set Identifier (SSID) features: SSID broadcast
  • DHCP snooping: Yes
  • Syslog: Yes
  • Firmware upgradeable: Yes
  • Ethernet LAN (RJ-45) ports: 1
  • Power over Ethernet (PoE): Yes
  • AC input voltage: 48 V
  • Power consumption (max): 15 W
  • Placement: Pole

Specifications

Power

Power over Ethernet (PoE)Yes
AC input voltage48 V
Power consumption (max)15 W

Design

PlacementPole
Product colourWhite
International Protection (IP) codeIP66
Reset buttonYes
LED indicatorsSignal strength

Antenna

Antenna gain level (max)23 dBi

Features

2.4 GHzNo
5 GHzYes
6 GHzNo
Maximum data transfer rate867 Mbit/s
Maximum data transfer rate (5 GHz)867 Mbit/s
Ethernet LAN data rates100,1000 Mbit/s
Frequency band5.745 - 5.825 GHz
Channels quantity2 channels
Fit AP mode featuresWireless distribution system (WDS)
VLAN supportYes
Maximum outdoor range20000 m
Transmitting power (CE)27 dBm

Security

Security algorithms128-bit AES
MAC address filteringYes
IP address filteringYes
Service Set Identifier (SSID) featuresSSID broadcast
DHCP snoopingYes

Certificates

CertificationCE, FCC

Packaging content

Quantity per pack2 pc(s)

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Management features

SyslogYes
Firmware upgradeableYes

Weight & dimensions

Width372 mm
Depth241 mm
Height372 mm
Weight900 g

Operational conditions

Operating relative humidity (H-H)0 - 90%
Operating temperature (T-T)-40 - 65 °C
Storage temperature (T-T)-40 - 85 °C
Storage relative humidity (H-H)0 - 90%
