D-LINK DCS-4712E 2MP Camera
- Brand: D-Link
- Category: Network Accessories
- SKU: DLDCS4712E
- MPN: DCS-4712E
D-Link
D-Link Vigilance 2 Megapixel H.265 Outdoor Bullet Camera
- SKU
- CNZ-DS-001204
- MPN
- DCS-4712E
- Rating
- No reviews yet
−8%
Overview
High quality professional surveillance
A 2 Megapixel lens and state-of-the-art image enhancement features are packed into a compact form factor that’s ready to face the outdoors.
2MP HD Resolution
2-megapixel sensor with High Definition resolution up to 1920 x 1080 for detailed footage
Weather-Resistant
IP66 water-resistant and dust-tight housing with an operating temperature range of -30 to 50 °C
Day & night surveillance
Built-in IR LED illuminators with 30-meter range for pitch-black areas
Wide Dynamic Range
Improved image quality in high-contrast conditions with WDR
PoE Capable
Supports 802.3af PoE for flexible and simple installation
Storage options
Equipped with a microSD card slot anda ONVIF compatibility for local storage to device or recording equipment.
LowLight+
Optimised for increased image quality in low-light environments
Free Video Management Software
Free D-ViewCam software to take snapshots, video clips and save them to a local hard drive
High quality videos, whatever the lighting
Video resolutions of up to 1920 x 1080 provide incredibly detailed videos while noise reduction, WDR and superior low light performance dramatically improve image quality, even in challenging lighting conditions.
Viewing Angles
(H) 106.8°
(V) 58°
(D) 126°
18x Digital Zoom
Zoom in to see more details in areas of interest
Versatile Monitoring in All Environments.

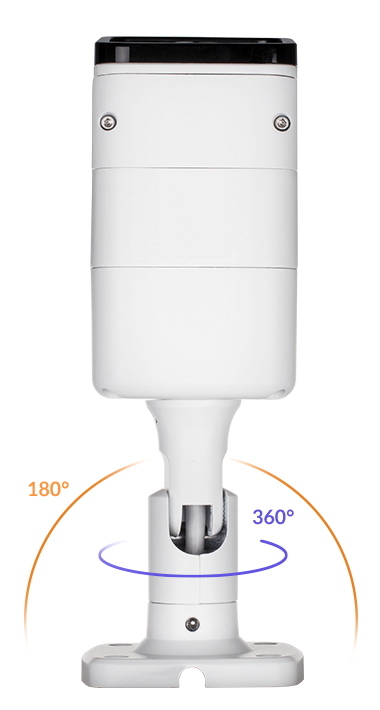

The IP66-rated water and dust-resistant design make this camera ideal for deployment in all weather conditions. The adjustable mount allows the camera to be quickly and easily positioned to get the best field of view.
Weather-resistant
Withstands rain and moisture, with a wide operating temperature range of -30°C to 50°C.
Optimising Bandwidth and Storage
To maximise bandwidth efficiency and improve image quality, the DCS-4712E provides real-time video compression using the H.265, H.264 and MJPEG codecs, supporting three separate profiles for simultaneous video streaming and recording.
Flexible Connectivity
Built-in 802.3af-compliant PoE support simplifies installation by providing power and networking connectivity over a single standard network cable.
Optional recording to an NVR, VMS or NAS system
Support for ONVIF Profile S lets you easily record video streams to your ONVIF compliant NVR, VMS or NAS system for centralized viewing or continuous, 24/7 recording.
A 2 Megapixel lens and state-of-the-art image enhancement features are packed into a compact form factor that’s ready to face the outdoors.
2MP HD Resolution
2-megapixel sensor with High Definition resolution up to 1920 x 1080 for detailed footage
Weather-Resistant
IP66 water-resistant and dust-tight housing with an operating temperature range of -30 to 50 °C
Day & night surveillance
Built-in IR LED illuminators with 30-meter range for pitch-black areas
Wide Dynamic Range
Improved image quality in high-contrast conditions with WDR
PoE Capable
Supports 802.3af PoE for flexible and simple installation
Storage options
Equipped with a microSD card slot anda ONVIF compatibility for local storage to device or recording equipment.
LowLight+
Optimised for increased image quality in low-light environments
Free Video Management Software
Free D-ViewCam software to take snapshots, video clips and save them to a local hard drive
High quality videos, whatever the lighting
Video resolutions of up to 1920 x 1080 provide incredibly detailed videos while noise reduction, WDR and superior low light performance dramatically improve image quality, even in challenging lighting conditions.
Viewing Angles
(H) 106.8°
(V) 58°
(D) 126°
18x Digital Zoom
Zoom in to see more details in areas of interest
Versatile Monitoring in All Environments.
The IP66-rated water and dust-resistant design make this camera ideal for deployment in all weather conditions. The adjustable mount allows the camera to be quickly and easily positioned to get the best field of view.
Weather-resistant
Withstands rain and moisture, with a wide operating temperature range of -30°C to 50°C.
Optimising Bandwidth and Storage
To maximise bandwidth efficiency and improve image quality, the DCS-4712E provides real-time video compression using the H.265, H.264 and MJPEG codecs, supporting three separate profiles for simultaneous video streaming and recording.
Flexible Connectivity
Built-in 802.3af-compliant PoE support simplifies installation by providing power and networking connectivity over a single standard network cable.
Optional recording to an NVR, VMS or NAS system
Support for ONVIF Profile S lets you easily record video streams to your ONVIF compliant NVR, VMS or NAS system for centralized viewing or continuous, 24/7 recording.
Key features
- Type: IP security camera
- Placement supported: Outdoor
- Connectivity technology: Wired
- Maximum operating distance: 30 m
- Wide Dynamic Range (WDR): Yes
- Day/night mode: Yes
- Infrared (IR) cut-off filter: Yes
- Remote viewing: Yes
- Certification: CE, FCC, RCM
- Form factor: Bullet
- Mounting type: Ceiling
- Product colour: White
- Protection features: Dust resistant, Water resistant, Waterproof
- International Protection (IP) code: IP66
- Weatherproof: Yes
- Minimum illumination: 0.05 lx
- Lens viewing angle, horizontal: 106.8°
- Lens viewing angle, vertical: 58°
- Lens viewing angle, diagonal: 126°
- White balance: Auto
- Number of sensors: 1
- Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
- Progressive scan: Yes
- Sensor type: CMOS
Specifications
Power
| Power source type | AC, DC, PoE |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 8 W |
| DC output voltage | 12 |
| DC output current | 1.5 A |
Video
| Maximum resolution | 1920 x 1080 pixels |
|---|---|
| Total megapixels | 2 MP |
| Video compression formats | H.264, H.265, M-JPEG |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Video recording | Yes |
| Frame rate | 30 fps |
| Gain control type | Auto |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Time stamp overlay | Yes |
| Text caption overlay | Yes |
Camera
| Minimum illumination | 0.05 lx |
|---|---|
| Lens viewing angle, horizontal | 106.8° |
| Lens viewing angle, vertical | 58° |
| Lens viewing angle, diagonal | 126° |
| White balance | Auto |
Design
| Form factor | Bullet |
|---|---|
| Mounting type | Ceiling |
| Product colour | White |
| Protection features | Dust resistant, Water resistant, Waterproof |
| International Protection (IP) code | IP66 |
| Weatherproof | Yes |
Network
| Ethernet LAN | Yes |
|---|---|
| Ethernet interface type | 10 Gigabit Ethernet, 100 Gigabit Ethernet |
| Networking standards | IEEE 802.3af |
| Supported network protocols | IPv4, HTTP/HTTPS, RTSP/RTP/RTCP, TCP, UDP, DHCP, DNS, DDNS, NTP, FTP, SMTP Client, ONVIF Profile S compliant, ARP, ICMP, PPPoE, SNMP v1/v2c/v3 |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Card reader integrated | Yes |
|---|---|
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
Security
| Video motion detection | Yes |
|---|---|
| Security algorithms | HTTPS |
| HTTPS encryption | Yes |
| Alert notification type | E-mail, Snapshot alert message |
Lens system
| Zoom capability | Yes |
|---|---|
| Digital zoom | 18x |
| Focal length range | 2.8 mm |
| Maximum aperture number | 2 |
| Closest focusing distance | 0.5 m |
Performance
| Type | IP security camera |
|---|---|
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Maximum operating distance | 30 m |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Remote viewing | Yes |
| Certification | CE, FCC, RCM |
Image sensor
| Number of sensors | 1 |
|---|---|
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Number of effective pixels (H x V) | 1920 x 1080 pixels |
Night vision
| Night vision | Yes |
|---|---|
| LED type | IR |
Logistics data
| Harmonized System (HS) code | 85258900 |
|---|
Packaging content
| Number of cameras | 1 |
|---|
Management features
| Reset button | Yes |
|---|
System requirements
| Windows operating systems supported | Windows 10 |
|---|
Weight & dimensions
| Width | 187.6 mm |
|---|---|
| Depth | 64 mm |
| Height | 64 mm |
| Weight | 500 g |
Operational conditions
| Operating temperature (T-T) | -30 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
Questions
$381.79inc GST
