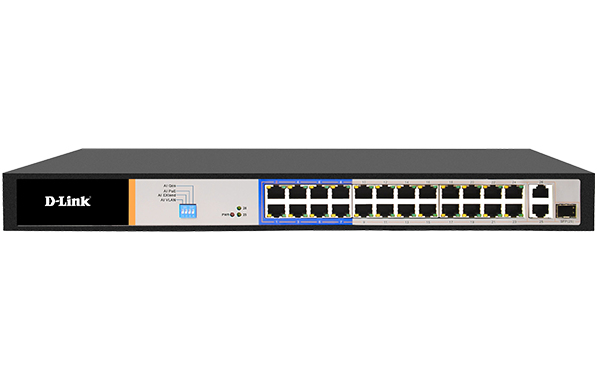

D-LINK DES-F1026P-E PoESwitch

  • Brand: D-Link
  • Category: Switches
  • SKU: DLDESF1026PE
  • MPN: DES-F1026P-E
D-Link

D-Link DES-F1026P-E network switch Unmanaged Gigabit Ethernet…

SKU
CNZ-DS-001236
MPN
DES-F1026P-E

Overview

Built for your Needs

Robust and cost-effective PoE solution to provide power for your PoE powered devices such as IP cameras, CCTV, VoIP, Wi-Fi Access Points, etc.

Up to 250m PoE and Data Transmission

Equipped with PoE extend technology, the DES-F1026P-E have the capability to supply 802.3af/at PoE and data connectivity on cables up to 250m long.

6KV Surge Protection

D-Link DES-F1026P-E switch is enhanced with 6KV surge protection. This effectively protects the switch against sudden electrical surges caused by events such as lightning strikes or unstable electrical current. Built-in 6 kV surge protection significantly reduces the chances of equipment being damaged from electrical surges, and effectively lowers maintenance costs by minimizing the need for expensive equipment repairs or replacement.

Enhanced with VLAN Function

With a flick of button you can isolate switch ports from each other, but still allowing the devices to communicate via the uplink ports. This feature not only adds security but can also effectively suppress network storms and improve network performance.

Enhanced with QoS

The DES-1026P-E switch performance is enhanced with QoS (Quality of Service) feature to ensure that critical network services such as IP surveillance, VoIP, IPTV are always given high priority. This feature makes the switch a perfect solution for IP Camera/CCTV applications.

Intelligent Detection

With AI PoE feature enabled the switch can automatically detect an unresponsive PoE device and reboot the devices in order to recover it.

Key features

  • Switch type: Unmanaged
  • Quality of Service (QoS) support: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 28
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Fast Ethernet (copper) ports quantity: 26
  • Gigabit Ethernet (copper) ports quantity: 2
  • Combo SFP ports quantity: 1
  • Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • 10G support: No
  • Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
  • Flow control support: Yes
  • Auto MDI/MDI-X: Yes
  • Ethernet LAN data rates: 10,100,1000 Mbit/s
  • Auto-negotiation: Yes
  • VLAN support: Yes
  • Switching capacity: 8.8 Gbit/s
  • Forwarding rate: 1.488 Mpps
  • Store-and-forward: Yes
  • Rack mounting: Yes
  • Form factor: 1U
  • Product colour: Black
  • Housing material: Metal
  • LED indicators: Yes
  • Fanless: Yes

Specifications

Power

Power supply includedYes

Design

Rack mountingYes
Form factor1U
Product colourBlack
Housing materialMetal
LED indicatorsYes

Network

Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Flow control supportYes
Auto MDI/MDI-XYes
Ethernet LAN data rates10,100,1000 Mbit/s
Auto-negotiationYes
VLAN supportYes

Performance

FanlessYes

Certificates

Compliance certificatesCE
CertificationFCC LVD

Sustainability

Sustainability complianceYes

Data transmission

Switching capacity8.8 Gbit/s
Forwarding rate1.488 Mpps
Store-and-forwardYes

Packaging content

User guideYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity28
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Fast Ethernet (copper) ports quantity26
Gigabit Ethernet (copper) ports quantity2
Combo SFP ports quantity1

Management features

Switch typeUnmanaged
Quality of Service (QoS) supportYes

Weight & dimensions

Width440 mm
Depth180 mm
Height44 mm
Weight2.8 kg

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity24
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget250 W
