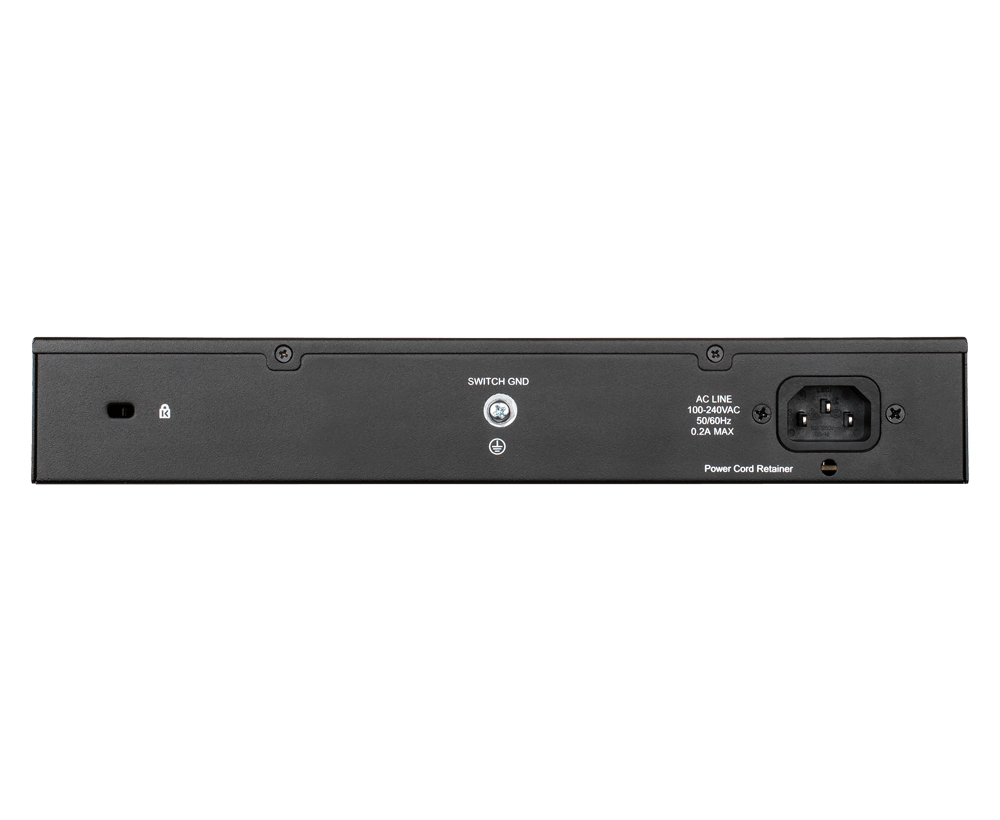

D-LINK DGS-1100-24PV2 Switch

  • Brand: D-Link
  • Category: Switches
  • SKU: DLDGS110024PV2
  • MPN: DGS-1100-24PV2
D-Link

D-Link 24-Port PoE Gigabit Smart Managed Switch

SKU
CNZ-DS-001251
MPN
DGS-1100-24PV2

Overview

Powerful Switching for your Business
The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.

Gigabit Ethernet Speeds
Take your Ethernet speeds to the next level with Gigabit Connectivity

Cutting Edge Green Technology
Innovative D-Link Green power saving features keep your budget in check

Manage Anywhere, Anytime
Remote setup & management is easy, and can be done from anywhere.

Easy to Use & Easy to Install
D-Link Network Assistant Utility (DNA) can quickly discover and do initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.

VLANs: Stronger Security & Better Traffic Management
Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, keeping them safe from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.

For Voice
If VoIP calls make up a large slice of your network usage, separating them onto their own VLAN can ensure they get the bandwidth they need for smooth conversations without lag or jitters.

For Surveillance
If you have surveillance cameras and devices attached to your network, putting them onto their own VLAN keeps surveillance footage running seamlessly. At the same time, it can help prevent a variety of malicious attacks by restricting access to different network areas.

Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.

Key features

  • Switch type: Managed
  • Switch layer: L2
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • System event log: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • 10G support: No
  • Copper ethernet cabling technology: 10BASE-T, 10BASE-TX, 1000BASE-T
  • Port mirroring: Yes
  • Full duplex: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Broadcast storm control: Yes
  • Rate limiting: Yes
  • Auto MDI/MDI-X: Yes
  • Spanning tree protocol: Yes
  • Head-of-line (HOL) blocking: Yes
  • Auto-negotiation: Yes
  • VLAN support: Yes
  • Virtual LAN features: Port-based VLAN, Voice VLAN
  • Number of VLANs: 128
  • Switching capacity: 48 Gbit/s

Specifications

Power

AC input voltage100 - 240 V
Power consumption (max)19.5 W

Design

Rack mountingYes
Product colourBlack
LED indicatorsYes

Network

Networking standardsIEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Copper ethernet cabling technology10BASE-T, 10BASE-TX, 1000BASE-T
Port mirroringYes
Full duplexYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Rate limitingYes
Auto MDI/MDI-XYes
Spanning tree protocolYes
Head-of-line (HOL) blockingYes
Auto-negotiationYes
VLAN supportYes
Virtual LAN featuresPort-based VLAN, Voice VLAN
Number of VLANs128

Security

DHCP featuresDHCP client
IGMP snoopingYes
Security algorithmsSNMP, SSL/TLS
Queue scheduling algorithmsSPQ, Weighted Round Robin (WRR)

Performance

Built-in processorYes
Processor frequency125 MHz
Memory typeDRAM
Flash memory16 MB
Noise level0 dB
FanlessYes
Mean time between failures (MTBF)255003 h

Certificates

CertificationEMI FCC A, CE A, VCCI A, C-Tick, BSMI, CCC cUL, CE LVD, CB, BSMI, CCC

Logistics data

Harmonized System (HS) code85176990

Data transmission

Switching capacity48 Gbit/s
Forwarding rate35.71 Mpps
MAC address table8000 entries
Store-and-forwardYes
Number of queues4
Jumbo frames supportYes
Jumbo frames9216
Packet buffer memory4.1 MB

Multicast features

Multicast supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)

Management features

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes
System event logYes

Weight & dimensions

Width280 mm
Depth230 mm
Height44 mm
Weight2.2 kg

Operational conditions

Operating temperature (T-T)-5 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 2000 m
Heat dissipation107.5 BTU/h

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity12
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget100 W

Questions

$637.09inc GST
