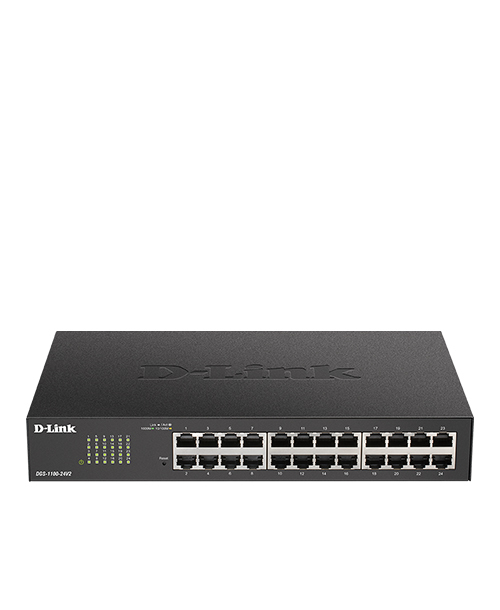

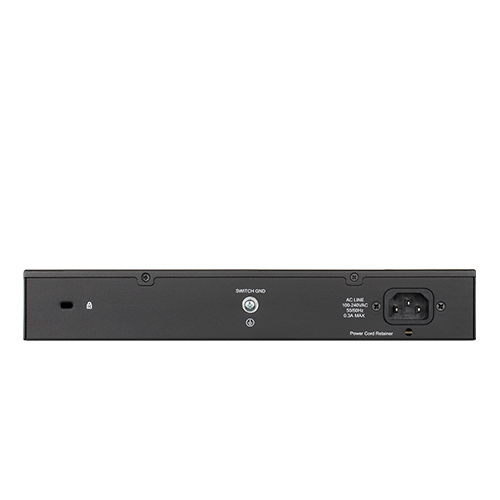

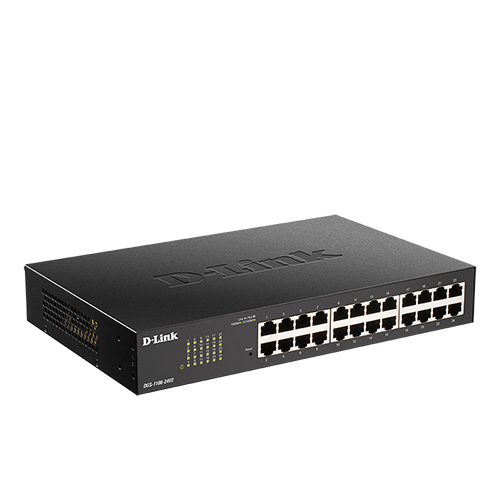

D-LINK DGS-1100-24V2 Switch
- Brand: D-Link
- Category: Switches
- SKU: DLDGS110024V2
- MPN: DGS-1100-24V2
D-Link
D-Link 24-Port Gigabit Smart Managed Switch
- SKU
- CNZ-DS-001252
- MPN
- DGS-1100-24V2
- Rating
- No reviews yet
−18%
Overview
Powerful Switching for your Business
The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.
Easy to Use & Easy to Install
D-Link Network Assistant Utility (DNA) can quickly discover and do initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.
VLANs: Stronger Security & Better Traffic Management
Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, keeping them safe from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.
For Voice
If VoIP calls make up a large slice of your network usage, separating them onto their own VLAN can ensure they get the bandwidth they need for smooth conversations without lag or jitters.
For Surveillance
If you have surveillance cameras and devices attached to your network, putting them onto their own VLAN keeps surveillance footage running seamlessly. At the same time, it can help prevent a variety of malicious attacks by restricting access to different network areas.
Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.
The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.
Easy to Use & Easy to Install
D-Link Network Assistant Utility (DNA) can quickly discover and do initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.
VLANs: Stronger Security & Better Traffic Management
Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, keeping them safe from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.
For Voice
If VoIP calls make up a large slice of your network usage, separating them onto their own VLAN can ensure they get the bandwidth they need for smooth conversations without lag or jitters.
For Surveillance
If you have surveillance cameras and devices attached to your network, putting them onto their own VLAN keeps surveillance footage running seamlessly. At the same time, it can help prevent a variety of malicious attacks by restricting access to different network areas.
Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.
Key features
- Switch type: Managed
- Switch layer: L2
- Web-based management: Yes
- System event log: Yes
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x
- Port mirroring: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Rate limiting: Yes
- Auto MDI/MDI-X: Yes
- Spanning tree protocol: Yes
- Head-of-line (HOL) blocking: Yes
- VLAN support: Yes
- Virtual LAN features: Port-based VLAN, Voice VLAN
- Number of VLANs: 4094
- Switching capacity: 48 Gbit/s
- Forwarding rate: 35.71 Mpps
- MAC address table: 8000 entries
- Store-and-forward: Yes
- Number of queues: 4
- Jumbo frames support: Yes
Specifications
Power
| AC input voltage | 100 - 240 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 4.5 W |
| Power consumption (max) | 15.9 W |
Design
| Rack mounting | Yes |
|---|---|
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Electromagnetic compatibility | FCC A, CE A, VCCI A, C-Tick, BSMI, CCC |
Network
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x |
|---|---|
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Voice VLAN |
| Number of VLANs | 4094 |
Security
| DHCP features | DHCP client |
|---|---|
| IGMP snooping | Yes |
| IGMP entries | 64 |
| Security algorithms | SNMP, SSL/TLS |
| Queue scheduling algorithms | SPQ, Weighted Round Robin (WRR) |
Performance
| Built-in processor | Yes |
|---|---|
| Processor frequency | 125 MHz |
| Flash memory | 16 MB |
| Noise level | 0 dB |
| Mean time between failures (MTBF) | 424762 h |
Certificates
| Certification | RoHS 6 cUL, CE LVD, CB, BSMI, CCC |
|---|
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
Data transmission
| Switching capacity | 48 Gbit/s |
|---|---|
| Forwarding rate | 35.71 Mpps |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Number of queues | 4 |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 4.1 MB |
Packaging content
| Rack mount kit | Yes |
|---|
Multicast features
| Multicast support | Yes |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 24 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Management features
| Switch type | Managed |
|---|---|
| Switch layer | L2 |
| Web-based management | Yes |
| System event log | Yes |
Weight & dimensions
| Width | 280 mm |
|---|---|
| Depth | 180 mm |
| Height | 44 mm |
| Weight | 1.47 kg |
Operational conditions
| Operating temperature (T-T) | -5 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 2000 m |
| Heat dissipation | 54.3 BTU/h |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
