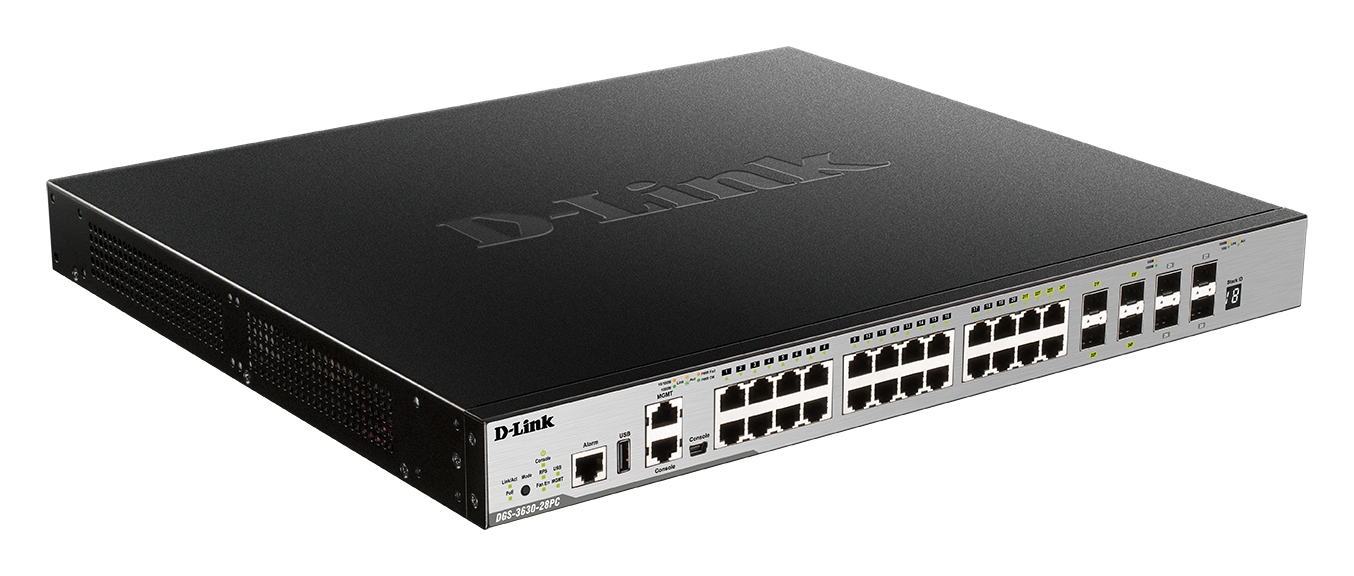

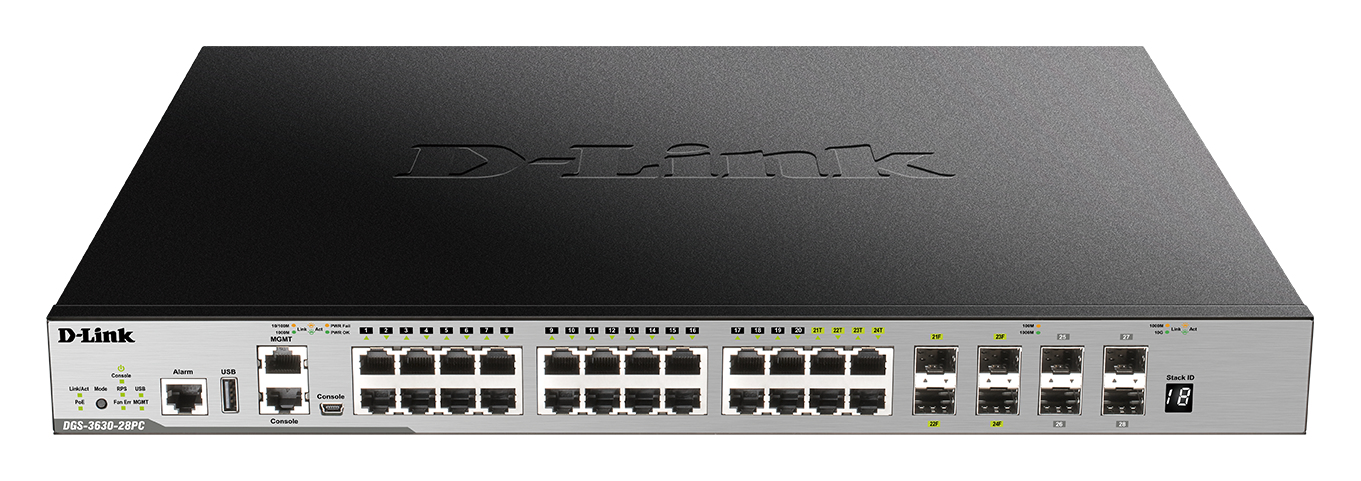

D-Link DGS-3630-28PC Switch

  • Brand: D-Link
  • Category: Switches
  • SKU: DLDGS363028PC
  • MPN: DGS-3630-28PC
D-Link

D-Link 24 Port PoE L3 Stackable Managed Gigabit Switch including 4 x…

SKU
CNZ-DS-001276
MPN
DGS-3630-28PC

Overview

Outperforming the competition
The DGS-3630-28TC was benchmarked against a market leading competitor's device. It matched or exceeded the competitor's performance across all tests despite being significantly lower in price with a much lower power consumption.

Versatile Management
The DGS-3630 Series provides:
- Network Assistant Utility
- Industry-standard CLI
- Intuitive web-based management interface
Support for SNMP allows centralized management of a large number of devices and out-of-band management is available via a dedicated console port.
A mini-USB console port allows the DGS-3630 Series to be managed without any extra connectors, and a USB Type A port can be used to store logs, configuration, and firmware images.

High Availability and Flexibility
Includes stacking technology, which allows multiple switches to be combined to form a single physical or virtual stack.
Scale your network using just a stacking cable and without the need for stacking modules.
Increased redundancy over multiple physical units, simplifies management and provides a single IP address to manage all members in the stack.

Security, Performance & Availability
Robust set of QoS features helps ensure that critical network services such as Voice over IP and video conferencing are given high priority through the network.
The D-Link Safeguard Engine increases the switch’s reliability, serviceability, and availability by preventing malicious flooding traffic caused by worms or virus attacks.

Key features

  • Switch type: Managed
  • Switch layer: L3
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 20
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Combo SFP ports quantity: 4
  • SFP+ module slots quantity: 4
  • Fiber optic connector: SFP+
  • Console port: RJ-45/Mini-USB
  • USB 2.0 ports quantity: 1
  • Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Qbb, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at
  • 10G support: Yes
  • Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
  • Port mirroring: Yes
  • Full duplex: Yes
  • IP routing: Yes
  • Routing entries: 16000
  • Flow control support: Yes
  • Link aggregation: Yes
  • Head-of-line (HOL) blocking: Yes
  • Auto-negotiation: Yes
  • Ethernet Ring Protection Switching (ERPS): Yes
  • VLAN support: Yes

Specifications

Power

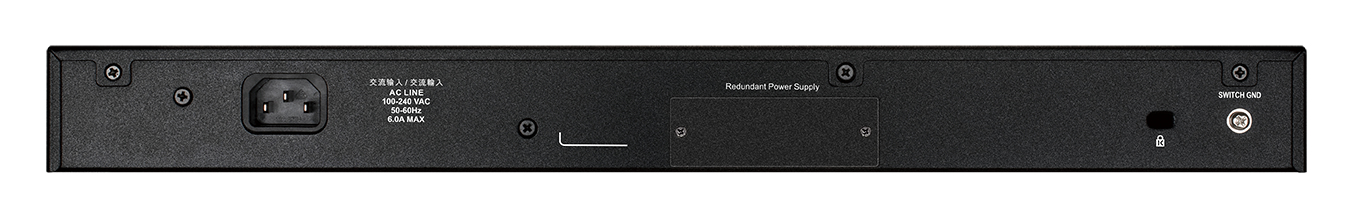

Redundant power supply (RPS) supportYes
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Design

Rack mountingYes
StackableYes
Product colourBlack, Grey
Number of fans4 fan(s)
SafetycUL, CB, CE, CCC, BSMI
Electromagnetic compatibilityCE, FCC A, C-Tick, VCCI, BSMI, CCC

Network

Networking standardsIEEE 802.1AX, IEEE 802.1D, IEEE 802.1Qbb, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at
10G supportYes
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroringYes
Full duplexYes
IP routingYes
Routing entries16000
Flow control supportYes
Link aggregationYes
Head-of-line (HOL) blockingYes
Auto-negotiationYes
Ethernet Ring Protection Switching (ERPS)Yes
VLAN supportYes
Virtual LAN featuresPrivate VLAN, Voice VLAN, Protocol-based VLAN, MAC address-based VLAN, Port-based VLAN
Number of VLANs4000

Security

DHCP featuresDHCP server, DHCP client
Access Control List (ACL)Yes
IGMP snoopingYes
Security algorithms802.1x RADIUS, SNMP, SNMPv3, SSH, SSL/TLS
SSH/SSL supportYes
Loop protectionYes
BPDU filtering/protectionYes
IP-MAC-Port bindingYes

Performance

Physical stacking (units)9
Virtual stacking (units)32
Built-in processorYes

Logistics data

Harmonized System (HS) code85176990

Packaging data

Package width538 mm
Package depth560 mm
Package height170 mm
Package weight8.24 kg

Data transmission

Switching capacity128 Gbit/s
Forwarding rate95.24 Mpps
MAC address table68000 entries
Store-and-forwardYes
Static routeYes
Number of static routes512
Jumbo frames supportYes
Jumbo frames12000
Packet buffer memory4 MB

Technical details

Shipping (inner) case height57.2 cm
Shipping (inner) case width36.2 cm
Shipping (inner) case length57.9 cm
Shipping (inner) case net weight12.9 kg
Products per shipping (inner) case2 pc(s)
Pallet gross weight (air)342.4 kg
Master (outer) cases per pallet (air)18 pc(s)
Products per pallet (air)36 pc(s)
Pallet gross length110 cm
Pallet gross width120 cm
Pallet height (air)185.1 cm
Pallet gross weight (sea)342.4 kg
Master (outer) cases per pallet (sea)18 pc(s)
Products per pallet (sea)36 pc(s)
Pallet height (sea)185.1 cm
Shipping (inner) case gross weight18 kg

Multicast features

Multicast supportYes
Multicast Listener Discovery (MLD) snoopingMLD v1, MLD v2

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity20
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Combo SFP ports quantity4
SFP+ module slots quantity4
Fiber optic connectorSFP+
Console portRJ-45/Mini-USB
USB 2.0 ports quantity1

Management features

Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes
Web-based managementYes

Weight & dimensions

Width441 mm
Depth380 mm
Height44 mm
Weight5.88 kg

Operational conditions

Operating temperature (T-T)-5 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 95%
Storage relative humidity (H-H)5 - 95%

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity24
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget370 W

Questions

$5,690.19inc GST
