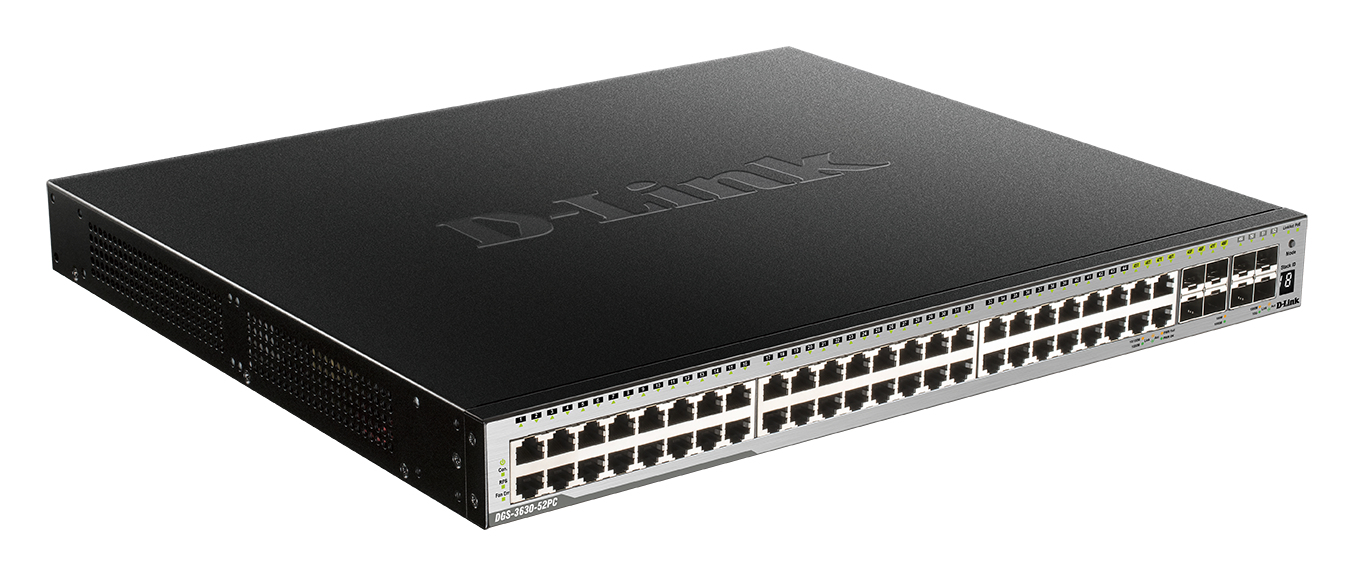

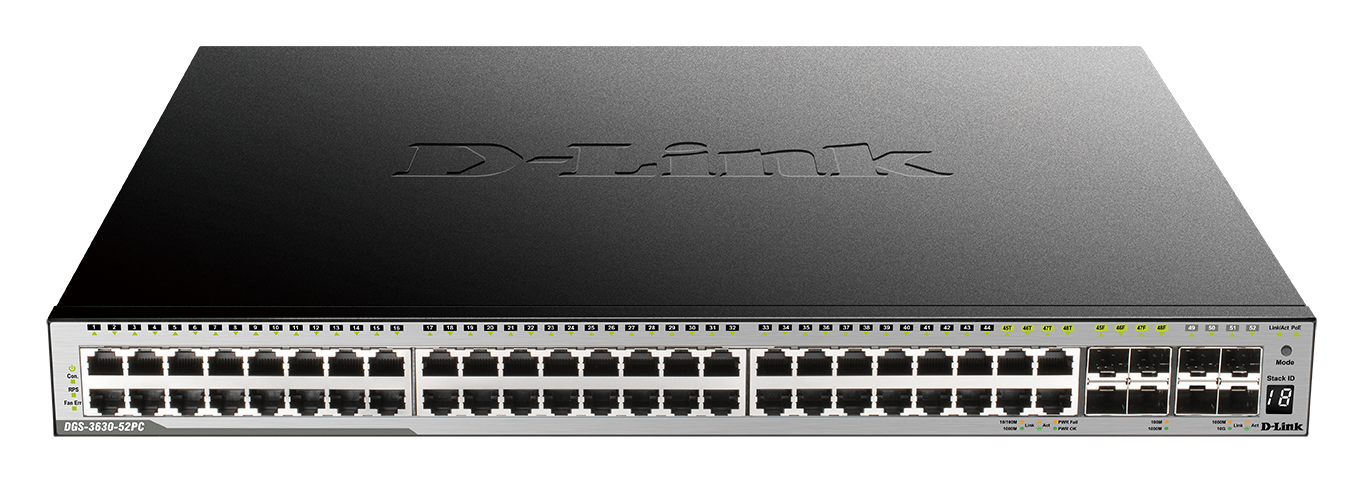

D-Link DGS-3630-52PC Switch
- Brand: D-Link
- Category: Switches
- SKU: DLDGS363052PC
- MPN: DGS-3630-52PC
D-Link
D-Link 48-Port PoE L3 Stackable Managed Gigabit Switch including 4 x…
- SKU
- CNZ-DS-001282
- MPN
- DGS-3630-52PC
- Rating
- No reviews yet
−6%
Overview
Outperforming the competition
The DGS-3630-28TC was benchmarked against a market leading competitor's device. It matched or exceeded the competitor's performance across all tests despite being significantly lower in price with a much lower power consumption.
Versatile Management
The DGS-3630 Series provides:
- Network Assistant Utility
- Industry-standard CLI
- Intuitive web-based management interface
Support for SNMP allows centralized management of a large number of devices and out-of-band management is available via a dedicated console port.
A mini-USB console port allows the DGS-3630 Series to be managed without any extra connectors, and a USB Type A port can be used to store logs, configuration, and firmware images.
High Availability and Flexibility
Includes stacking technology, which allows multiple switches to be combined to form a single physical or virtual stack.
Scale your network using just a stacking cable and without the need for stacking modules.
Increased redundancy over multiple physical units, simplifies management and provides a single IP address to manage all members in the stack.
Security, Performance & Availability
Robust set of QoS features helps ensure that critical network services such as Voice over IP and video conferencing are given high priority through the network.
The D-Link Safeguard Engine increases the switch’s reliability, serviceability, and availability by preventing malicious flooding traffic caused by worms or virus attacks.
The DGS-3630-28TC was benchmarked against a market leading competitor's device. It matched or exceeded the competitor's performance across all tests despite being significantly lower in price with a much lower power consumption.
Versatile Management
The DGS-3630 Series provides:
- Network Assistant Utility
- Industry-standard CLI
- Intuitive web-based management interface
Support for SNMP allows centralized management of a large number of devices and out-of-band management is available via a dedicated console port.
A mini-USB console port allows the DGS-3630 Series to be managed without any extra connectors, and a USB Type A port can be used to store logs, configuration, and firmware images.
High Availability and Flexibility
Includes stacking technology, which allows multiple switches to be combined to form a single physical or virtual stack.
Scale your network using just a stacking cable and without the need for stacking modules.
Increased redundancy over multiple physical units, simplifies management and provides a single IP address to manage all members in the stack.
Security, Performance & Availability
Robust set of QoS features helps ensure that critical network services such as Voice over IP and video conferencing are given high priority through the network.
The D-Link Safeguard Engine increases the switch’s reliability, serviceability, and availability by preventing malicious flooding traffic caused by worms or virus attacks.
Key features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Basic switching RJ-45 Ethernet ports quantity: 48
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP+ module slots quantity: 4
- Fiber optic connector: SFP+
- Console port: RJ-45/Mini-USB
- USB 2.0 ports quantity: 1
- Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Qbb, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at
- 10G support: Yes
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Port mirroring: Yes
- Full duplex: Yes
- IP routing: Yes
- Routing entries: 16000
- Flow control support: Yes
- Link aggregation: Yes
- Head-of-line (HOL) blocking: Yes
- Auto-negotiation: Yes
- Ethernet Ring Protection Switching (ERPS): Yes
- VLAN support: Yes
- Virtual LAN features: Private VLAN, Voice VLAN, Protocol-based VLAN, MAC address-based VLAN, Port-based VLAN
Specifications
Power
| Redundant power supply (RPS) support | Yes |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Design
| Rack mounting | Yes |
|---|---|
| Stackable | Yes |
| Product colour | Black, Grey |
| Number of fans | 4 fan(s) |
| Safety | cUL, CB, CE, CCC, BSMI |
| Electromagnetic compatibility | CE, FCC A, C-Tick, VCCI, BSMI, CCC |
Network
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Qbb, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at |
|---|---|
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Routing entries | 16000 |
| Flow control support | Yes |
| Link aggregation | Yes |
| Head-of-line (HOL) blocking | Yes |
| Auto-negotiation | Yes |
| Ethernet Ring Protection Switching (ERPS) | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Voice VLAN, Protocol-based VLAN, MAC address-based VLAN, Port-based VLAN |
| Number of VLANs | 4000 |
Security
| DHCP features | DHCP server, DHCP client |
|---|---|
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS, SNMP, SNMPv3, SSH, SSL/TLS |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
Performance
| Physical stacking (units) | 9 |
|---|---|
| Virtual stacking (units) | 32 |
| Built-in processor | Yes |
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
Packaging data
| Package width | 538 mm |
|---|---|
| Package depth | 560 mm |
| Package height | 170 mm |
| Package weight | 8.6 kg |
Data transmission
| Switching capacity | 176 Gbit/s |
|---|---|
| Forwarding rate | 130.95 Mpps |
| MAC address table | 68000 entries |
| Store-and-forward | Yes |
| Static route | Yes |
| Number of static routes | 512 |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
Technical details
| Shipping (inner) case height | 57.2 cm |
|---|---|
| Shipping (inner) case width | 36.2 cm |
| Shipping (inner) case length | 57.9 cm |
| Shipping (inner) case net weight | 13.7 kg |
| Products per shipping (inner) case | 2 pc(s) |
| Pallet gross weight (air) | 355.5 kg |
| Master (outer) cases per pallet (air) | 18 pc(s) |
| Products per pallet (air) | 36 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 185.1 cm |
| Pallet gross weight (sea) | 355.5 kg |
| Master (outer) cases per pallet (sea) | 18 pc(s) |
| Products per pallet (sea) | 36 pc(s) |
| Pallet height (sea) | 185.1 cm |
| Shipping (inner) case gross weight | 18.7 kg |
Multicast features
| Multicast support | Yes |
|---|---|
| Multicast Listener Discovery (MLD) snooping | MLD v1, MLD v2 |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 48 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| Fiber optic connector | SFP+ |
| Console port | RJ-45/Mini-USB |
| USB 2.0 ports quantity | 1 |
Management features
| Switch type | Managed |
|---|---|
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Weight & dimensions
| Width | 441 mm |
|---|---|
| Depth | 380 mm |
| Height | 44 mm |
| Weight | 6.3 kg |
Operational conditions
| Operating temperature (T-T) | -5 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 370 W |
Questions
$11,963.44inc GST
