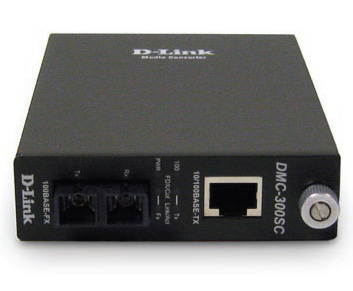

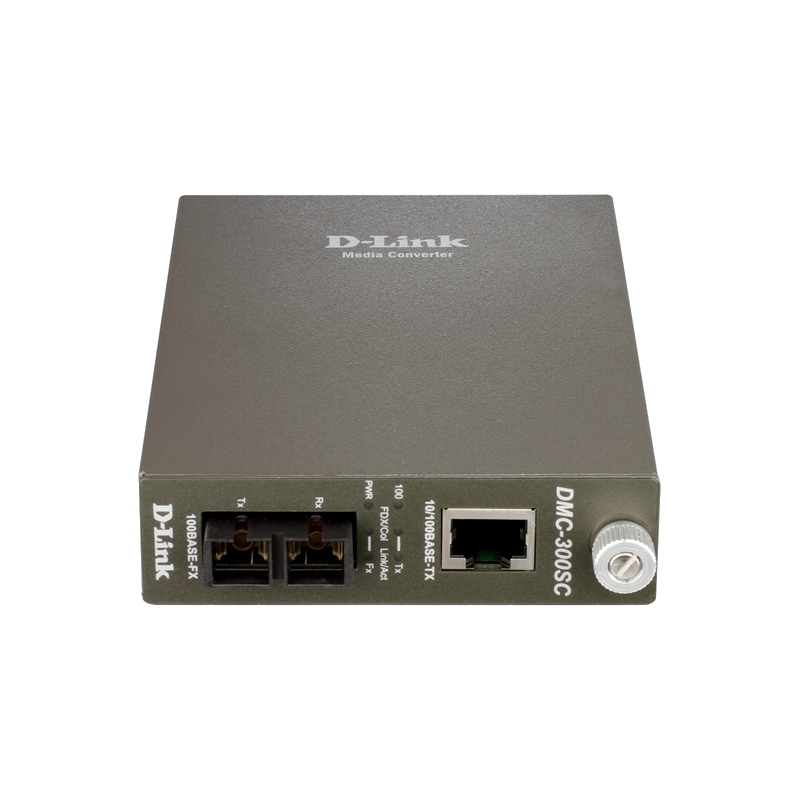

D-Link DMC-300SC Media Convrtr
- Brand: D-Link
- Category: Network Accessories
- SKU: DLDMC300SC
- MPN: DMC-300SC
Overview
Designed to convert 10BASE-T/100BASE-TX copper to 100Base-FX fiber media and vice versa, the DMC-300SC offers conversion from fiber to copper to minimize cost and extend hauls.
The DMC-300SC by D-Link® is a media converter designed to connect 10BASE-T/100BASE-TX copper to 100Base-FX fiber media and vice versa. Based on the IEEE 802.3 and 802.3u standards, the DMC-300SC is designed for use with multimode fiber cable utilizing the SC-Type connector. The DMC-300SC supports shortwave (SX) laser specifications at a full wire-speed forwarding rate. Other features of this module include the ability to be used as a standalone device (no chassis required), Auto MDI/MDI-X, Auto negotiation of speeds and duplex modes on twisted-pair port, and front panel status LEDs. The DMC-300SC will transmit at extended
The DMC-300SC by D-Link® is a media converter designed to connect 10BASE-T/100BASE-TX copper to 100Base-FX fiber media and vice versa. Based on the IEEE 802.3 and 802.3u standards, the DMC-300SC is designed for use with multimode fiber cable utilizing the SC-Type connector. The DMC-300SC supports shortwave (SX) laser specifications at a full wire-speed forwarding rate. Other features of this module include the ability to be used as a standalone device (no chassis required), Auto MDI/MDI-X, Auto negotiation of speeds and duplex modes on twisted-pair port, and front panel status LEDs. The DMC-300SC will transmit at extended
Key features
- Cabling technology: 10Base-T, 100BASE-T, 100Base-FX
- LED indicators: LAN
- Power consumption (typical): 7.2 W
- Weight: 300 g
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -25 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Package width: 208 mm
- Package depth: 274 mm
- Package height: 68 mm
- Package weight: 769 g
- Certification: FCC Class B, VCCI Class B, CE Class B
- Shipping (inner) case length: 37 cm
- Shipping (inner) case width: 29.1 cm
- Shipping (inner) case height: 45.2 cm
- Shipping (inner) case net weight: 7.68 kg
- Products per shipping (inner) case: 10 pc(s)
- Pallet gross weight (air): 391 kg
- Master (outer) cases per pallet (air): 44 pc(s)
- Products per pallet (air): 440 pc(s)
- Pallet gross length: 110 cm
- Pallet gross width: 120 cm
- Pallet height (air): 194.3 cm
- Pallet gross weight (sea): 391 kg
Specifications
Power
| Power consumption (typical) | 7.2 W |
|---|
Network
| Cabling technology | 10Base-T, 100BASE-T, 100Base-FX |
|---|
Features
| LED indicators | LAN |
|---|
Certificates
| Certification | FCC Class B, VCCI Class B, CE Class B |
|---|
Logistics data
| Shipping (inner) case length | 37 cm |
|---|---|
| Shipping (inner) case width | 29.1 cm |
| Shipping (inner) case height | 45.2 cm |
| Shipping (inner) case net weight | 7.68 kg |
| Products per shipping (inner) case | 10 pc(s) |
| Pallet gross weight (air) | 391 kg |
| Master (outer) cases per pallet (air) | 44 pc(s) |
| Products per pallet (air) | 440 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 194.3 cm |
| Pallet gross weight (sea) | 391 kg |
| Master (outer) cases per pallet (sea) | 44 pc(s) |
| Products per pallet (sea) | 440 pc(s) |
| Pallet height (sea) | 194.3 cm |
| Shipping (inner) case gross weight | 8.39 kg |
| Harmonized System (HS) code | 85176990 |
Other features
| Dimensions (WxDxH) | 89 x 119 x 25 mm |
|---|---|
| Interface | RJ-45, SC |
| Power requirements | 7.5V, 1.5A |
| Full duplex | Yes |
| Cable type | UTP Cat. 3, 4, 5; 62.5/125μm MM Fiber; 10/125μm SM Fiber |
Packaging data
| Package width | 208 mm |
|---|---|
| Package depth | 274 mm |
| Package height | 68 mm |
| Package weight | 769 g |
Weight & dimensions
| Weight | 300 g |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Questions
