D-Link DMS-105

D-Link DMS-105 5-Port 2.5GPBS Switch

  • Brand: D-Link
  • Category: Adapters
  • SKU: DLDMS105
  • MPN: DMS-105
D-Link

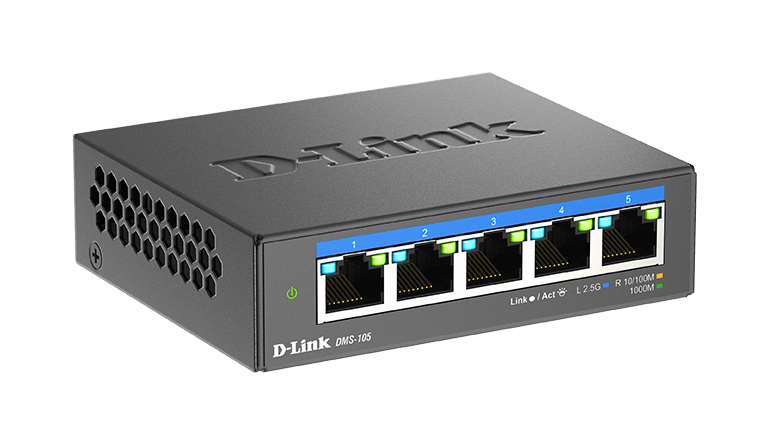

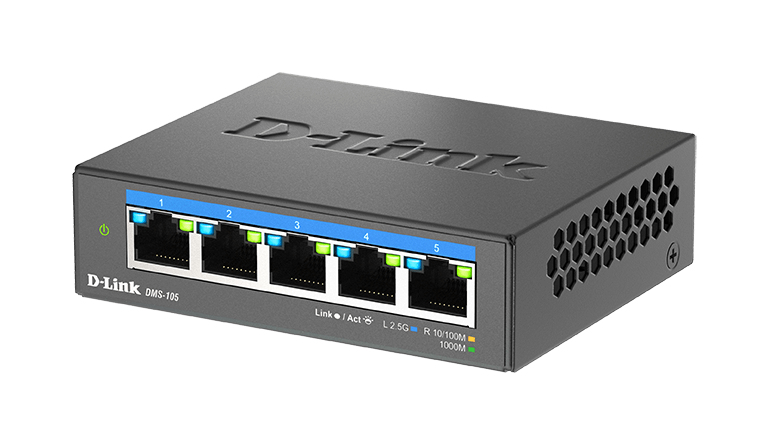

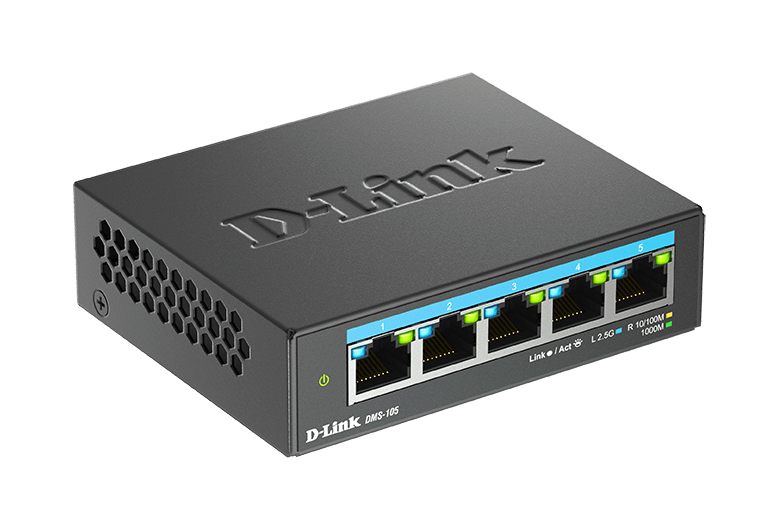

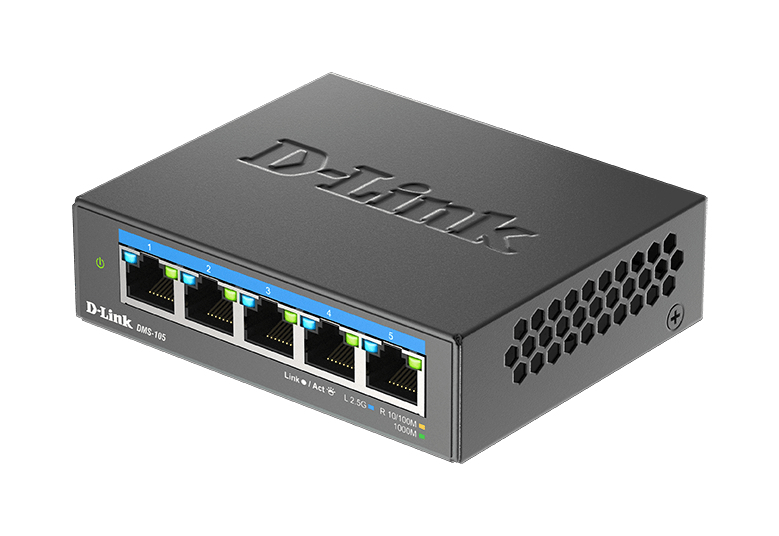

D-Link 5-Port 2.5G Multi-Gigabit Desktop Switch

SKU
CNZ-DS-001315
MPN
DMS-105

Overview

Small switch. Multi-Gigabit Ethernet.
Maximise network throughput with 2.5Gbps Multi-Gigabit Ethernet on each port of this compact 5-port switch. Whether it’s to connect to your core or create a network between devices, now you can easily start sharing an internet connection, files, music, and video, or for gaming without bottlenecks.

2.5 Gigabit Ethernet
Save time transferring large files and improve sharing and productivity

Effortless multi-Gigabit networking
Easily upgrade or extend your home or small business network

Compact Metal Housing
Sturdy, compact metal housing with fanless design for silent operation

Energy Efficient Design
Automatic power saving features to reduce power usage

Plug-and-pay convenience.
The DMS-105 is a plug-and-play device that requires no configuration to get started. Plug-and-play makes it easy to instantly create a network without any technical knowledge.

Effortless traffic optimisation.
With 2.5 Gigabit transfer speeds from every port, you can rapidly transfer files between connected servers and network attached storage (NAS) to computers. The Quality of Service (QoS), and Flow Control features automatically prioritises important data for efficient delivery. And the IGMP Snooping function reduces unwanted multicast traffic so you can enjoy seamless video streaming and IPTV viewing experiences.

Designed for life, built to last.
The DMS-105 has a sturdy and compact metal housing to ensure the product can withstand wider operating temperatures by helping to dissipate heat and reduce stress on internal components.

Energy Saving.
The DMS-105 is designed with energy efficiency in mind. The fanless design eliminates a common point of failure and means the switch can be placed virtually anywhere and operate silently. The Link Status detection feature of the switch saves power by automatically powering down ports that are inactive or not connected, and it supports the IEEE 802.3az Energy-Efficient Ethernet standard.

Ready for Wi-Fi 6.
You can add a Wi-Fi 6 Access Point to your network to any of the 2.5 Gbps ports to maximise throughput and speed. Multi-Gigabit Ethernet eliminates potential bottlenecks with Wi-Fi 6 Access Points, allowing your network to take full advantage of the efficiency and speeds provided by Wi-Fi 6.

Key features

  • Switch type: Unmanaged
  • Switch layer: L2
  • Quality of Service (QoS) support: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 5
  • Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
  • 2.5G Ethernet (copper) ports quantity: 5
  • Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
  • 10G support: No
  • Flow control support: Yes
  • Auto MDI/MDI-X: Yes
  • MAC address auto-learning supported: Yes
  • Switching capacity: 25 Gbit/s
  • Forwarding rate: 18.6 Mpps
  • MAC address table: 4000 entries
  • Store-and-forward: Yes
  • Packet buffer memory: 8.1 MB
  • IGMP snooping: Yes
  • Multicast support: Yes
  • Stackable: Yes
  • Product colour: Black
  • LED indicators: Activity, Link, Power
  • Fanless: Yes
  • Mean time between failures (MTBF): 765190 h
  • Power source: DC

Specifications

Power

Power sourceDC
Power supply includedYes

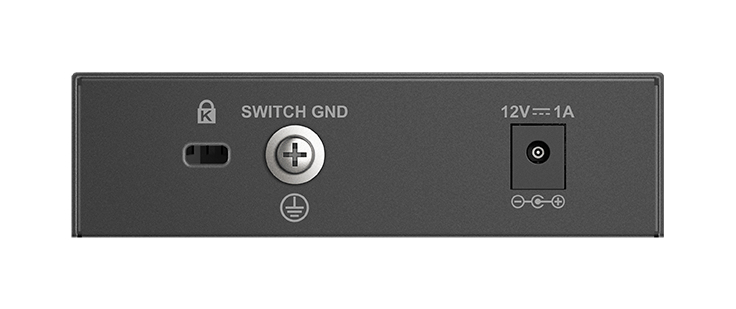

DC input voltage12 V
Input current1 A
Power consumption (typical)4.918 W

Design

StackableYes
Product colourBlack
LED indicatorsActivity, Link, Power

Network

Networking standardsIEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
10G supportNo
Flow control supportYes
Auto MDI/MDI-XYes
MAC address auto-learning supportedYes

Security

IGMP snoopingYes

Performance

FanlessYes
Mean time between failures (MTBF)765190 h

Certificates

Compliance certificatesBSMI, CE, Low Voltage Directive (LVD), RoHS

Sustainability

Sustainability complianceYes

Data transmission

Switching capacity25 Gbit/s
Forwarding rate18.6 Mpps
MAC address table4000 entries
Store-and-forwardYes
Packet buffer memory8.1 MB

Multicast features

Multicast supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports type2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity5

Management features

Switch typeUnmanaged
Switch layerL2
Quality of Service (QoS) supportYes

Weight & dimensions

Width100.5 mm
Depth82 mm
Height28 mm
Weight238.6 g

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation16.78 BTU/h

Power over Ethernet (PoE)

Power over Ethernet (PoE)No
