D-Link DXS-3610-54S Switch
- Brand: D-Link
- Category: Switches
- SKU: DLDXS361054S
- MPN: DXS-3610-54S
D-Link

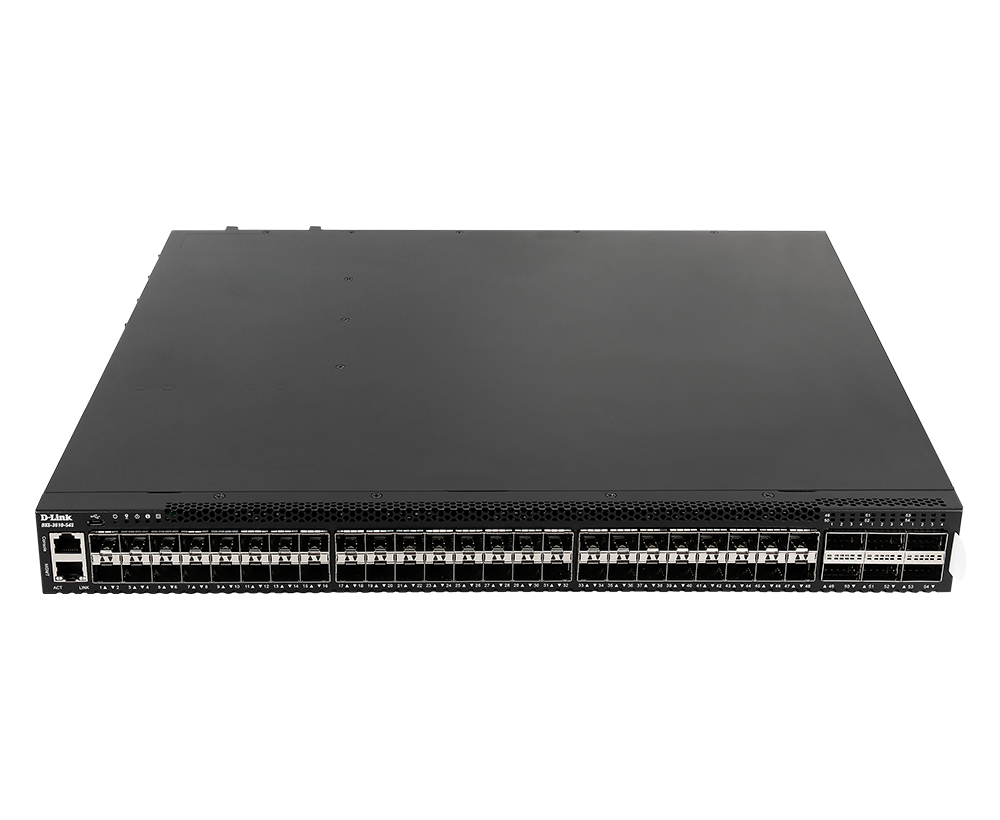

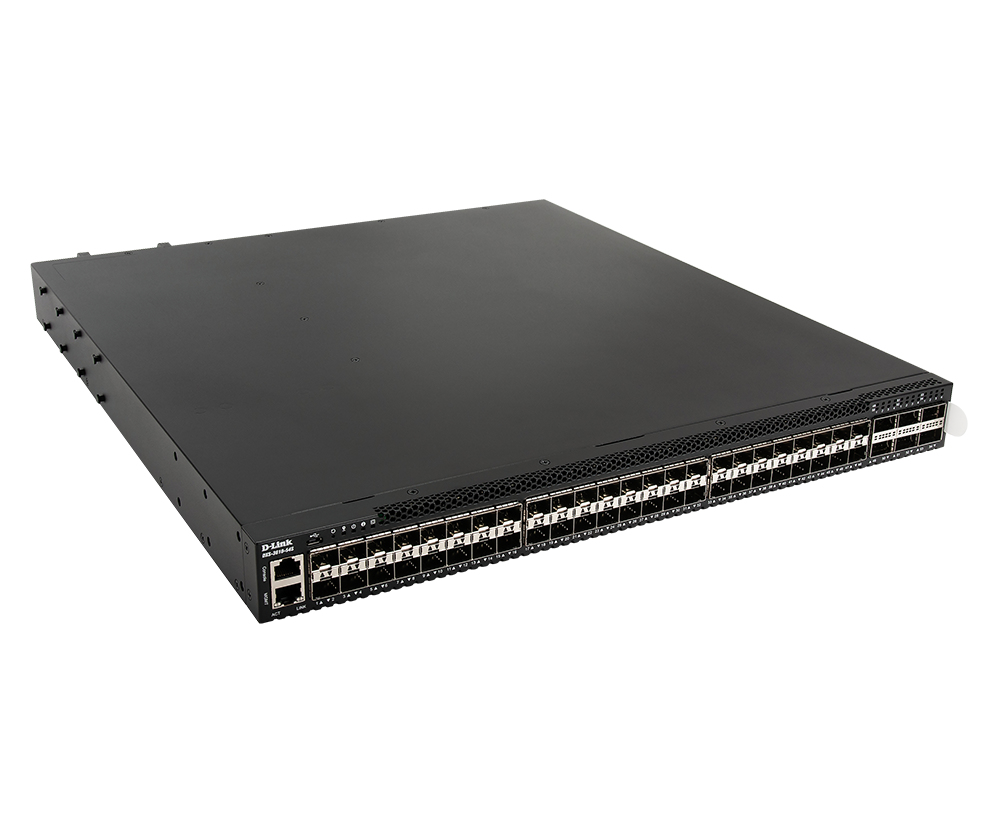

D-Link 48-port 10G SFP+ Layer 3 Stackable 10G Managed Switch
- SKU
- CNZ-DS-001364
- MPN
- DXS-3610-54S
- Rating
- No reviews yet
−6%
Overview
OpenFlow Switching that Stacks Above the Competition
The DXS-3610 Layer 3 Stackable 10G/100G Managed OpenFlow Switches are compatible with SDN-enabled network architecture for deployment in high-performance datacenter, enterprise, and campus applications. Hot-swappable PSU and fan modules with load sharing capabilities significantly reduce network downtime and power consumption. Stackable up to 12 units and high port density makes the DXS-3610 the ideal choice for future-proofing your aggregation/core network.
High Availability
The DXS-3610 Series boasts high-performance 10G Ethernet switching capacity of up to 2.16 Tbps with forwarding rates of up to 1607 Mpps.
Hot-Swappable Redundancy

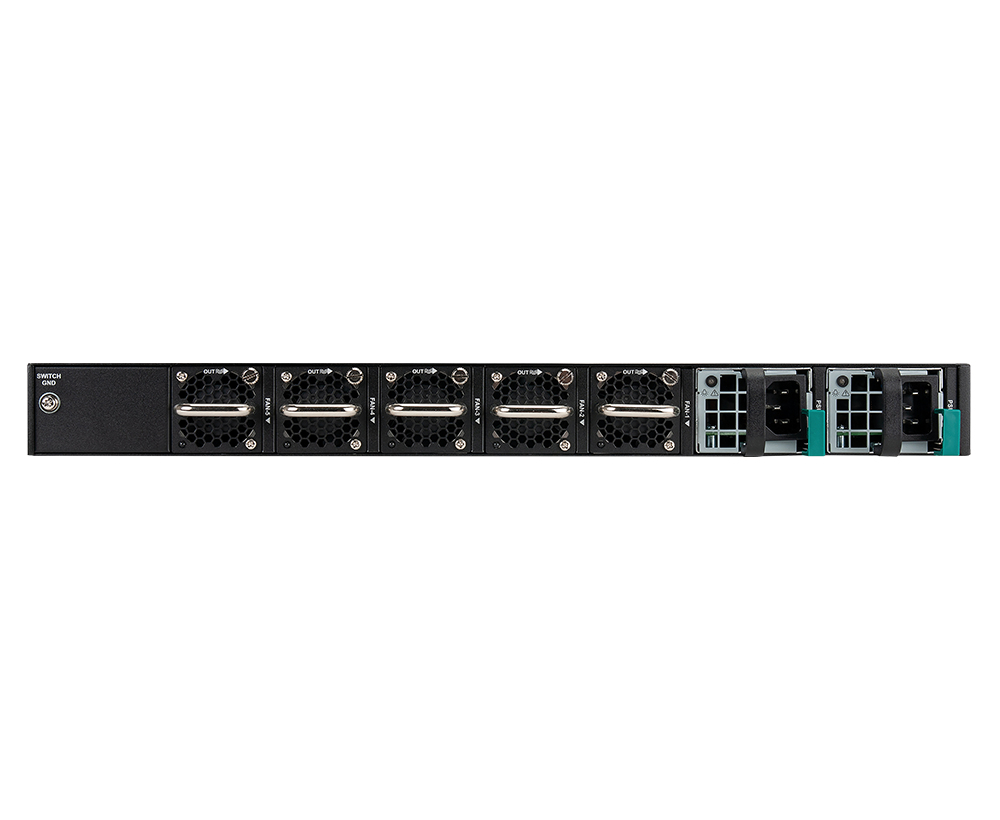

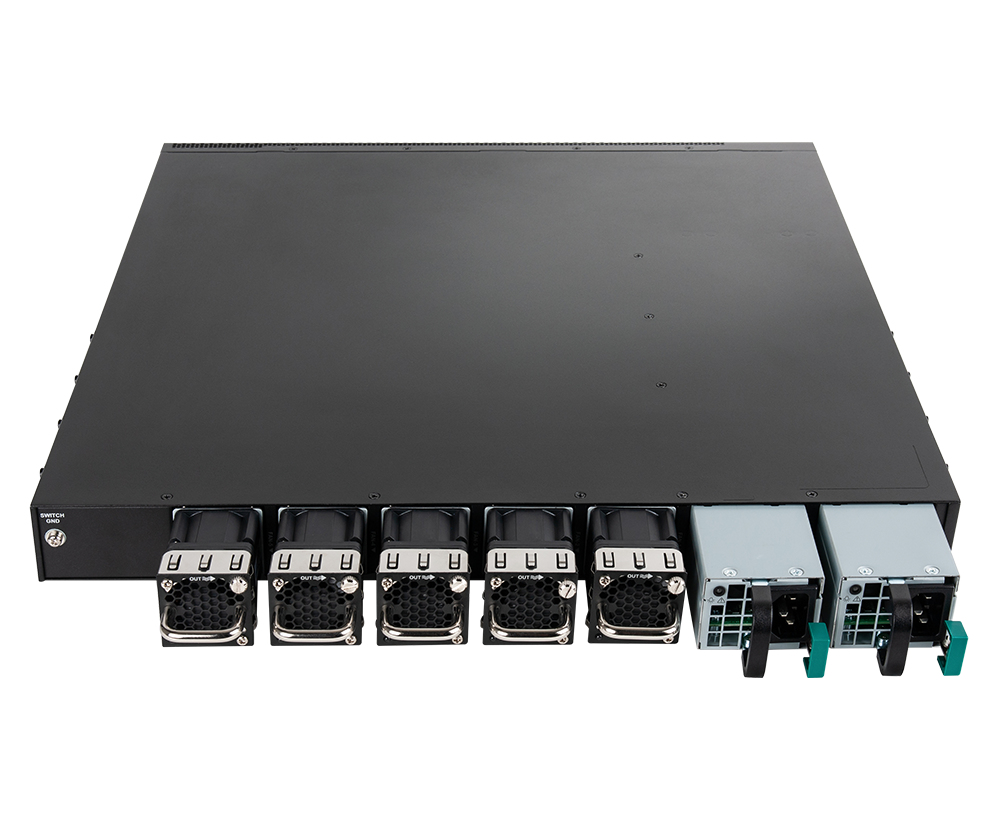

The DXS-3610 Series also features a modular fan back-up design, providing n+1 redundancy for the system. The modular power design allows either AC or DC power sources for maximum deployment flexibility. With dual power modules, the power load is distributed, extending the lifetime of the modules.
Robust and Versatile Stacking Capability
Stack up to 12 DXS-3610 switches with up to a total of 1200G (1.2T) stacking bandwidth. Perfect for small to medium-sized data centers in enterprise or campus applications using leaf-spine or top-of-rack (ToR) architecture.
Enhanced Manageability for Peace of Mind
For more complex network infrastructures, D-View 7, a centralized management platform, can be installed for in-depth network management and maintenance to optimize network availability, reliability, security, and resilience.
The DXS-3610 Layer 3 Stackable 10G/100G Managed OpenFlow Switches are compatible with SDN-enabled network architecture for deployment in high-performance datacenter, enterprise, and campus applications. Hot-swappable PSU and fan modules with load sharing capabilities significantly reduce network downtime and power consumption. Stackable up to 12 units and high port density makes the DXS-3610 the ideal choice for future-proofing your aggregation/core network.
High Availability
The DXS-3610 Series boasts high-performance 10G Ethernet switching capacity of up to 2.16 Tbps with forwarding rates of up to 1607 Mpps.
Hot-Swappable Redundancy
The DXS-3610 Series also features a modular fan back-up design, providing n+1 redundancy for the system. The modular power design allows either AC or DC power sources for maximum deployment flexibility. With dual power modules, the power load is distributed, extending the lifetime of the modules.
Robust and Versatile Stacking Capability
Stack up to 12 DXS-3610 switches with up to a total of 1200G (1.2T) stacking bandwidth. Perfect for small to medium-sized data centers in enterprise or campus applications using leaf-spine or top-of-rack (ToR) architecture.
Enhanced Manageability for Peace of Mind
For more complex network infrastructures, D-View 7, a centralized management platform, can be installed for in-depth network management and maintenance to optimize network availability, reliability, security, and resilience.
Key features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- ARP inspection: Yes
- Basic switching RJ-45 Ethernet ports type: No
- SFP+ module slots quantity: 48
- Console port: RJ-45
- QSFP28 ports quantity: 6
- USB 2.0 ports quantity: 1
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x
- 10G support: Yes
- Port mirroring: Yes
- Full duplex: Yes
- IP routing: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Spanning tree protocol: Yes
- Head-of-line (HOL) blocking: Yes
- VLAN support: Yes
- Virtual LAN features: MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN
- Switching capacity: 2211.84 Gbit/s
- Forwarding rate: 1607.04 Mpps
- MAC address table: 294912 entries
Specifications
Power
| Power supply included | Yes |
|---|---|
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 120.6 W |
| Power consumption (max) | 320.8 W |
Design
| Rack mounting | Yes |
|---|---|
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| Number of fans | 5 fan(s) |
| Electromagnetic compatibility | FCC, CE, C-Tick, IC, VCCI |
Network
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x |
|---|---|
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN |
Security
| DHCP features | DHCP client, DHCP server, DHCP snooping |
|---|---|
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
Protocols
| Management protocols | SNMP v1/v2c/v3 |
|---|
Performance
| Physical stacking (units) | 12 |
|---|---|
| Virtual stacking (units) | 32 |
| Noise level | 79.4 dB |
| Mean time between failures (MTBF) | 94262 h |
Certificates
| Certification | CB, cUL, LVD |
|---|
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
Data transmission
| Switching capacity | 2211.84 Gbit/s |
|---|---|
| Forwarding rate | 1607.04 Mpps |
| MAC address table | 294912 entries |
| Number of queues | 8 |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9436 |
| Packet buffer memory | 32 MB |
Multicast features
| Multicast support | Yes |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports type | No |
|---|---|
| SFP+ module slots quantity | 48 |
| Console port | RJ-45 |
| QSFP28 ports quantity | 6 |
| USB 2.0 ports quantity | 1 |
Management features
| Switch type | Managed |
|---|---|
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
Weight & dimensions
| Width | 441 mm |
|---|---|
| Depth | 487.4 mm |
| Height | 43.5 mm |
| Weight | 9.8 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 1083 BTU/h |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
