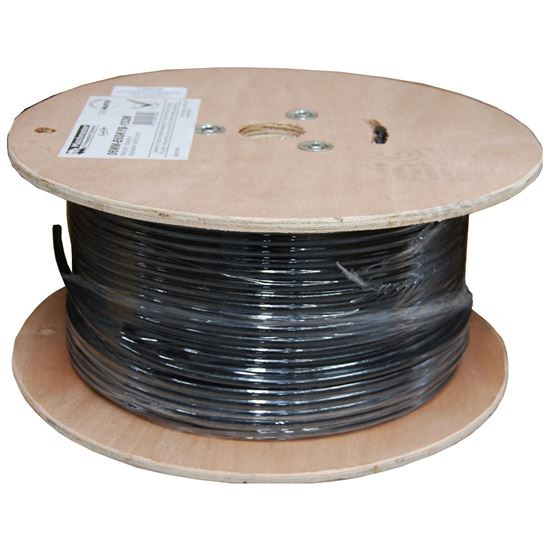

DYNAMIX 305m Cat6A U/FTP GEL UV Stabilised External Underground
305m Cat6A U/FTP GEL UV Stabilised External Underground Cable
- Brand: Dynamix
- Category: Ethernet Cables
- SKU: C-C6AS-EXTGEL
- MPN: C-C6AS-EXTGEL
DynamixDYNAMIX 305m Cat6A U/FTP GEL UV Stabilised External Underground
Overview
DYNAMIX 305m Cat6A U/FTP GEL UV Stabilised External Underground Cable.
Specifications
Spec
| Spec | PRODUCT SPECIFICATIONS |
|---|
Category
| Category | U/FTP-ZST CAT6A-4P-PE |
|---|
Test Standard
| Test Standard | ISO/IEC1180, TIA-568-C.2 |
|---|
Sheath - Material
| Sheath - Material | LDPE (complies RoHS) |
|---|
Sheath - Thickness
| Sheath - Thickness | 0.55 ± 0.05mm |
|---|
Conductor - Material
| Conductor - Material | SOLID-Bare Copper |
|---|
Insulation - Diameter
| Insulation - Diameter | 1.330±0.05mm |
|---|
Insulation - Material
| Insulation - Material | Skin-foam-skin PE |
|---|
Sheath - External O.D.
| Sheath - External O.D. | 7.4 ± 0.4mm |
|---|
Surface Printing - Colour
| Surface Printing - Colour | White |
|---|
Core Colour - A. White-Blue
| Core Colour - A. White-Blue | B. White-Orange |
|---|
Core Colour - C. White-Green
| Core Colour - C. White-Green | D. White-Brown |
|---|
Surface Printing - Letter Height
| Surface Printing - Letter Height | 3.0±0.3mm |
|---|
Conductor - Nom. O.D. (mm): 0.560
| Conductor - Nom. O.D. (mm): 0.560 | Up: +0.005Down: -0.005 |
|---|
Surface Printing - Print Error & Space
| Surface Printing - Print Error & Space | ≤±0.5%, 1m |
|---|
Inner Screening Material - Aluminum Foil
| Inner Screening Material - Aluminum Foil | Drain wire: Yes |
|---|
Out Jacket Physical Properties - After Aging
| Out Jacket Physical Properties - After Aging | Elongation (%): ≤300 |
|---|
Out Jacket Physical Properties - Before Aging
| Out Jacket Physical Properties - Before Aging | Tensile Strength (Mpa): ≤10.0Elongation (%): ≤350 |
|---|
Electrical Characteristics (20°C) - Delay Shew (ns/100m)
| Electrical Characteristics (20°C) - Delay Shew (ns/100m) | ≤45 |
|---|
Out Jacket Physical Properties - Aging Period (°C x hrs)
| Out Jacket Physical Properties - Aging Period (°C x hrs) | 100°C x 24h x 10d |
|---|
Out Jacket Physical Properties - Cold bend (-20±2°C×4h)
| Out Jacket Physical Properties - Cold bend (-20±2°C×4h) | No visible cracks |
|---|
Electrical Characteristics (20°C) - DC Resistance (Ω/100m) max
| Electrical Characteristics (20°C) - DC Resistance (Ω/100m) max | 9.38 |
|---|
Electrical Characteristics (20°C) - DC Conductor Resistance Unbalance (%) max
| Electrical Characteristics (20°C) - DC Conductor Resistance Unbalance (%) max | 5.0 |
|---|
Electrical Characteristics (20°C) - Unbalanced-to-ground capacitance (pf/100m) m
| Electrical Characteristics (20°C) - Unbalanced-to-ground capacitance (pf/100m) m | 330 |
|---|
$823.39inc GST
