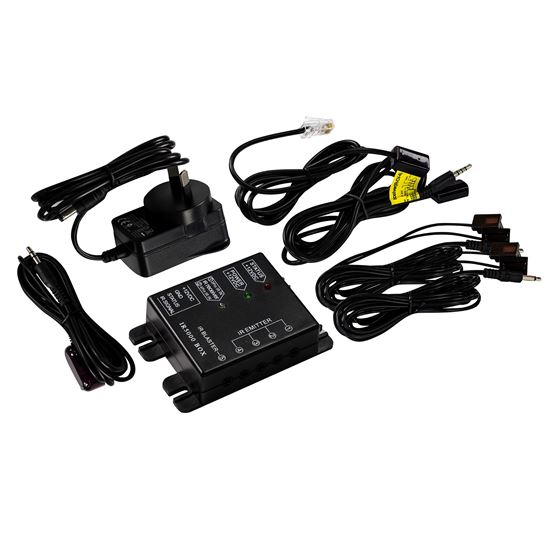

DYNAMIX 4-2 Hidden IR Distribution System. Kit includes 1x IR Box with RJ45 Port, 1x 1M RJ45 IR Receiver, 1x 2M IR Receiver, 2x Dual IR Emitter, 1x Power Adapter.
Specifications
Spec
Spec
IR Module
Input
Input
AC 100V ~ 240V
Output
Output
DC 12V/250mA
DC Plug
DC Plug
5.5 x 2.1mm
IR LEDs
IR LEDs
2x IR emitter LEDs
IR Input
IR Input
1x 3.5mm jack connector for IRCV-3 receiver (3 conductor plug)1x 3.5mm jack connector for IR-CV-4 receiver (4 conductor plug)
RJ45 Port
RJ45 Port
Extra RJ45 IR Receiver can be connected to this input or you can use the cat cable together with the RJ45 IR Receiver to extend the IR signal reception
Connection
Connection
3.5m jack plug (mono)
Dimensions
Dimensions
55 x 85 x 23mm
Cable Length
Cable Length
1x 2m (IR-CV-4), 1x 1m (IR-CV-5) extendable up to max 100m
DC Plug (30)
DC Plug (30)
IR Blaster
IR LEDs (32)
IR LEDs (32)
1x IR blaster LED
Power Supply
Power Supply
DC 12V/250mA, supplied from connected IR6000 box
Dimensions (9)
Dimensions (9)
IR Receiver (IR-CV-4, IR-CV-5)
Connection (31)
Connection (31)
2.5mm jack plug (mono)
Dimensions (17)
Dimensions (17)
25 x 14 x 9mm
Dimensions (18)
Dimensions (18)
IR Emitter (IR-EM-3)
Dimensions (25)
Dimensions (25)
22 x 16 x 8mm
Dimensions (26)
Dimensions (26)
Power Adapter
Frequency Range
Frequency Range
25 ~ 60KHz
Peak Wavelength
Peak Wavelength
940nm
Power Indication
Power Indication
Red indication LED
Cable Length (21)
Cable Length (21)
2m
Cable Length (33)
Cable Length (33)
2m
IR Emitter Output
IR Emitter Output
4x 3.5mm jack connector for IR-EM-3 Emitter1x 2.5mm jack connector for IR-Blaster
Status Indication
Status Indication
Green LED for On/Off indication
IR Reception Angle
IR Reception Angle
90º (+45º/-45º from center)
IR Reception Range
IR Reception Range
±10m
Forward Voltage Max
Forward Voltage Max
1.5V
IR Signal Indication
IR Signal Indication
Blue indication LED
Peak Forward Current
Peak Forward Current
100mA
IR Transmitting Angle
IR Transmitting Angle
90° (+45°/-45° from center)
IR Transmitting Range
IR Transmitting Range
1m
IR Receiver Connection
IR Receiver Connection
1x 3.5mm jack plug (4 conductor plug), 1x RJ45 connector
