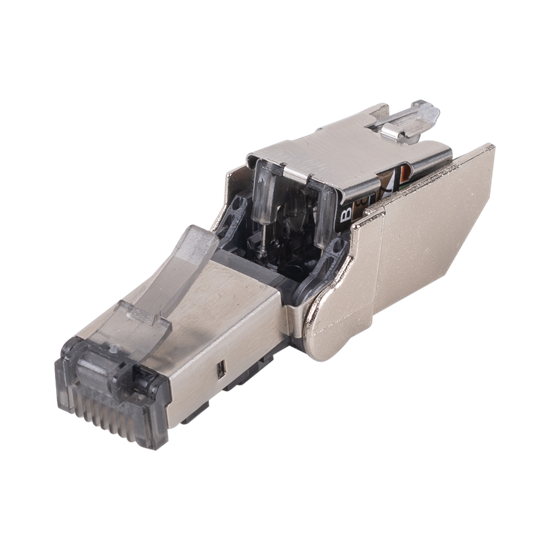

DYNAMIX RJ45 STP Cat6A 10G Tooless Flexible Plug. Works with both
RJ45 STP Cat6A 10G Tooless Flexible Plug. Works w/ both Solid & Stranded Conductors
- Brand: Dynamix
- Category: Tools & Installation
- SKU: RJ-TL6ASTP
- MPN: RJ-TL6ASTP
DynamixDYNAMIX RJ45 STP Cat6A 10G Tooless Flexible Plug. Works with both
Overview
DYNAMIX RJ45 STP Cat6A 10G Tooless Flexible Plug. Works with both solid and stranded conductors 22~26AWG
Specifications
Shield
| Shield | Front SUS301, Back Zamac |
|---|
Housing
| Housing | High Impact Thermal Plastic UL94-V0 |
|---|
Contacts
| Contacts | Gold Plating in Localized Area Over Nickel Undercoat |
|---|
IDC Terminal
| IDC Terminal | Phosphor Bronze with Nickel Plating |
|---|
Body Bending Cycle
| Body Bending Cycle | 50 Times Max. |
|---|
Wiring Colour Code
| Wiring Colour Code | T568A & T568B |
|---|
Acceptable Cable OD
| Acceptable Cable OD | 4 - 8mm |
|---|
Conductor Acceptance
| Conductor Acceptance | 22 ~ 26AWG Solid Conductor with Insulation OD 0.9mm~ 1.27mm |
|---|
Plug Insertion Cycle
| Plug Insertion Cycle | 750 Times Max. |
|---|
IDC Re-Termination Cycle
| IDC Re-Termination Cycle | 20 Times Max. |
|---|
Plug Interface Dimensions
| Plug Interface Dimensions | Confrom to FCC Part 68 Subpart F |
|---|
$39.09inc GST
