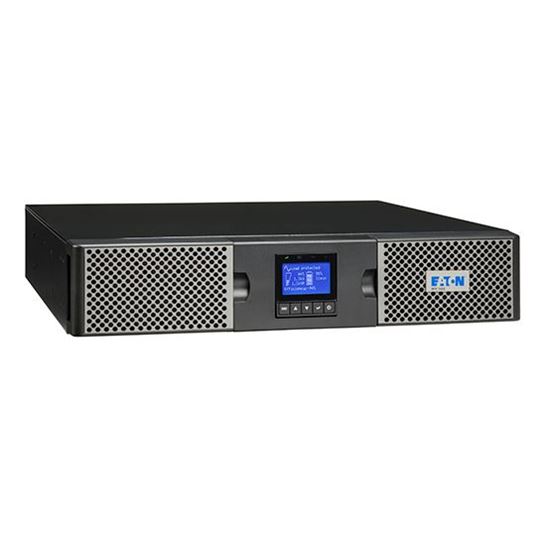

EATON 9PX 2200VA 3U Rack/Tower 16A Input, 230V (Rail Kit Include) 3-5 days lead time if out of stock
Specifications
EMC
EMC
IEC/EN 62040 -2, FCC Class B, CISPR22 Class B
Input
Input
1 IEC C20 (16A) or terminal block on HotSwap MBP HW (Hard-Wired)
Format
Format
RT3U
Safety
Safety
IEC/EN 62040-1, UL 1778, CSA 22.2
Outputs
Outputs
8 IEC C13 (10A) sockets + 2 IEC C19 (16A) sockets
Warranty
Warranty
3 years on electronics, 2 years on batteries
Efficiency
Efficiency
up to 94% in online mode (up to 98% in Hi-efficiency mode)
Format (2)
Format (2)
Electrical Characteristics
Technology
Technology
On-line double conversion with Power Factor Correction (PFC) system
Noise Level
Noise Level
40dB
Rating (VA/W)
Rating (VA/W)
2200VA/2200W
Efficiency (8)
Efficiency (8)
Connections
Nominal voltage
Nominal voltage
200/208/220/230/240V
UPS Weight (kg)
UPS Weight (kg)
24.5
Communication ports
Communication ports
1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay
Input voltage range
Input voltage range
176-276V without derating (up to 100-276V with derating)
UPS Dimensions (mm)
UPS Dimensions (mm)
130x440x485
Approvals & markings
Approvals & markings
CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star
Communications slots
Communications slots
1 slot for Network-MS card (included in netpack versions), ModBus-MS or Relay-MS cards
UPS Weight (kg) (25)
UPS Weight (kg) (25)
Customer Service & Support
Input frequency range
Input frequency range
40-70Hz, 50/60Hz auto selection, frequency converter mode
Operating temperature
Operating temperature
0 to 40°C
Switched outlet group
Switched outlet group
2 outlet groups
Approvals & markings (22)
Approvals & markings (22)
Dimensions W x D x H / Weight
Communications slots (16)
Communications slots (16)
Operating conditions, standards and approvals
Outputs on HotSwap models
Outputs on HotSwap models
4 FR/Schuko sockets or 3 BS sockets or 6 IEC 10A sockets or terminal blocks (HW version)
