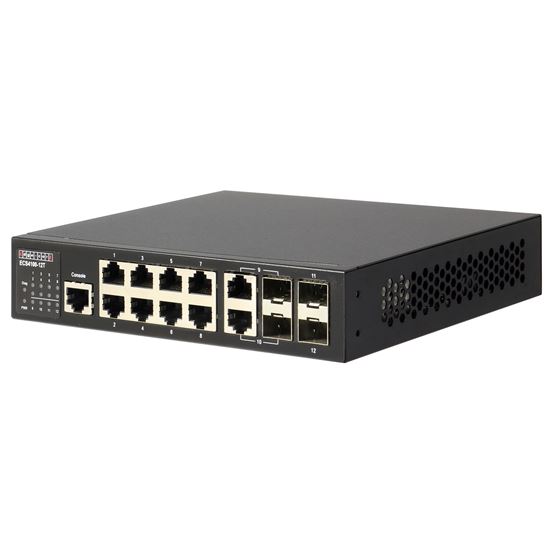

EDGECORE 8 Port + 2 Combo + 2 SFP Gigabit Managed Switch.
8 Port + 2 Combo + 2 SFP Gigabit Managed Switch
- Brand: Edgecore
- Category: Networking
- SKU: ECS4100-12T
- MPN: ECS4100-12T
EdgecoreEDGECORE 8 Port + 2 Combo + 2 SFP Gigabit Managed Switch.
Overview
EDGECORE 8 Port + 2 Combo + 2 SFP Gigabit Managed Switch. 2 Combo Gig + 2 100/1000 SFP ports. 1x RJ45 Console port. Comprehensive QoS, Enhanced Security with Port security limits.
Specifications
Mechanical - Acoustics
| Mechanical - Acoustics | 44dB (A) |
|---|
Port - RJ45 Console Port
| Port - RJ45 Console Port | 1 |
|---|
Port - 100/1000 SFP Ports
| Port - 100/1000 SFP Ports | 2 |
|---|
Performance - Flash Memory
| Performance - Flash Memory | 32MB |
|---|
Performance - Jumbo Frames
| Performance - Jumbo Frames | 9KB |
|---|
Certification - FCC Class A
| Certification - FCC Class A | Yes |
|---|
Performance - Forwarding Rate
| Performance - Forwarding Rate | 17.85Mpps |
|---|
Port - 10/100/1000 Combo Ports
| Port - 10/100/1000 Combo Ports | 2 |
|---|
Performance - Switching Capacity
| Performance - Switching Capacity | 24Gpbs |
|---|
Environmental - Storage Temperature
| Environmental - Storage Temperature | -40ºC~70ºC |
|---|
Mechanical - Dimensions (W x D x H)
| Mechanical - Dimensions (W x D x H) | 18 x 16.4 x 3.75cm |
|---|
Port - SFP+ 10 Gigabit Uplink Ports
| Port - SFP+ 10 Gigabit Uplink Ports | 0 |
|---|
Performance - MAC Address Table Size
| Performance - MAC Address Table Size | 16K |
|---|
Port - RJ45 10/100/1000 BASE-T Ports
| Port - RJ45 10/100/1000 BASE-T Ports | 8 |
|---|
Power Supply - 100V~240V AC, 50/60Hz
| Power Supply - 100V~240V AC, 50/60Hz | Yes |
|---|
Certification - Safety Compliance: CB
| Certification - Safety Compliance: CB | Yes |
|---|
Certification - Safety Compliance: UL
| Certification - Safety Compliance: UL | Yes |
|---|
Environmental - Operating Temperature
| Environmental - Operating Temperature | 0ºC~50ºC |
|---|
Port - GE out-of-band Management Port
| Port - GE out-of-band Management Port | No |
|---|
Performance - Auto-negotiation, Auto-MDI/MDIX
| Performance - Auto-negotiation, Auto-MDI/MDIX | Yes |
|---|
Environmental - Storage Humidity (non-condensing)
| Environmental - Storage Humidity (non-condensing) | 10%~90% |
|---|
Environmental - Operating Humidity (non-condensing)
| Environmental - Operating Humidity (non-condensing) | 10%~90% |
|---|
Power Supply - Max System Power Consumption (Watts)
| Power Supply - Max System Power Consumption (Watts) | 16W |
|---|
Environmental - Environmental Regulation Compliance: RoHS
| Environmental - Environmental Regulation Compliance: RoHS | Yes |
|---|
Environmental - Environmental Regulation Compliance: WEEE
| Environmental - Environmental Regulation Compliance: WEEE | Yes |
|---|
$525.54inc GST
