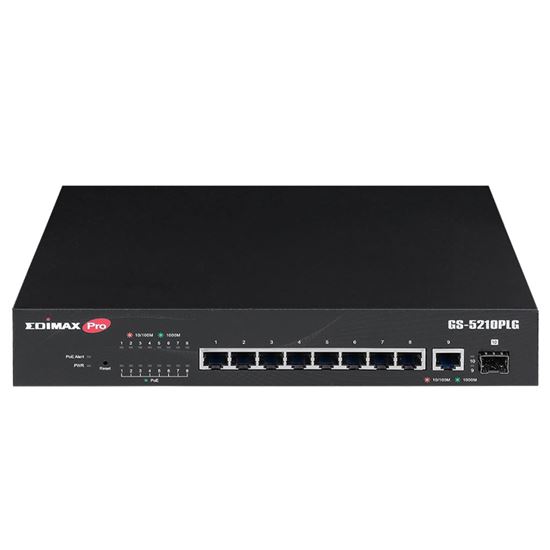

EDIMAX 10 Port Gigabit PoE+ Web Smart Switch with 1x SFP Port.

Our SKU
MPN
Rating: No reviews yet

EDIMAX 10 Port Gigabit PoE+ Web Smart Switch with 1x SFP Port. — Edimax

Overview

EDIMAX 10 Port Gigabit PoE+ Web Smart Switch with 1x SFP Port. Supports PoE+ up to 30W. Long Range PoE up to 200m. Powered Device Auto Detection. Supports 20Gbps Switching Capacity. Rack Mount

At a glance

Fan	Fanless
Spec	HARDWARE
VLAN	Up to 10 VLANs 802.1Q tag-based VLAN
Ports	8 x RJ45 PoE+ 10/100/1000Base-T Gigabit port1 x RJ45 10/100/1000Base-T Gigabit uplink port1 x SFP 1000Base-X Gigabit uplink port
Mirror	Port mirroring both on ingress and egress traffic
Weight	1.62kg (3.57lb)
Buttons	Reset button
Housing	Metal

All 37 specifications

Specifications

Fan

Fan	Fanless

Spec

Spec	HARDWARE

VLAN

VLAN	Up to 10 VLANs 802.1Q tag-based VLAN

Ports

Ports	8 x RJ45 PoE+ 10/100/1000Base-T Gigabit port1 x RJ45 10/100/1000Base-T Gigabit uplink port1 x SFP 1000Base-X Gigabit uplink port

Mirror

Mirror	Port mirroring both on ingress and egress traffic

Weight

Weight	1.62kg (3.57lb)

Buttons

Buttons	Reset button

Housing

Housing	Metal

Mounting

Mounting	Desktop / Rack-mount (Rack-mount kit included)

Security

Security	Broadcast storm control

Standard

Standard	IEEE 802.3af (PoE), IEEE 802.3at (PoE+)

Standards

Standards	IEEE 802.3 10BaseT EthernetIEEE 802.3u 100BaseTX Fast EthernetIEEE 802.3ab 1000BaseT Gigabit Ethernet IEEE 802.3x Full-duplex and Flow Control IEEE 802.3ad LACP IEEE 802.3az Energy Efficient EthernetIEEE 802.1Q VLANIEEE 802.1p Quality of Service (QoS)IEEE 802.3af Power Over Ethernet (PoE) IEEE 802.3at Power Over Ethernet Plus (PoE+)

Management

Management	PoE status, PoE on/off

MAC Address

MAC Address	4K

Power Input

Power Input	100-240V AC, 50-60 Hz, internal power supply

Weight (11)

Weight (11)	PERFORMANCE

Jumbo Frames

Jumbo Frames	9.2K Bytes

Power Output

Power Output	Up to 30W per port

IGMP Snooping

IGMP Snooping	IGMP v1/v2/v3 snoopingBlock unknown multicast trafficMulticast groups: 128

Port Trunking

Port Trunking	IEEE 802.3ad LACP

Buffery Memory

Buffery Memory	1.5Mb

Certifications

Certifications	FCC, CE,

LED Indicators

LED Indicators	Per Port: Link/Act, PoE: Act/Status, Per Unit: Power, PoE Alert

Pin Assignment

Pin Assignment	1/2(+), 3/6(-) End-Span (mode A)

PoE Long Range

PoE Long Range	Guaranteed PoE Long Range to 200 Meters (656 ft.) at 10Mbps

Management (32)

Management (32)	User Interface: Web-based managementUser Account: Login account configurationFirmware Upgrade: Firmware upgrade by WEBLoop Detection/Prevention

Management (33)

Management (33)	OTHERS

Switching Capacity

Switching Capacity	20Gbps

Total Power Budget

Total Power Budget	100W

Transmission Method

Transmission Method	Store and forward

Dimensions (L x W x H)

Dimensions (L x W x H)	265 (W) x 184 (D) x 44 (H) mm10.43 (W) x 7.24 (D) x 1.73 (H) in

Environmental Condition

Environmental Condition	Operating Temperature: 0~40°C (32~104°F)Storage Temperature: -40~70°C (-40~158°F)Operating Humidity: 10~90% (NonCondensing)Storage Humidity: 10~90% (NonCondensing

Quality of Service (QoS)

Quality of Service (QoS)	Port-based QoSIEEE802.1p QoS4 Priority QueuesScheduling algorithm

Power Backfeed Protection

Power Backfeed Protection	Built-in

Filtering / Forwarding Rates

Filtering / Forwarding Rates	Max. 14.88Mpps1000Mbps port - 1,488,000pps 100Mbps port - 148,800pps 10Mbps port - 14,880pps

Power Backfeed Protection (25)

Power Backfeed Protection (25)	SMART FEATURES

Filtering / Forwarding Rates (18)

Filtering / Forwarding Rates (18)	POWER OVER ETHERNET

Questions

$290.94inc GST
