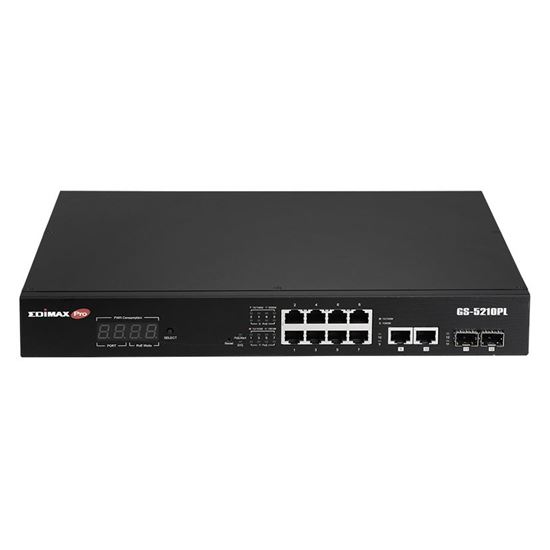

EDIMAX 12 Port Surveillance Long Range Gigabit PoE+ Web Smart Switch

Our SKU
MPN
Rating: No reviews yet

EDIMAX 12 Port Surveillance Long Range Gigabit PoE+ Web Smart Switch — Edimax

Overview

EDIMAX 12 Port Surveillance Long Range Gigabit PoE+ Web Smart Switch with 2 Gigabit RJ45 & 2 SFP Ports. Max Power Budget 110W. Supports PoE up to 200m. IEEE 802.3af/at PoE Compliant. IP Surveillance VLAN

At a glance

IPV6	IPv6 over Ethernet (RFC 2464)
VLAN	Up to 200 VLANs and 4096 VLAN IDs
Ports	10 x RJ45 10/100/1000Base-T Gigabit ports
Weight	2.3kg
Buttons	Reset button
Security	RADIUS
Standard	IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
IPV6 (46)	Dual-stack (RFC 4213)

All 90 specifications

Specifications

IPV6

IPV6	IPv6 over Ethernet (RFC 2464)

VLAN

VLAN	Up to 200 VLANs and 4096 VLAN IDs

Ports

Ports	10 x RJ45 10/100/1000Base-T Gigabit ports

Weight

Weight	2.3kg

Buttons

Buttons	Reset button

Security

Security	RADIUS

Standard

Standard	IEEE 802.3af (PoE), IEEE 802.3at (PoE+)

IPV6 (46)

IPV6 (46)	Dual-stack (RFC 4213)

IPV6 (47)

IPV6 (47)	ICMPv6 (RFC 4884)

IPV6 (48)

IPV6 (48)	Neighbor discovery (RFC 4861)

IPV6 (49)

IPV6 (49)	Auto configuration

IPV6 (50)

IPV6 (50)	Static IPv6 address and prefix length

IPV6 (51)

IPV6 (51)	Static IPv6 default gateway

IPV6 (52)

IPV6 (52)	IPv6 duplicate address detection

Ports (1)

Ports (1)	2 x SFP uplinks

Standards

Standards	IEEE 802.3 10BaseT Ethernet

VLAN (39)

VLAN (39)	802.1Q tag-based VLAN

VLAN (40)

VLAN (40)	Port-based VLAN

VLAN (41)

VLAN (41)	Surveillance VLAN

VLAN (42)

VLAN (42)	Voice VLAN

VLAN (43)

VLAN (43)	MAC VLAN

VLAN (44)

VLAN (44)	GVRP

Management

Management	PoE status, PoE on/off, PoE PD alive check, per port priority setting

Weight (9)

Weight (9)	PERFORMANCE

MAC Address

MAC Address	8K

Power Input

Power Input	100-240V AC, 50-60 Hz, internal power supply

Temperature

Temperature	Operating: 0 ~ 50℃

Jumbo Frames

Jumbo Frames	9K Bytes

Power Output

Power Output	Up to 30W per port

IGMP Snooping

IGMP Snooping	IGMP v1/v2/v3 snooping

Port Trunking

Port Trunking	IEEE 802.3ad LACP Trunk-Static trunk up to 8 trunk groups

Security (57)

Security (57)	AAA

Security (58)

Security (58)	Management Access

Security (59)

Security (59)	Authentication Manager

Security (60)

Security (60)	Port Security

Security (61)

Security (61)	Protected Port

Security (62)

Security (62)	Storm Control

Security (63)

Security (63)	DoS

Security (64)

Security (64)	Dynamic ARP Inspection

Security (65)

Security (65)	DHCP Snooping

Security (66)

Security (66)	IP Source Guard

Spanning Tree

Spanning Tree	IEEE 802.1d Spanning Tree Protocol (STP)

Certifications

Certifications	FCC Class A, CE, ONVIF Compliant

LED Indicators

LED Indicators	Per Port: Link/Act, PoE: Act/Status, Per Unit: Power

Pin Assignment

Pin Assignment	1/2(+), 3/6(-) End-Span (mode A)

PoE Long Range

PoE Long Range	Guaranteed PoE long range to 200 meters at 10Mbps

Port Mirroring

Port Mirroring	Port mirroring both on ingress and egress traffic

Standards (76)

Standards (76)	IEEE 802.3u 100BaseTX Fast Ethernet

Standards (77)

Standards (77)	IEEE 802.3ab 1000BaseT Gigabit Ethernet

Standards (78)

Standards (78)	IEEE 802.3z 1000BaseSX/LX

Standards (79)

Standards (79)	IEEE 802.3af Power over Ethernet (PoE)

Standards (80)

Standards (80)	IEEE 802.3at Power over Ethernet (PoE+)

Standards (81)

Standards (81)	IEEE 802.3x Full-duplex and flow control

Standards (82)

Standards (82)	IEEE 802.1p Quality of Service (QoS)

Standards (83)

Standards (83)	IEEE 802.1x Port-based Network Access Control(PNAC)

Standards (84)

Standards (84)	IEEE 802.1Q Virtual LANs VLANs

Standards (85)

Standards (85)	IEEE 802.1d Spanning Tree Protocol(STP)

Standards (86)

Standards (86)	IEEE 802.1w Rapid Spanning Tree Protocol(RSTP)

Standards (87)

Standards (87)	IEEE 802.3ad Link Aggregation Control Protocol (LACP)

Standards (88)

Standards (88)	IEEE 802.3az Energy Efficient Ethernet

Forwarding Rate

Forwarding Rate	17.8Mpps (64-byte package size)

Management (67)

Management (67)	User Interface: Web-based management

Management (68)

Management (68)	User Account: Login account configuration

Management (69)

Management (69)	Firmware Upgrade: Firmware upgrade by WEB

Management (70)

Management (70)	Syslog: Support event log, alarm log and security log

Temperature (72)

Temperature (72)	Storage: -40 ~ 70℃

Spanning Tree (37)

Spanning Tree (37)	IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)

Switching Capacity

Switching Capacity	24Gbps

Total Power Budget

Total Power Budget	110W

Transmission Method

Transmission Method	Store and forward

Class of Service (CoS)

Class of Service (CoS)	IEEE 802.1p class of service (SPQ, WRR)

Dimensions (L x W x H)

Dimensions (L x W x H)	330 × 230 × 44 mm

Quality of Service (QoS)

Quality of Service (QoS)	Rate limiting on packets sent and received by an interface

Humidity (Non-condensing)

Humidity (Non-condensing)	Operating: 10 ~ 90%

Power Backfeed Protection

Power Backfeed Protection	Built-in

Class of Service (CoS) (31)

Class of Service (CoS) (31)	Port-based CoS

Class of Service (CoS) (32)

Class of Service (CoS) (32)	IP TOS precedence

Class of Service (CoS) (33)

Class of Service (CoS) (33)	802.1p VLAN Information based CoS

Class of Service (CoS) (34)

Class of Service (CoS) (34)	DSCP based CoS

Class of Service (CoS) (35)

Class of Service (CoS) (35)	TCP/UDP Based CoS

Filtering / Forwarding Rates

Filtering / Forwarding Rates	1000Mbps port – 1,488,000pps

Quality of Service (QoS) (26)

Quality of Service (QoS) (26)	Eight queues on each port

Quality of Service (QoS) (27)

Quality of Service (QoS) (27)	WRR, SP, WRR+SP queue scheduling algorithms

Quality of Service (QoS) (28)

Quality of Service (QoS) (28)	Re-marking of the 802.1p priority and DSCP priority

Quality of Service (QoS) (29)

Quality of Service (QoS) (29)	Rate limiting in each queue and traffic shaping on ports

Humidity (Non-condensing) (74)

Humidity (Non-condensing) (74)	Storage: 10 ~ 90%

Power Backfeed Protection (24)

Power Backfeed Protection (24)	SMART FEATURES

Filtering / Forwarding Rates (15)

Filtering / Forwarding Rates (15)	100Mbps port - 148,800pps

Filtering / Forwarding Rates (16)

Filtering / Forwarding Rates (16)	10Mbps port - 14,880pps

Filtering / Forwarding Rates (17)

Filtering / Forwarding Rates (17)	POWER OVER ETHERNET
