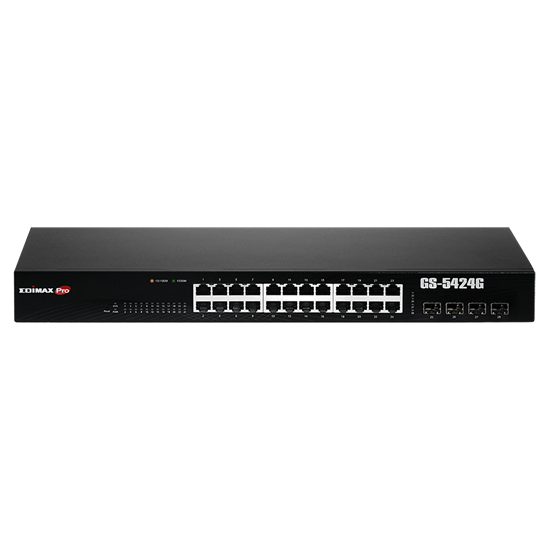

EDIMAX 24 Port Gigabit Long Range Web Smart Rack-mount Switch. With 4 SFP. Extended data delivery distance of up to 200m. Voice VLAN. DHCP Snooping. Array architecture.
IEEE 802.3 10BaseT EthernetIEEE 802.3u 100BaseTX Fast EthernetIEEE 802.3ab 1000BaseT Gigabit EthernetIEEE 802.3z 1000BaseSX/LXIEEE 802.3x Full-duplex and flow controlIEEE 802.1p Quality of Service (QoS)IEEE 802.1x Port-based Network Access Control(PNAC)IEEE 802.1Q Virtual LANs VLANsIEEE 802.1d Spanning Tree Protocol(STP)IEEE 802.1w Rapid Spanning Tree Protocol(RSTP)IEEE 802.3ad Link Aggregation Control Protocol (LACP)IEEE 802.3az Energy Efficient Ethernet
Long Range
Long Range
Enable long-range mode at 10Mbps for cable distance up to 200m
Management
Management
User Interface: Web-based managementUser Account: Login account configurationFirmware Upgrade: Firmware upgrade by WEBSyslog: Support event log, alarm log and security log
Weight (9)
Weight (9)
PERFORMANCE
MAC Address
MAC Address
8K
Power Input
Power Input
100V-240V AC, 50-60Hz, internal power supply
Temperature
Temperature
Operating: 0℃ ~ 40℃Storage: -40℃ ~ 70℃
Jumbo Frames
Jumbo Frames
9KB
Buffer Memory
Buffer Memory
1M bit
IGMP Snooping
IGMP Snooping
IGMP v1/v2/v3 snooping
Port Trunking
Port Trunking
IEEE 802.3ad LACP Trunk-Static trunk up to 8 trunk groups
Spanning Tree
Spanning Tree
IEEE 802.1d Spanning Tree Protocol (STP)IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
Certifications
Certifications
FCC Class A, CE
LED Indicators
LED Indicators
Per Port: Link/ActPer Unit: Power
Forwarding Rate
Forwarding Rate
35.7Mpps
Long Range (28)
Long Range (28)
ENVIRONMENT
Switching Capacity
Switching Capacity
56Gbps
Transmission Method
Transmission Method
Store and forward
Class of Service (CoS)
Class of Service (CoS)
IEEE 802.1p class of service (SPQ, WRR)Port-based CoSIP TOS precedence802.1p VLAN Information based CoSDSCP based CoSTCP/UDP Based CoS
Dimensions (L x W x H)
Dimensions (L x W x H)
441 × 197 × 45mm
Quality of Service (QoS)
Quality of Service (QoS)
Rate limiting on packets sent and received by an interfaceEight queues on each portWRR, SP, WRR+SP queue scheduling algorithmsRe-marking of the 802.1p priority and DSCP priorityRate limiting in each queue and traffic shaping on ports
Humidity (Non-condensing)
Humidity (Non-condensing)
Operating: 10% ~ 90%Storage: 10% ~ 90%
Filtering/Forwarding Rates
Filtering/Forwarding Rates
1000Mbps port – 1,488,000pps100Mbps port - 148,800pps10Mbps port - 14,880pps
