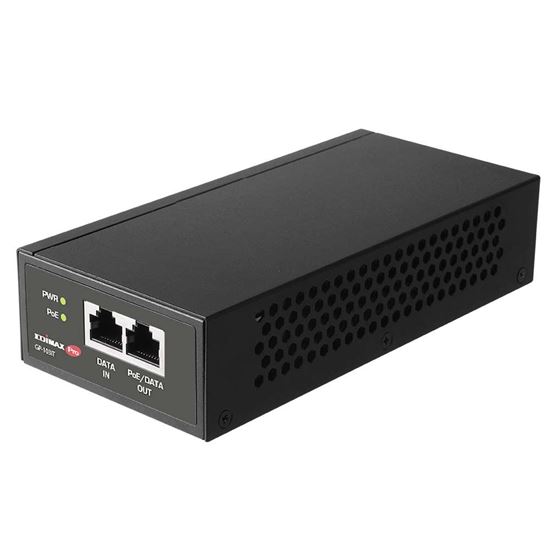

EDIMAX 90W Gigabit PoE++ Injector. Delivers Power & Data up to 100m. Easy Plug & Play. Built-in Short Circuit Protection. Wall-mount & Metal Housing.
Specifications
Fan
Fan
Fanless
Spec
Spec
SPECIFICATIONS
Ports
Ports
• 1 x RJ-45 10/100/1000Base-T Input Port • 1 x RJ-45 10/100/1000Base-T PoE Output Port
Weight
Weight
589g
Housing
Housing
Metal
Mounting
Mounting
Wall-mount
Spec (1)
Spec (1)
HARDWARE
Standard
Standard
IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt
Dimensions
Dimensions
73(W) x 154(D) x 36(H) mm
Power Input
Power Input
100-240V AC, 50-60Hz, 1.5A
Weight (11)
Weight (11)
POWER OVER ETHERNET
Power Budget
Power Budget
90Watt
Certification
Certification
CE, FCC
Standard (19)
Standard (19)
IEEE 802.3 10BaseT Ethernet IEEE 802.3u 100BaseTX Fast Ethernet IEEE 802.3ab 1000BaseT Gigabit Ethernet IEEE 802.3af Power Over Ethernet (PoE) IEEE 802.3at Power Over Ethernet Plus (PoE+) IEEE 802.3bt 4-Pair Power Over Ethernet Type 4 (PoE++)
LED Indicators
LED Indicators
AC Power (PWR) PoE Power
Pin Assignment
Pin Assignment
1/2,3/6 for IEEE802.3at/af 1/2,3/6 and 4/5,7/8 for 90W PoE++ power
