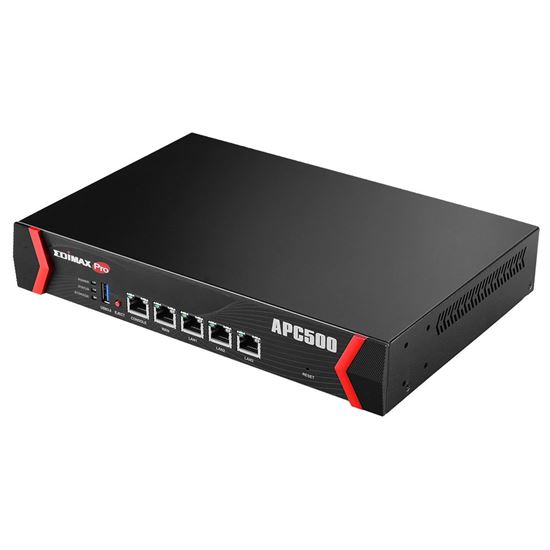

EDIMAX Wireless AP Controller. Scalable architecture. Centralized

SKU: CNZ-CD-004306
MPN: APC500
Rating: No reviews yet

EDIMAX Wireless AP Controller. Scalable architecture. Centralized — Edimax

Overview

EDIMAX Wireless AP Controller. Scalable architecture. Centralized management. Guest access and captive portal. Supports Edimax PRO CAP and WAP model AP''s.

Specifications

H/W

H/W	Standalone

LAN

LAN	Giga x3

Spec

Spec	Specifications

Flash

Flash	8GB for log storage

Power

Power	DC: 12V/1.5A

Reset

Reset	Yes

Cables

Cables	Ethernet CableConsole Cable

Weight

Weight	1030g

Console

Console	RJ45

Housing

Housing	Metal Case

License

License	Free

Segment

Segment	Middle

Mounting

Mounting	Rack/Desk/Wall-Mount

Spec (1)

Spec (1)	Hardware

AP Groups

AP Groups	32

Active AP

Active AP	32

Guest Log

Guest Log	Yes

Dimensions

Dimensions	256(L) x 178(W) x 44(H)mm

WLAN SSIDs

WLAN SSIDs	150

AP Planning

AP Planning	Yes

WAN (LAN 0)

WAN (LAN 0)	Giga x1

WLAN Groups

WLAN Groups	32

Housing (19)

Housing (19)	Management

Guest Account

Guest Account	Yes

MAC Filtering

MAC Filtering	Yes

Power Adapter

Power Adapter	12V / 1.5A Power Adapter

RADIUS Groups

RADIUS Groups	32

Security Lock

Security Lock	Kensington lock & U-Bar lock supported

LED Indicators

LED Indicators	System Power Storage Link/ACT

RADIUS Accounts

RADIUS Accounts	512

Mounting Bracket

Mounting Bracket	Rack-Mount Bracket KitWall-Mount Kit

Ping/Trace Route

Ping/Trace Route	Yes

WDS between AP's

WDS between AP's	Yes

AP Load Balancing

AP Load Balancing	Yes

L2 Auto-Discovery

L2 Auto-Discovery	Yes

Managed IP Device

Managed IP Device	Yes

RADIUS Accounting

RADIUS Accounting	Yes

Google Map Support

Google Map Support	Yes

Rogue AP Detection

Rogue AP Detection	Yes

Traffic Statistics

Traffic Statistics	Network Traffic/CPU Loading/Memory Usage

Guest Network SSIDS

Guest Network SSIDS	100

Access Control Groups

Access Control Groups	32

Client RSSI Threshold

Client RSSI Threshold	Yes

Ping/Trace Route (50)

Ping/Trace Route (50)	Physical

RADIUS Authentication

RADIUS Authentication	Yes

Wireless L2 Isolation

Wireless L2 Isolation	Yes

Locate AP (Buzzer/LED)

Locate AP (Buzzer/LED)	Yes

Managed Edimax Pro AP#

Managed Edimax Pro AP#	32

RADIUS Accounting (45)

RADIUS Accounting (45)	Wireless QoS

Google Map Support (31)

Google Map Support (31)	Radio Resource Management

Environmental Conditions

Environmental Conditions	Operating Temperature: 0°C~50°C (32°F-122°F)Operating Humidity: 90% max.

Guest Network SSIDS (62)

Guest Network SSIDS (62)	Package Content

Dynamic Channel Selection

Dynamic Channel Selection	Yes

Multiple Firmware Upgrade

Multiple Firmware Upgrade	Yes

Blocking Intra-BSS Traffic

Blocking Intra-BSS Traffic	Yes

Wireless L2 Isolation (40)

Wireless L2 Isolation (40)	Access Control

Multiple Firmware Upgrade (25)

Multiple Firmware Upgrade (25)	Deployment

Auto Pilot (Auto Channel/Power)

Auto Pilot (Auto Channel/Power)	Yes

Access Control (White-Black List)

Access Control (White-Black List)	512

Power Consumption (Full Loading)

Power Consumption (Full Loading)	8W

Auto Pilot (Auto Channel/Power) (35)

Auto Pilot (Auto Channel/Power) (35)	Security

Captive Portal (Internal & External)

Captive Portal (Internal & External)	Yes

Primary/Secondary Controller Support

Primary/Secondary Controller Support	Yes

Primary/Secondary Controller Support (52)

Primary/Secondary Controller Support (52)	Software Function Items

WLAN Station Bandwidth Limiting(Per-SSID)

WLAN Station Bandwidth Limiting(Per-SSID)	Yes

WLAN Station Bandwidth Limiting(Per-SSID) (48)

WLAN Station Bandwidth Limiting(Per-SSID) (48)	Diagnostic Tool

Questions

$137.99inc GST
