Kingston Technology KSM64R52BD4-96MC memory module 96 GB 1 x 96 GB…

Our SKU
MPN
Barcode
Rating: No reviews yet

KINGSTON 64GB DDR5-6400MT/s ECC Reg CL52 DIMM 2Rx — KINGSTON

Overview

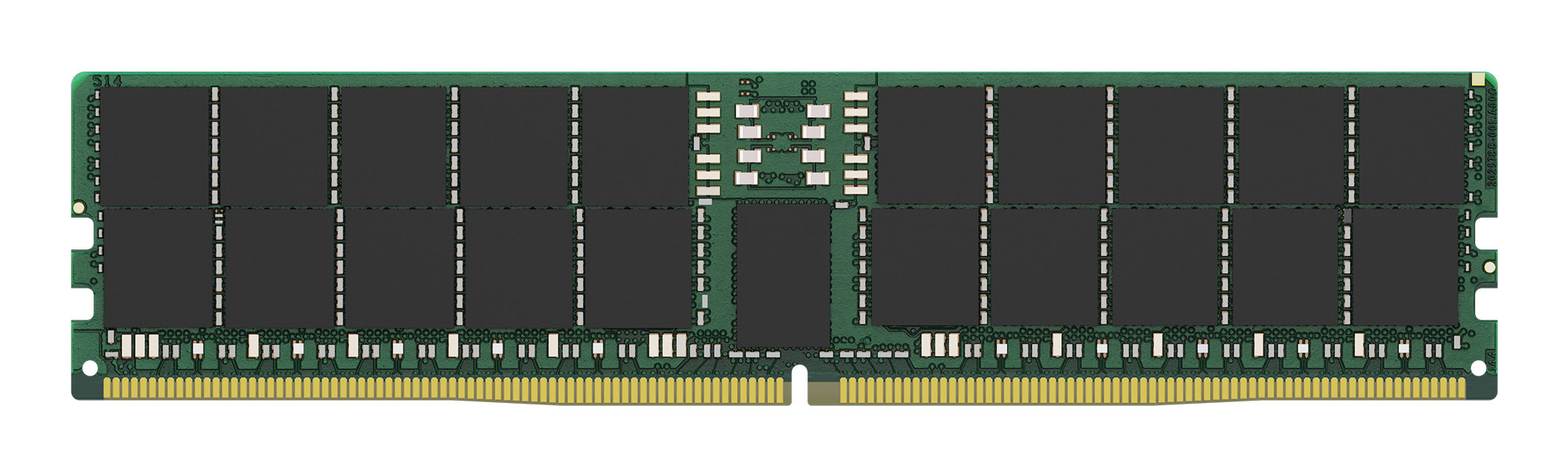

Kingston's KSM64R52BD4-96MC is a 12G x 80-bit (96GB) DDR5-6400 CL52 SDRAM (Synchronous DRAM), 2Rx4, ECC, memory module, based on forty 6G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

Key features

On-Die ECC: Yes
CAS latency: 52
Internal memory: 96 GB
Memory layout (modules x size): 1 x 96 GB
Internal memory type: DDR5
Memory data transfer rate: 6400 MT/s
Component for: Server
Memory form factor: 288-pin DIMM
ECC: Yes
Buffered memory type: Registered (buffered)
Memory ranking: 2
Memory voltage: 1.1 V
Row cycle time: 48 ns
Refresh row cycle time: 410 ns
Row active time: 32 ns
Row Precharge Time (TRP): 16
JEDEC standard: Yes
Operating temperature (T-T): 0 - 95 °C
Operating relative humidity (H-H): -55 - 100%
Compliance certificates: RoHS
Height: 31.2 mm
Doesn't contain: Halogen

At a glance

On-Die ECC	Yes
CAS latency	52
Internal memory	96 GB
Memory layout (modules x size)	1 x 96 GB
Internal memory type	DDR5
Memory data transfer rate	6400 MT/s
Component for	Server
Memory form factor	288-pin DIMM

All 22 specifications

Specifications

Features

On-Die ECC	Yes
CAS latency	52
Internal memory	96 GB
Memory layout (modules x size)	1 x 96 GB
Internal memory type	DDR5
Memory data transfer rate	6400 MT/s
Component for	Server
Memory form factor	288-pin DIMM
ECC	Yes
Buffered memory type	Registered (buffered)
Memory ranking	2
Memory voltage	1.1 V
Row cycle time	48 ns
Refresh row cycle time	410 ns
Row active time	32 ns
Row Precharge Time (TRP)	16
JEDEC standard	Yes

Other features

Doesn't contain	Halogen

Sustainability

Compliance certificates	RoHS

Weight & dimensions

Height	31.2 mm

Operational conditions

Operating temperature (T-T)	0 - 95 °C
Operating relative humidity (H-H)	-55 - 100%

Questions

$8,553.69inc GST
